Name:CPD series 1-3T Electric Forklift (DC)
Model:1-3T
Product Introduction:DC series with electric control system produced by American GE company, characterized by stepless speed adjustment, reliability, electricity saving, sensitive, small heating and high efficiency, having function of brake regeneration, heat protection, too low battery capacity protection and instrument automatic testing trouble.

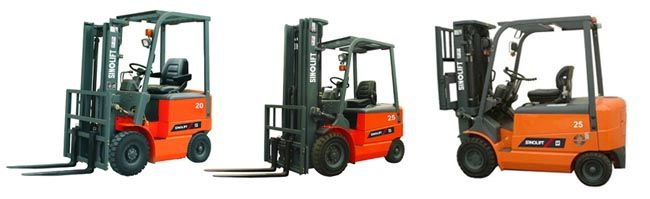

1-3T DC 4-wheel Electric Forklift Truck



# Arc streamline body, beautiful., wide visual view ,low center of gravity, safety and high reliability.



# DC series with electric control system produced by American GE company, characterized by stepless speed adjustment, reliability, electricity saving, sensitive, small heating and high efficiency, having function of brake regeneration, heat protection, too low battery capacity protection and instrument automatic testing trouble.



# Electric control system is fitted inside the balance weight, good heat conduction efficiency, ,portable opening of back cover, easy to maintenance and service.



# Fully imported dua pedal accelerator, small and flexible steering wheel, big capacity battery and rubber handle.



# The lifting motor is arranged in the side of the frame, easy to maintenance and service.



# Adjustable driver’s parts meet requirement of the human body engineering, low noise, no pollution and environmental protection.




DC 1.0-3.0T Electric forklift trucks



-          GE traveling electronic controller.

-          Concept of using ergonomic seat design, more comfortable and reliable.

-          Suspended type brake device

-          Multi-valve control system and energy-efficient hydraulic system.

-          Varied large capacity battery options.

-          Reliable separately excited motor.



Specifications of 4-wheel DC 1.0-3.0T Electric Forklift
General Manufacturer SINOLIFT DC 1.0T-3.0T Electric Forklift
Model CPD10 CPD15 CPD20 CPD25 CPD30
Power type Battery Battery Battery Battery Battery
Rated capacity kg 1000 1500 2000 2500 3000
Load center mm 500 500 500 500 500

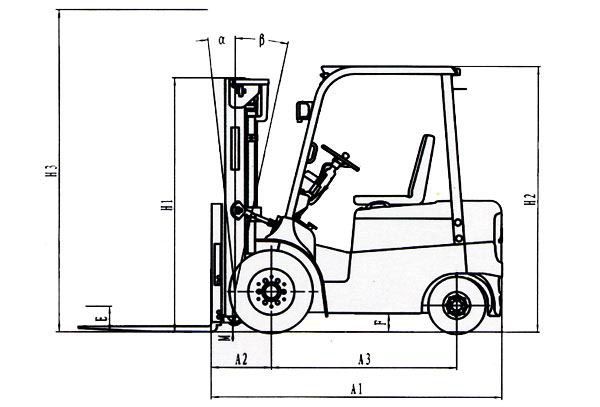

Dimensions Lift height                                                   H mm 3000 3000 3000 3000 3000
Free lift                                                      H4 mm 162 162 140 140 145
Fork size                                                L×W×T mm 920×120×40 920×120×40 1070×122×40 1070×122×45 1070×125×45
Fork outside spread (Min./Max.) mm 200/968 200/968 240/1020 240/1020 260/1100
Mast tilt angle (forward/backward)             α / β deg 6/12 6/12 6/12 6/12 6/10
Front ovehang                                             X mm 429 429 479 484 454
Overall dimensions Length to face of fork                 L1 mm 2056 2056 2349 2381 2481
Overall width                             B1 mm 1090 1090 1152 1152 1265
Mast lowered height                   H1 mm 1995 1995 2060 2060 2040
Mast extended height                 H3 mm 4042 4042 4040 4040 4273
Overhead guard height               H2 mm 2162 2162 2159 2159 2125
Turning radius                                              R mm 1820 1820 2050 2100 2230
Min. right angle aisle width                             X mm 1810 1810 2110 2150 2280

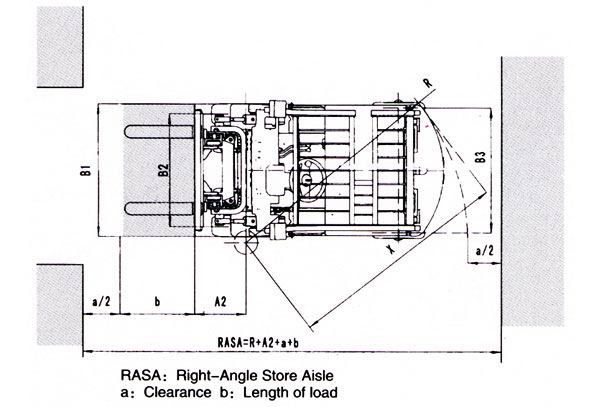

Min. right angle stacking aisle width              RASA mm 3370 3370 3715 3755 3915
Performance Travel speed (no load / full load) km/h 13.5/11.5 13/11 12.5/11 12.5/10.5 13/12
Lifting speed (no load / full load) mm/sec 400/300 390/285 400/260 390/250 380/250
Max. pull force (full load) KN 6 6.5 10 10 10
Services weight kg 2900 3120 4160 4360 4850
Max. gradebility % 15 15 10 10 10
Wheel & Tire Tyre Front 6.50-10-10PR 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 23×9-10
Rear 5.00-8-8PR 5.00-8-8PR 18×7-8-14PR 18×7-8-14PR 18×7-8
Tread Ront      B2 mm 890 890 960 960 1040
Rear      B3 mm 920 920 950 950 980
Wheelbase                                                  Y mm 1250 1250 1500 1500 1630
Ground clearance (no load / full load) Mast       M mm 110/95 110/95 120/100 120/100 105/85
Frame     F mm 105/95 105/95 120/100 120/100 140/120
Power & Control Battery  Model D-400(D-440/D-480 option) D-630 (D-700 option) D-500(600)
Voltage v/Ah 48/400 (440/480) 48/600(700) 80/500(600)
Battery Weight kg 740/(760/820) 1100(1180) 1390(1430)
Motor Drive motor Model XQ-5-3A1 XQ-5-7A3 XQ-10-1-T
Rated power kw/rpm 5.3(an hour)/1700 7.0(an hour)/1400 10.2/1500
Lifting Motor Model XQD-8.2-1 XQD-8.6-3D XQD-10-3C
Rated power kw/rpm 8.2(fifteen minutes)/1600 8.6(fifteen minutes)/1600 10/2000
Controller L American GE DC separate excitation controller
Remark:
1. Special lifting height available.
2. Attachment available.
3. The specification in the table are for standard models only . For further information ,please contact us.
