Home >> Products >> NPS series Stainless Steel Hand Pallet Truck

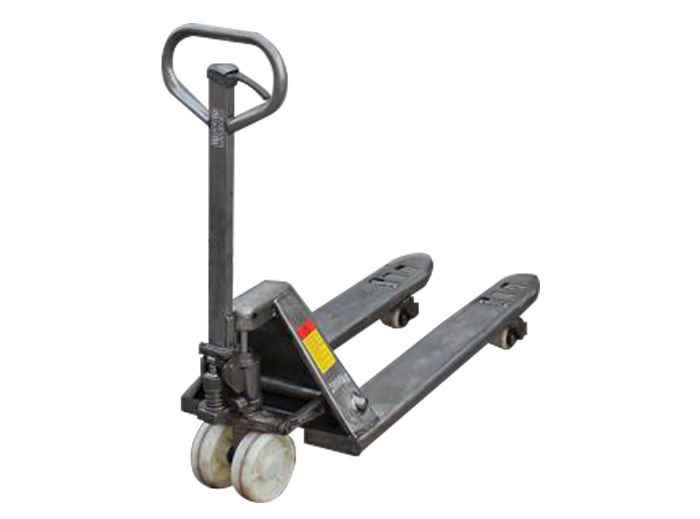

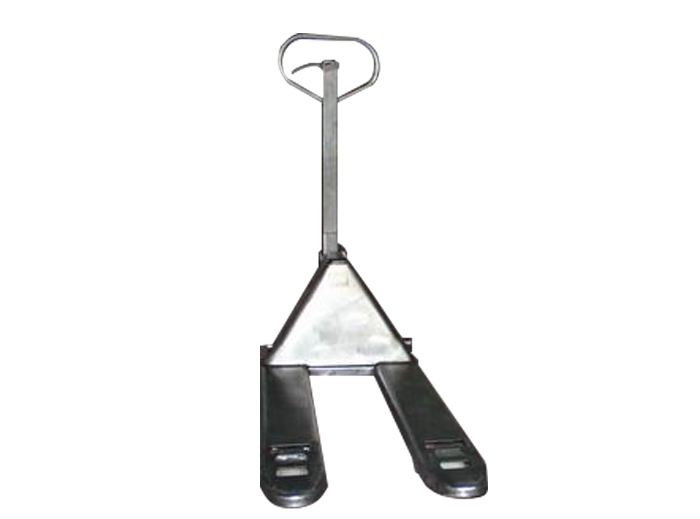

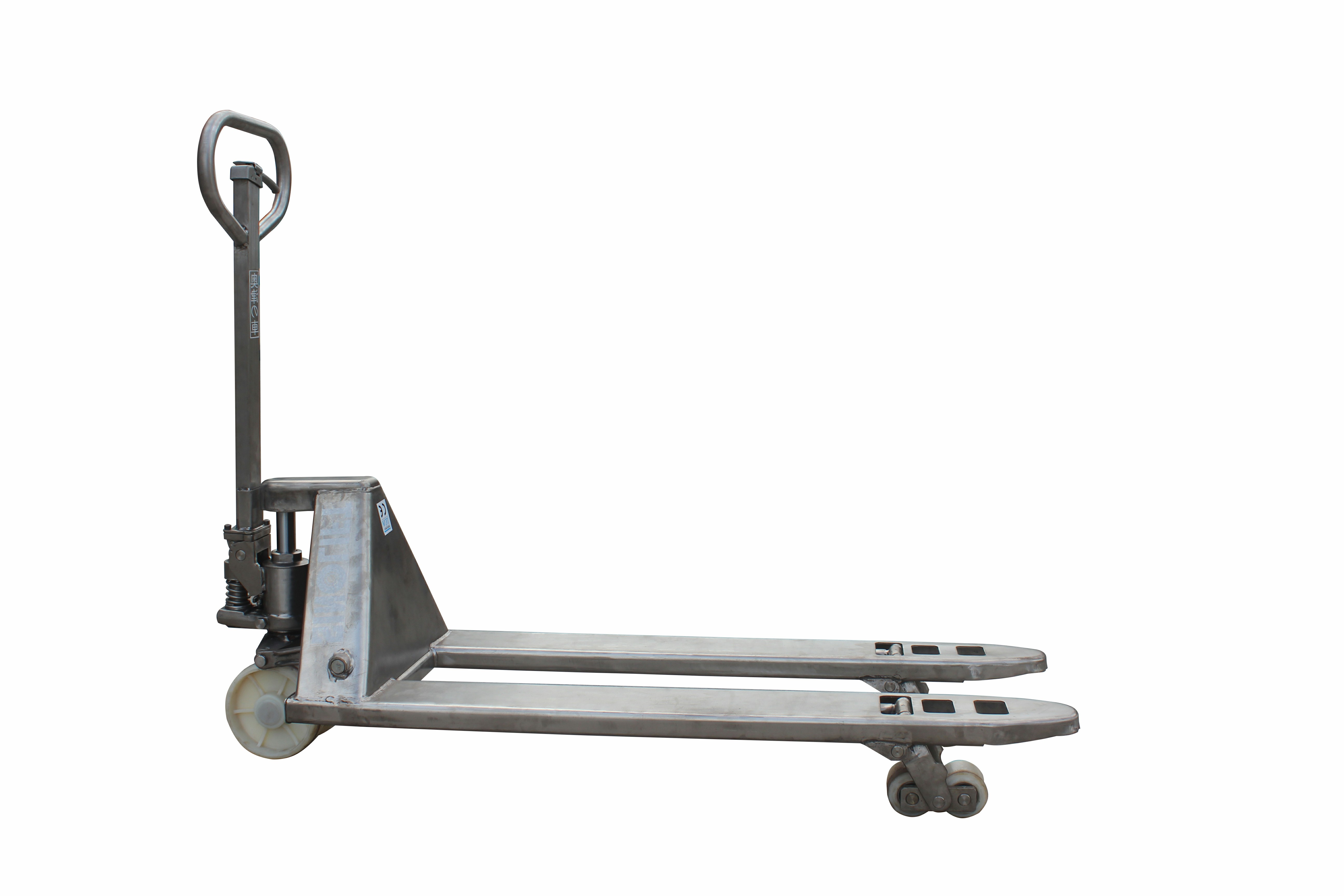

Name：NPS series Stainless Steel Hand Pallet Truck
Model：NPS
Product Introduction：Ideal for sanitary, pharmaceutical, medical, food and wet environments. Choose from a 304 stainless steel frame and forks or a fully 304 stainless steel pallet truck for extended life even in the harshest environments.

This stainless steel pallet truck is designed for use in environments such as clean rooms, laboratories, wash down and corrosive applications. This 100% stainless steel truck is ideal in industries such as food, fish, slaughter houses, salt water and chemical.

The entire frame and pump is manufactured from 304 stainless. Nylon wheels are standard to withstand water exposure. Wheel bearings are double shielded for protection.

1. Fitted with Stainless Steel Bearings, Fasteners, Pins, Chains & Retainers

2. Chrome Plated Hydraulic Lift Ram and Valve

3. Fully Galvanised Mainframe, Wheel Forks, Brackets, Push Rods and Handle

4. Fully Sealed Hydraulic Nickel Coated Pump (i.e. no atmospheric contaminates in hydraulics)

MODEL		NPS25-511	NPS25-712
Rated Capacity (Kg)		2500	2500
Width over forks (mm) *1	W1	520	685
Fork length (mm) *1	L1	1150	1220
Min. Fork Height (mm)	H2	80	80
Max. Fork Height (mm)	H1	200	200
Steering Wheel (mm)	A	200x62 NYLON	200x62 NYLON
Load Wheel (mm) *2	B	78x70 (Tandem)	78x70 (Tandem)
Weight (kg)		80	83
Under Clearance (mm)		40	40
Fork width (mm)	W2	150	150
Width inside forks (mm)		220	385
Strokes		12	12
Overall Height (mm)	C	1200	1200
Overall Length (mm)		1500	1570
Steer Angle		230 deg	230 deg
Drive Unit Length (mm)		370	370
