CQY Manual Reach Stacker

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

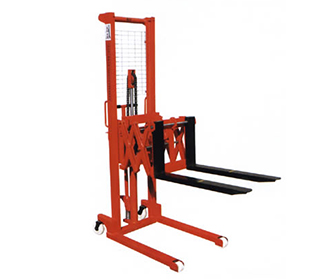

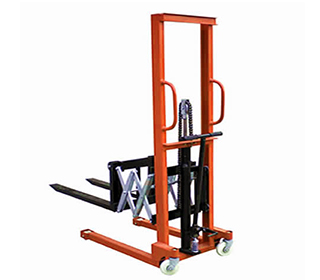

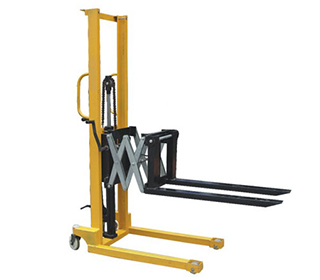

Name：CQY Manual Reach Stacker
Model：CQY
Product Introduction：The CQY0.5 is with spercial C type mast which is more stable and strong. Quick lift pump to save time and labor. Easy to operate controller.

Features:

1. The CQY0.5 is with spercial C type mast which is more stable and strong.

2. Quick lift pump to save time and labor.

3. Easy to operate controller.

Model		CQY0.5
Lifting capacity(㎏)		500
Max lifting height(mm)		1500
Fully loaded lifting speed(mm per stroke)		45
Fork height of lowered(mm)		90
Wheel(mm)	load wheel	Φ90
	steering wheel	Φ150
overall dimension(mm)	L	1335
	W	624
	H	1961
Fork fore-shift(mm)		300
Fork length(mm)		640
min turning radius(mm)		1250
Self weight(kg)		180
