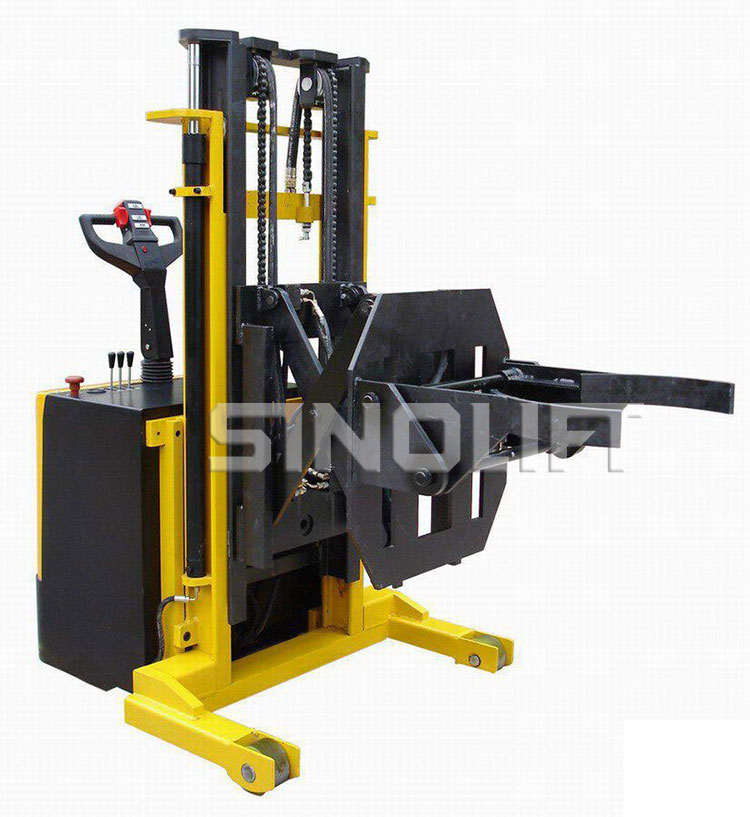

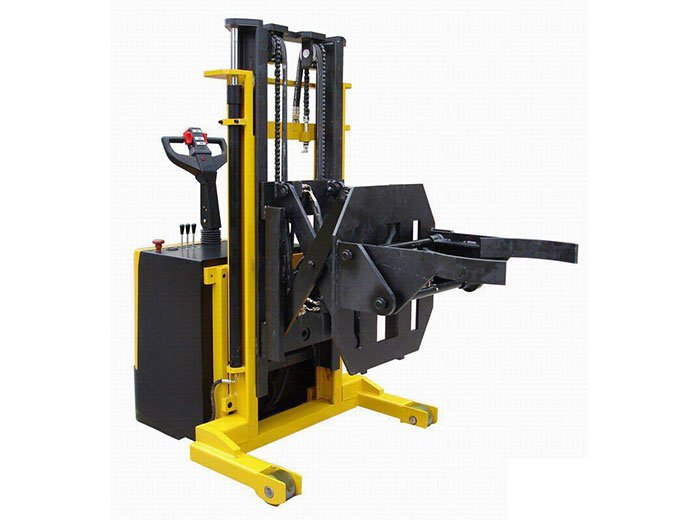

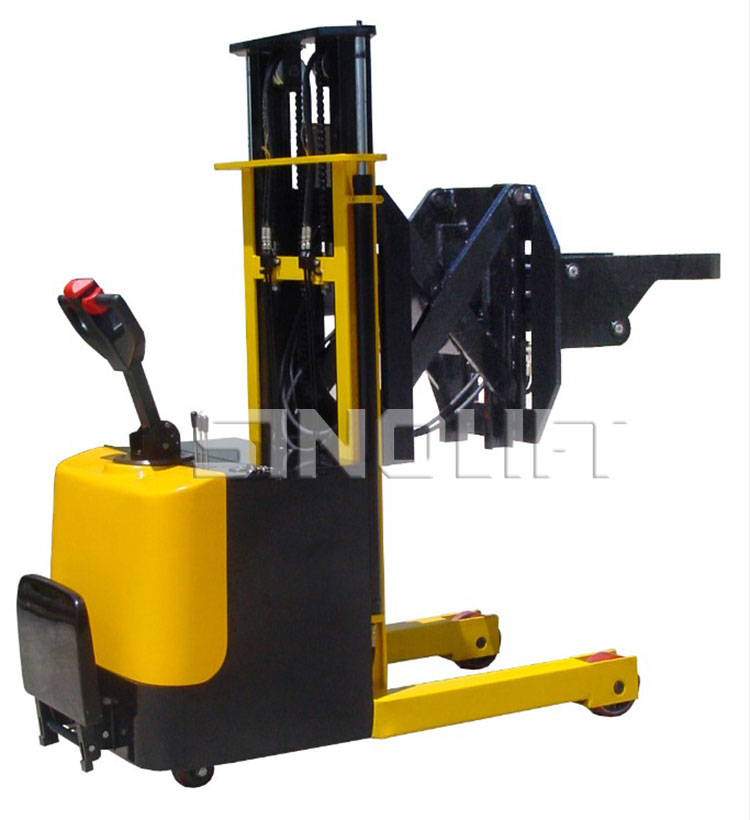

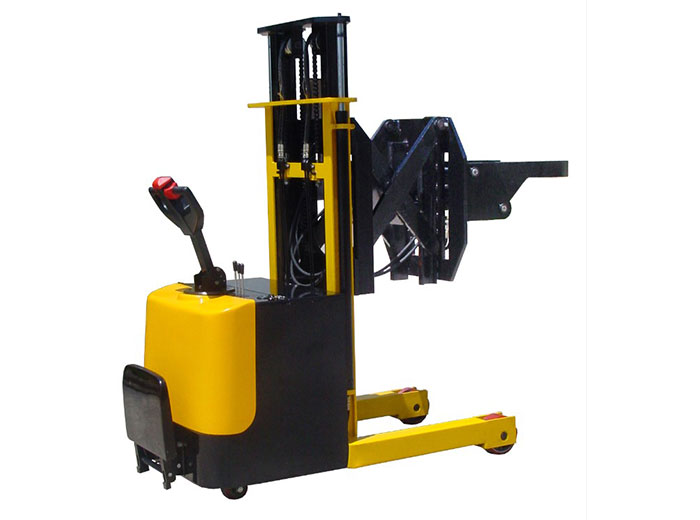

Name：WVDL40 Electric Drum Adopter
Model：WVDL40
Product Introduction：The WVDL400 DRUM-HAULER makes any easy task of transporting drums in and out of trucks, or up and down ramps or traveling over long distances. Its large industrial battery will operate continuously for an 8-hour shift. The unit's compact size and transistorized speed controller provides remarkable tight aisle maneuvering

1. Special design for handling all size of drums.

2. All electric control, ideal for lifting, rotating and stacking drum or other round goods such as paper roll.

3. Ride-on-platform driver, AC drive motor with regenerative braking, electronic speed controller, three separate hydraulic hand controls, safety reversing switch and powder coat finish.

4. Easy and convenient to operate.

Model		WVDL400
Drive Type		Full Electric
Operating Type		Pedestion
Rated Load Capacity	kg	400
Drum Size		30 gallon (Ø450x700), 55 gallon (Ø572x900) steel, 210L plastic
Lifting Height	mm	2000
Reach Length	mm	500
Rotating Degree		180°
Min. Clamp Height	mm	530
Overall Size	mm	2000x1120x1600
Lifting Motor Power	v/kw	DC24/2.0
Driving Motor Power	v/kw	DC24/1.2
Battery	V/Ah	12*2/210
Charger	V/A	24/30
Net Weight	kg	760
