Home >> Products >> YL420 Counter-balanced Electric Drum Hauler

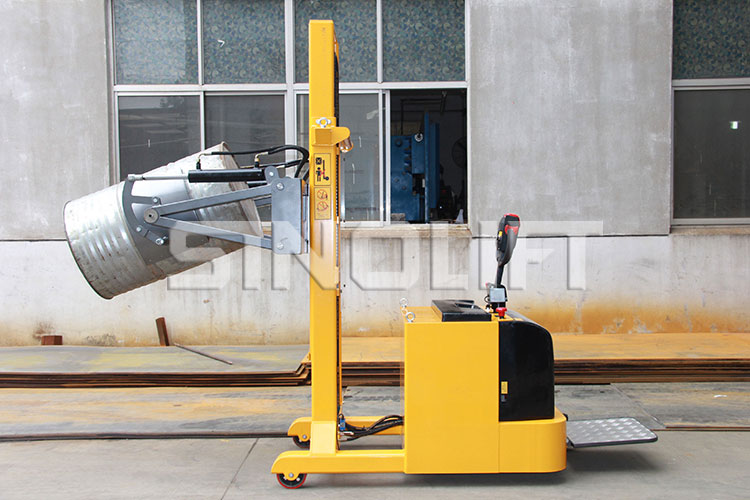

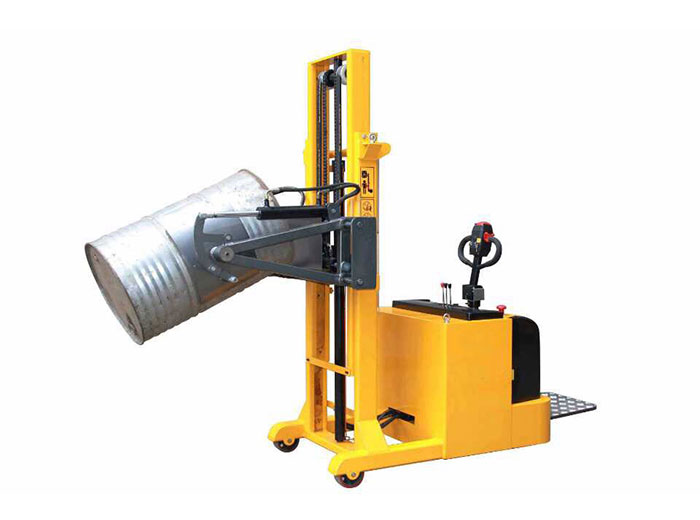

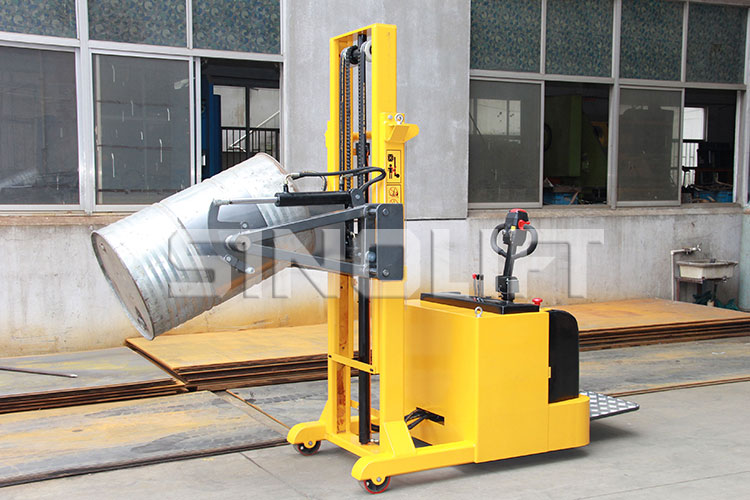

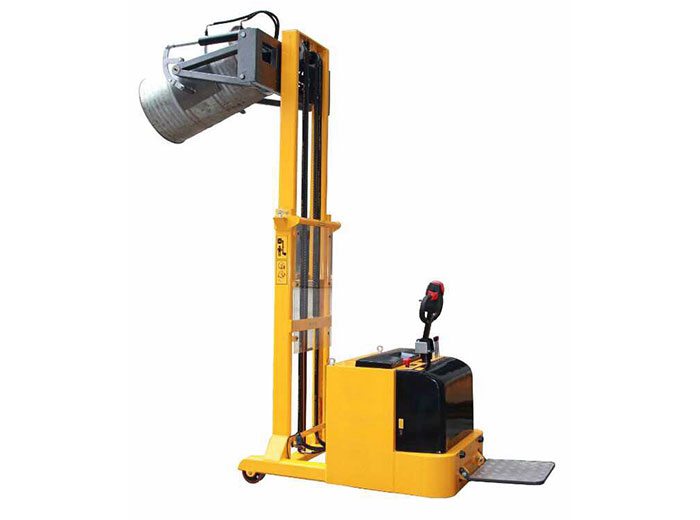

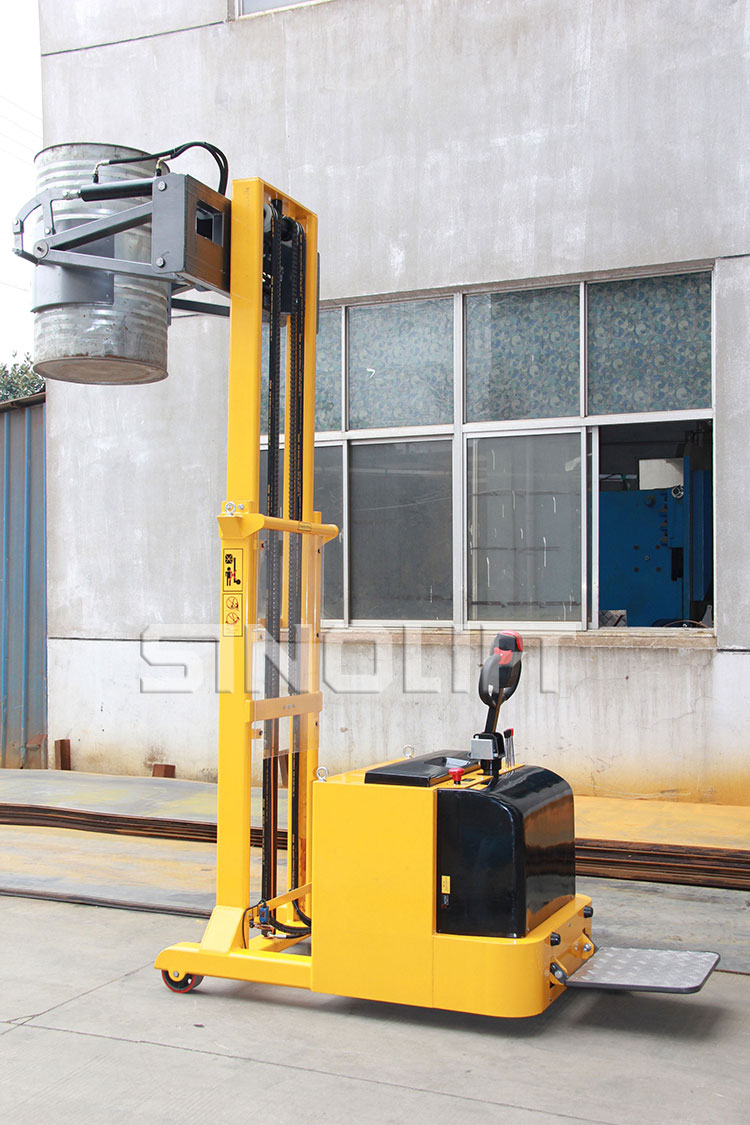

Name：YL420 Counter-balanced Electric Drum Hauler
Model：YL420
Product Introduction：•4.MOS 90 Transistorized Speed Controller provides infinite variable speed •Brake: Adjustable electromagnetic disc type. •Safety reversing switch with horn in handle , Safety stability casters •Battery discharge indicator-gauge type •Paint: Safety Yellow enamel

•4.MOS 90 Transistorized Speed Controller provides infinite variable speed
•Brake: Adjustable electromagnetic disc type.
•Safety reversing switch with horn in handle , Safety stability casters
•Battery discharge indicator-gauge type
•Paint: Safety Yellow enamel

产品型号		YL420
驱动形式	/	电动
驾驶方式	/	站驾式
额定载荷	kg	420
提升高度	mm	2400
整车高度	mm	1860
整车长度	mm	2270
整车宽度	mm	1170
转弯半径	mm	2150
最大爬坡能力满载/空载	%	3/5
驱动轮尺寸	mm	￠250*80
轮胎材质	/	聚氨酯
制动方式	/	电磁制动
驱动电机功率	kw	1.2
起升电机功率	kw	2.2
整车噪音	db(A)	＜70
蓄电池电压/容量	V/A	24/30
电池参数	V/Ah	24/210
自重	kg	1100
翻转角度	°	135
