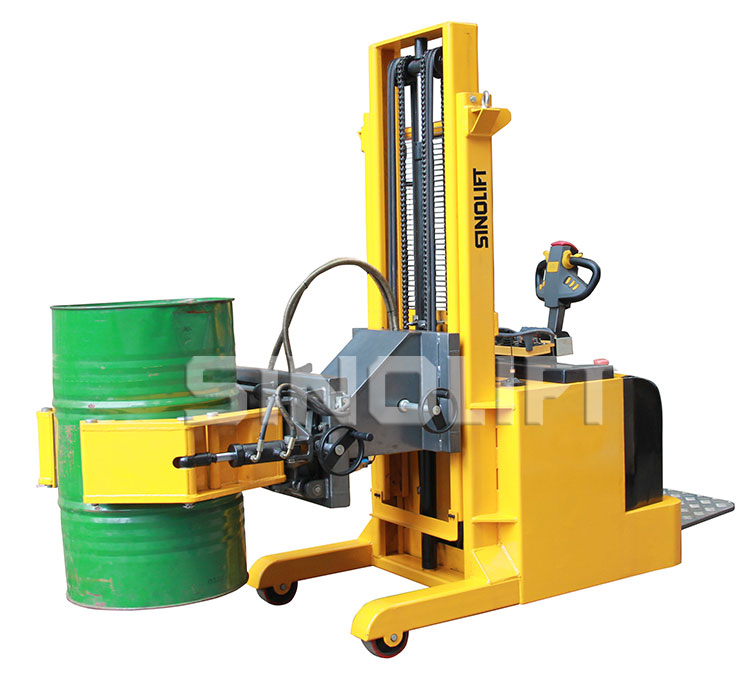

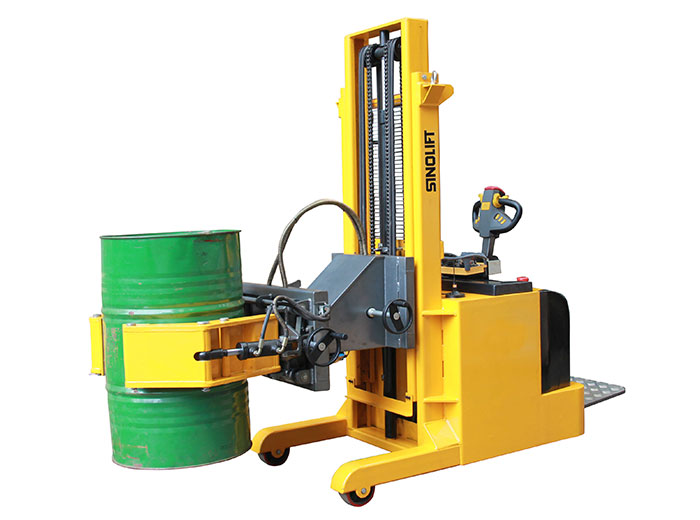

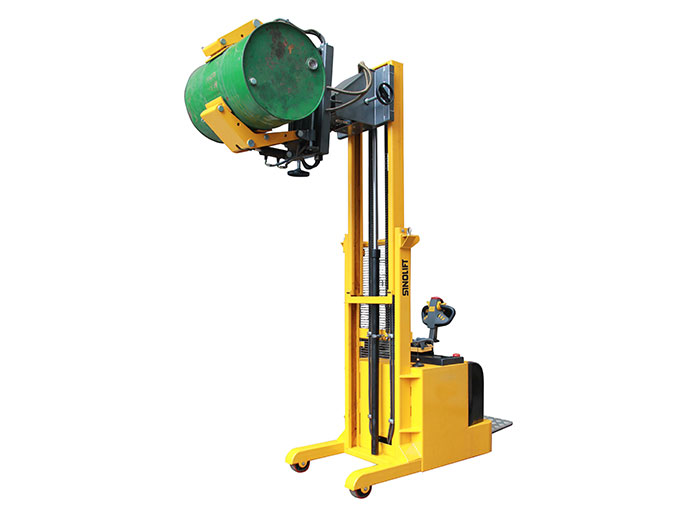

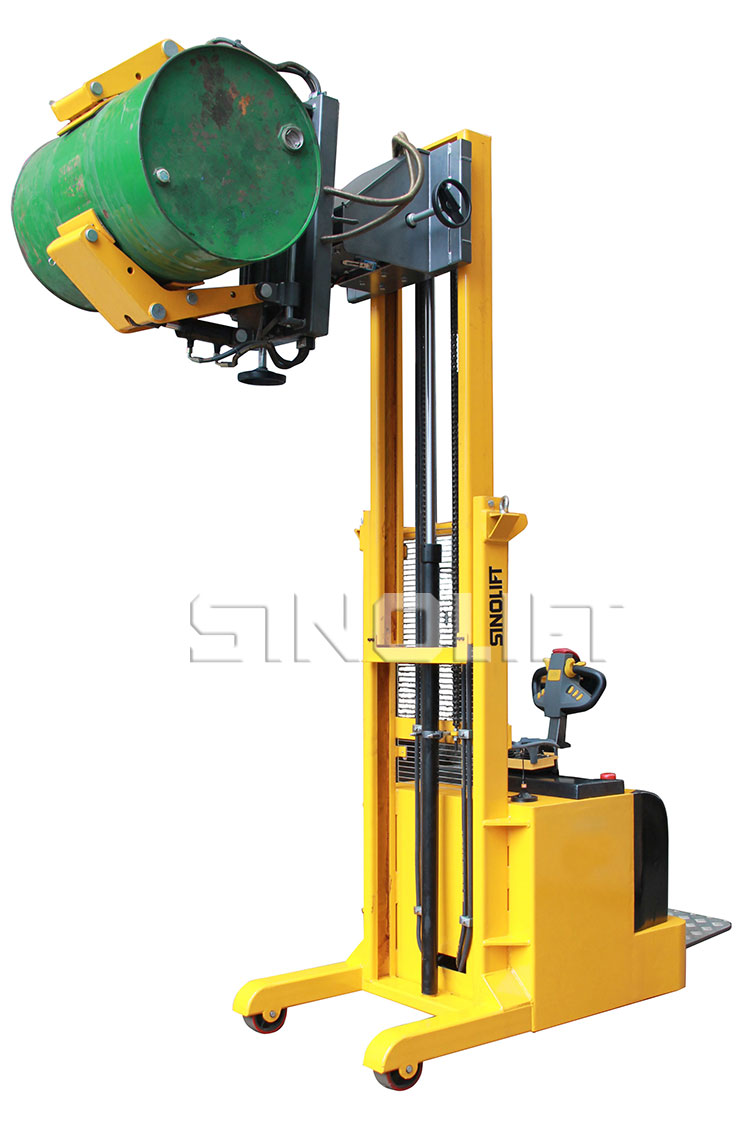

Name：YL700 Counter-balanced Electric Drum Hauler
Model：YL700
Product Introduction：1.Max. Load capacity 700kg; 2.Power drive,transport,lift and tilt 55 gallon steel and stainless steel drums; 3.Adjustable clamping arm is suitable for any round drums with φ230-830mm diameter; 4.Drums can be 360 degrees two-way continuous rotation; 5.You can operate the clamp arm at any angle; 6.Standing operating with manned pedal,labor saving & high efficiency; 7.With step-less speed regulator,high-power reversing switch,integrated hydraulic pump stations,power walking driving wheels and EPS steering.

1.Max. Load capacity 700kg;
2.Power drive,transport,lift and tilt 55 gallon steel and stainless steel drums;
3.Adjustable clamping arm is suitable for any round drums with φ230-830mm diameter;
4.Drums can be 360 degrees two-way continuous rotation;
5.You can operate the clamp arm at any angle;
6.Standing operating with manned pedal,labor saving & high efficiency;
7.With step-less speed regulator,high-power reversing switch,integrated hydraulic pump stations,power walking driving wheels and EPS steering.

Model		YL700
Drive type	∕	Battery
Operating type	∕	Standing operation
Rated load capacity	kg	700
Turning radius	mm	1500
Max. Grade ability(Fully-loaded/no-loaded)	%	3/5
Driving wheel size	mm	φ250*80
Wheel	∕	Polyurethane
Braking type	∕	Electromagnetic braking
Steering type	∕	EPS(Electric power steering)
Drive motor power	kw	1.2
Lifting motor power	kw	2.2
Noise level db(A)	＜	70
Battery voltage/capacity	V/A	24/30
Charger	V/Ah	24/210
Net weight	kg	1190
Drum rotating range	。	360
