Name：ETP100 ETP200 ETP250 ETP350 ETP400 Walkie Electric Tow Tractor
Model：ETP100 ETP200 ETP250 ETP350 ETP400
Product Introduction：Use for logistics handling and traction in hospitals, factories, aviation and other fields to facilitate different traction requirements.

1.Large capacity maintenance free battery is adopted.
2.Stepless speed regulating acceleration system.
3.It has the function of emergency braking.
4.It is suitable for indoor and outdoor flat pavement.
5.The maximum design gradient is 5%.
6.It has low voltage protection function.

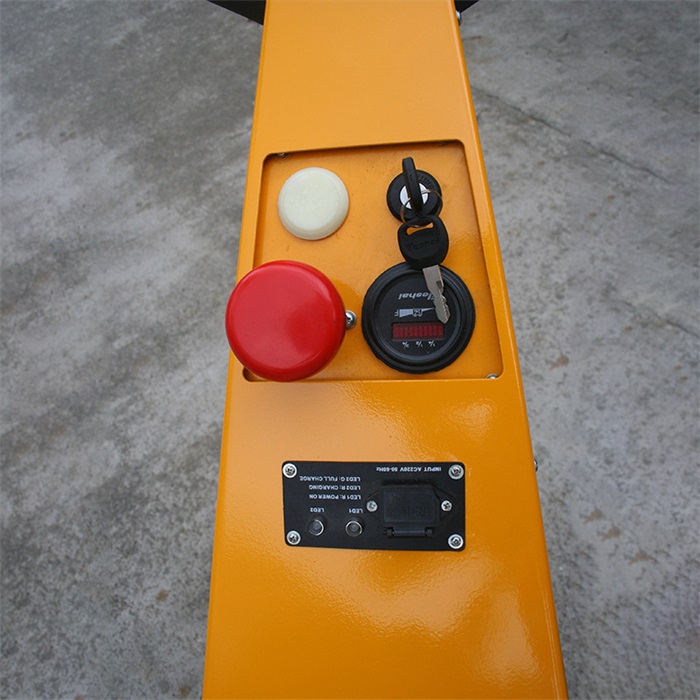

7.There is fault display lamp, which is convenient for diagnosis and maintenance.
8.Built in charger for charging at any time.
9.High torque electromagnetic brake is used for service brake and parking brake.

Model		ETP200	ETP250	ETP350	ETP400
Power form		electric
Operation type		Walking
Load	kg	2000	2500	3500	4000
Rated traction	n	480	720	800	800
Wheelbase	mm	630	630	680	680
Weight (including battery)	kg	275	295	336	345
Tyre type, driving wheel/bearing wheel		Rubber solid core/pu
Drive wheel size (diameter X width)	mm	2xφ406x150	2xφ406x150	2xφ375x115	2xφ375x115
Bearing wheel size (diameter X width)	mm	φ125x50	φ150x50	φ150x50	φ150x50
Front wheelbase, drive end	mm	460	460	575	575
Rear track, load end	mm	/	/	/	/
Vehicle height	mm	1100	1100	1230	1230
Minimum/maximum height of handle lever in operating position	mm	915	915	1000	1000
Traction coupler height range	mm	220/400	225/400	225/360	225/360
length	mm	1705	1735	1915	1915
width	mm	760	760	805	805
Ground clearance at the center of the wheelbase	mm	100	100	100	100
