EPT20-ET Electric Pallet Truck

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

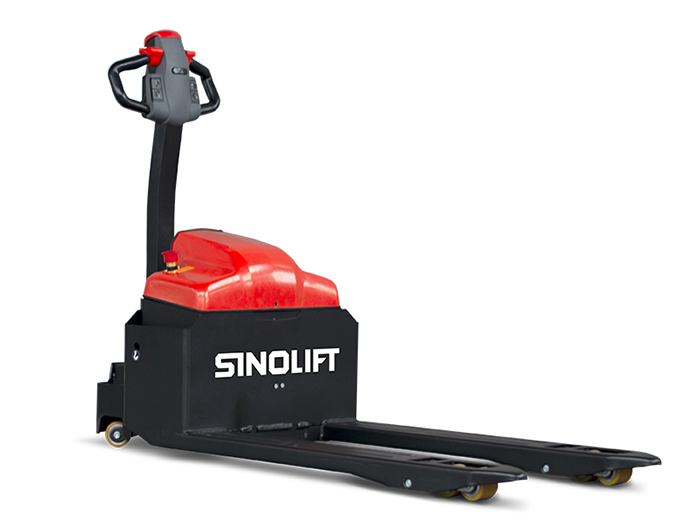

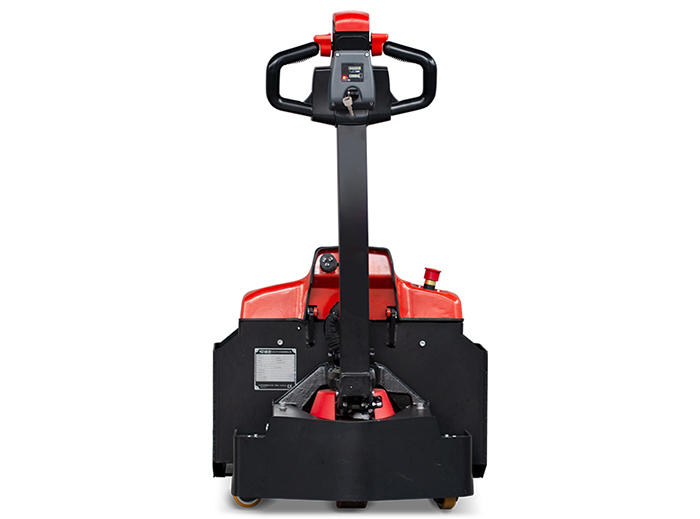

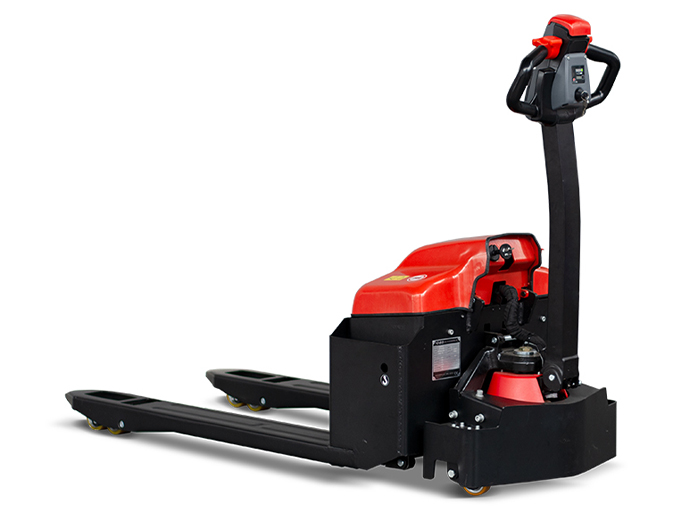

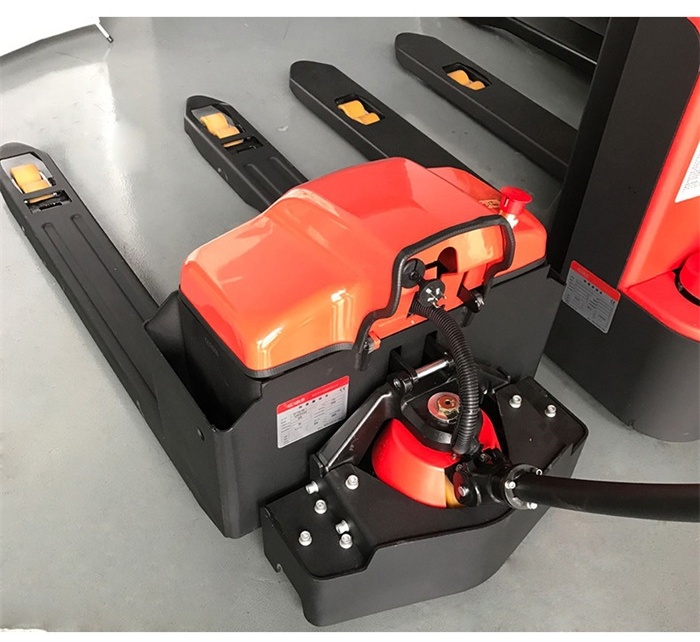

Name：EPT20-ET Electric Pallet Truck
Model：EPT20-ET
Product Introduction：EPT20-ET is designed to cope with complex environment. It’s a new star which has 48V super power, ideal out-door solution, longer run time. 220kg light service weight, 2000kg high rated capacity, maneuver through narrow aisle with 1465mm turning radius. It isn’t limited by floor type and harsh environments.

1. DC Power with large 1.6 or 2 ton lifting capacity.

2. E-Truck Terrain 1.6t is able to traverse a slope of 10% when fully loaded (2.0t model: 8% fully loaded).

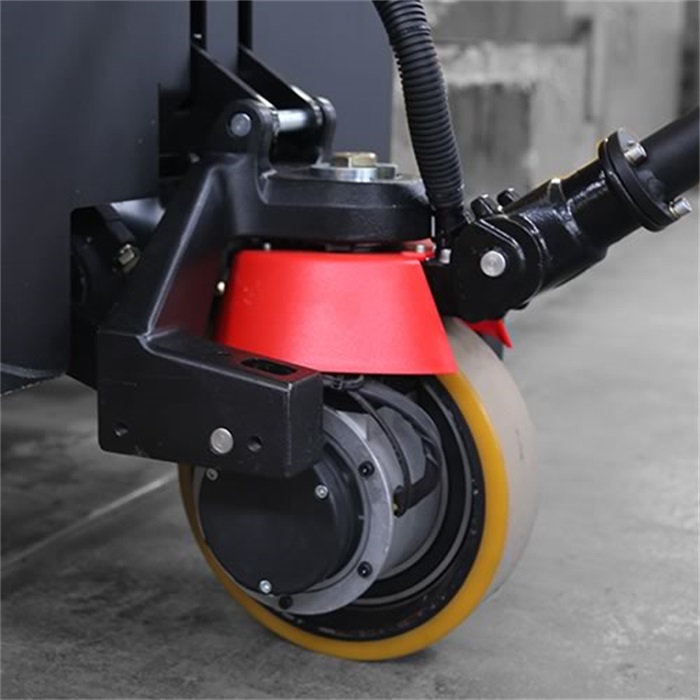

3. Large 260mm drive wheel; better able to withstand outdoor use on rough and uneven ground.

4. Solid, durable frame and all-wheel shock absorbers.

5. 48V Brushless drive motor.

6. Easy to maintain.

7. Small compact design for agility and use in confined areas.

8. Ergonomic handle with control buttons positioned to allow operation with either hand.

Model	EPT20-ET
Rated load(kg)	2000
Load center B11(mm)	600
Operation type	Walking style
Standard fork width b5(mm)	560(685)
Fork length(mm)	1150
Fork thickness(mm)	50
Fork width(mm)	150
Overall length(mm)	1685
Minimum turning radius(mm)	1465
Minimum channel width(1000x1200mm,Tray)(mm)	1792
Minimum channel width(800x1200mm,Tray)(mm)	1992
Maximum running speed, full load / no load(km/h)	4/5.5
Maximum lifting speed, full load / no load(m/s)	0.024/0.038
Maximum down speed, full load / no load(m/s)	0.034/0.025
Dead weight with battery(kg)	220
Tire material	Polyurethane
Running power(kw)	0.75
Lifting power(kw)	0.84
Voltage / capacity(V/Ah)	12*4/30
Running braking	Electromagnetic brake
Brake	Battery brake
Drive control type	DC
