Home >> Products >> L Series 1-1.8T Gas LPG Forklift

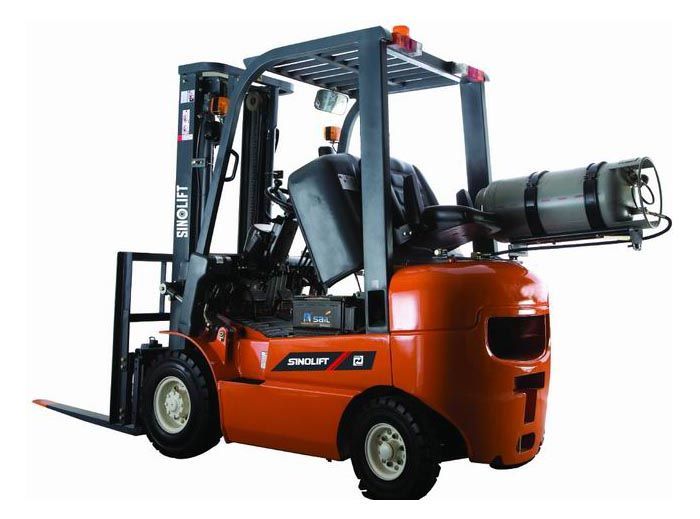

L Series 1-1.8T Gas LPG Forklift

Name：L Series 1-1.8T Gas LPG Forklift
Model：CPY(D)10-18
Product Introduction：Japanese engine: NISSAN K21 •Automatic transmission or mechanical transmission •Hydraulic steering/ braking system •Duplex 3000mm wide view mast •920mm length bar type forks •Dual fuel switch, tank

Standard

Japanese engine: NISSAN K21
·Automatic transmission or mechanical transmission
·Hydraulic steering/ braking system
·Duplex 3000mm wide view mast
·920mm length bar type forks
·Dual fuel switch, tank
·Front & rear wheel pneumatic tyres
·Direction light, reverse alarm light
·Front & rear combined lamp
·Storage box with cup holder
·Oil quantity sensor, fuel pressure warning switch
·Buzzer, electric horn, mirror, hour meter …

Technology

·Excellent cooling system
·The wholly integrated frame suspension of chassis
·Reliable hydraulic system
·Lower gravity
·Intelligent buffering system
·Newly integrated intelligent instrument
·Wide view mast
·Excellent LPG tank
·Integrated tilt cylinder
·A high degree and fully open engine cover
·Adjustable steering wheel and Toyota seat
·Regular clear electric circuit

Services

·Universal parts supply, quick and efficient after-sales service
·Highly qualified and experienced engineer service
·Long history with excellent reputation
·Rich international operation experience
·Strict management system
·Abundant economic strength
·Potential long term cooperation support
·Complete and full U-series products
·Advanced technology
·High-quality and stable performance
·Economic and environment-protecting

General	Manufacturer					SINOLFIT L Series 1.0-1.8T Gas/LPG Forklift Specifications
	Model					CPQ(D)10-WF CPY(D)10-WF	CPQ(D)15-WF CPY(D)15-WF	CPQ(D)18-WF CPY(D)18-WF
						CPQ(D)10-H1 CPY(D)10-H1	CPQ(D)15-H1 CPY(D)15-H1	CPQ(D)18-H1 CPY(D)18-H1
						CPQ(D)10-R CPY(D)10-R	CPQ(D)15-R CPY(D)15-R	CPQ(D)18-R CPY(D)18-R
	Power type					Gasoline LPG
	Rated capacity				kg	1000	1500	1750
	Load center				mm	500
Dimensions	Lift height				mm	3000
	Free lift height E				mm	164
	Fork size NxUxL				mm	920×100×40	920×100×40	1070×120×40
	Mast tilt angle α / β				deg	6/12
	Front overhang A2				mm	436
	Overall Dimensions	Overall length		Without fork A1	mm	2180	2235	2270
				With fork J		3116	3171	3356
		Overall width Q		Wheel width B1	mm	1095
				Frame width		1080
		Mast lowered height H1			mm	1995
		Mast extended height H3			mm	4038
		Overhead guard height H2			mm	2075
	Turning radius R				mm	1890	1960	2000
	Min. right angle aisle width X				mm	1720	1780	1820
Performance	Travel speed		Hydraulic		km/h	14.5/13.5
	(no load/full load)		Mechanical	Shift Ⅰ		6/5.5
				Shift Ⅱ		14/13.5
	Lift speed (no load/full load)				mm/sec	510/450
	Max. grade ability				%	20
	Self weight				kg	2340	2740	2943
Wheel & Tires	Tires	Front				6.50-10-10PR
		Rear				5.00-8-8PR	5.00-8-10PR	5.00-8-10PR
	Tread	Front B2			mm	890
		Rear B3			mm	920
	Wheelbase A3				mm	1400
	Ground clearance(full load/no load)			Mast M	mm	95/105		85/105
				Frame F		105/115
Drive units & control	Engine Options	Engine Name Code				WF	H1	R
		Model				WANFENG WF491GP	NISSAN H20(K21)	MITSUBISHI 4G64
		Rated output			kw/rpm	36.8/2600	36.8/2600	37/2500
		Rated torque			N.m/rpm	152/1600	152/1600	161/1600
		No. of cylinder				4	4	4
		Bore×stroke			mm	87.2x83	87.2x83	86.5×100
		Displacement			L	1.982	1.982	2.35
		Lubrication oil capacity			L	3.8	3.8	3.8
