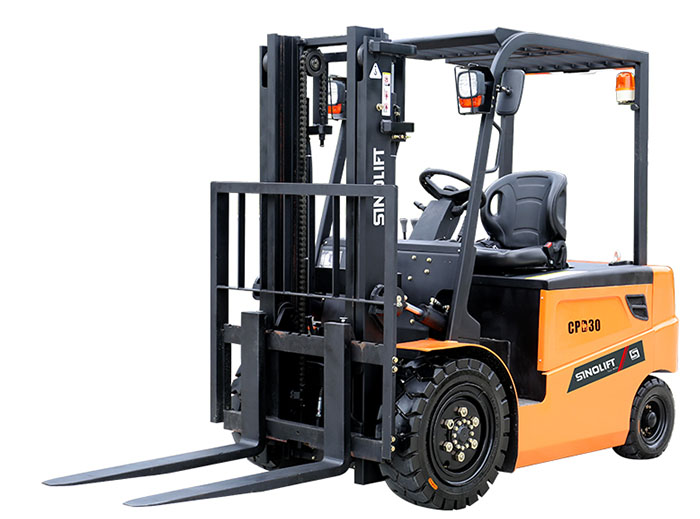

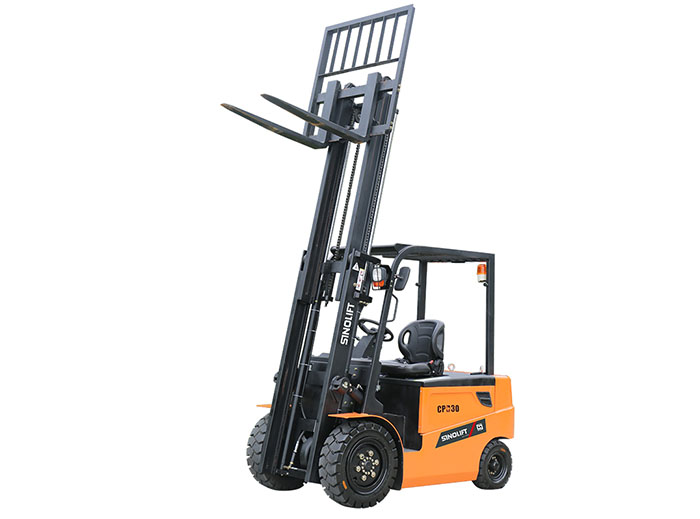

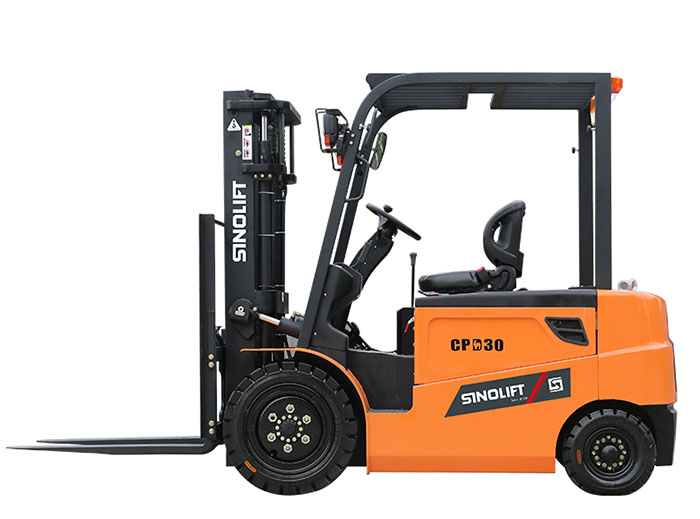

Name：3.0 Ton Electric Forklift Truck (CPD30E)
Model：CPD30E
Product Introduction：The CPD30E can work in the narrow passage as compact appearance and small turning radius; Lightweight, convenient energy-saving, flexible, reliable, and safe control mechanism; Standard solid tire, stronger bearing capacity, and life, low maintenance cost; Using a battery as a power source, pure power, no pollution, to meet the national environmental protection requirements.

Main Features

1. Driver could easy to read and understand it according to the right instrument panel with clear meter display.
2. Equipped with original imported American Curtis electric control system. The controller is directly fixed in the balanced weight to lead better heat dissipation.
3. Redesigned hydraulic control levers positioned next to seat to make operators feel comfortable.
4. The standard LED lamps and warning lights make it safer, more energy efficient and create better working condition.

MODEL NO.				CPD30E
Maximum load capacity		Q	kg	3000
Overall length ( No fork)		L'	mm	2495
Overall width		W	mm	1200
Height, mast lowered		H1	mm	2085
Height of overhead guard(cabin)		H4	mm	2160
Height, mast extended		H2	mm	4225
Ground clearance, laden, below mast		H5	mm	110
Ground clearance,unladen/laden,centre of wheelbase		H7	mm	125
Front tread		W3	mm	955
Rear tread		W2	mm	955
Wheelbase		L1	mm	1545
Front overhang		L2	mm	455
Lift height		H	mm	3000
Mast tilt angle, front/rear		α/β	°	6/12
Max.lift speed	unladen		mm/s	370
Max.lift speed	laden		mm/s	200
Max. travel speed	unladen		km/h	14
Max. travel speed	laden		km/h	12
Turning radius		R	mm	2155
Max. gradability,laden			%	15
Load centre distance		C	mm	500
Curb weight(with battery)			kg	4500
Tyre	Front			23*9-10
Tyre	Rear			18*7-8
Motor	Drive		kw	11
Motor	Lift		kw	12
Controller	Brand			SME
Battery			V/Ah	48/550
Aisle width for lengthways	800*1000		mm	4300
Aisle width for lengthways	1000*1200		mm	4157
