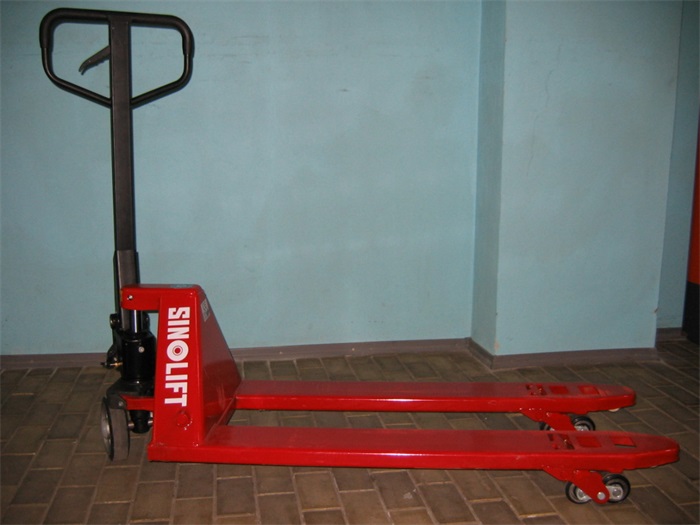

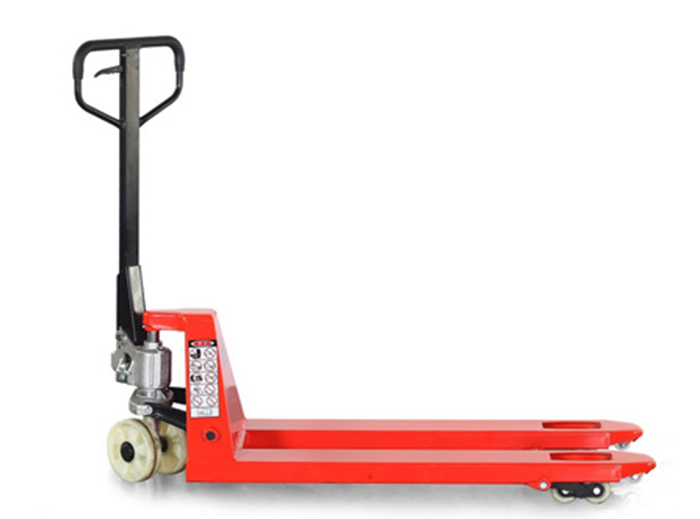

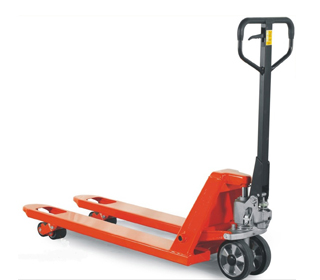

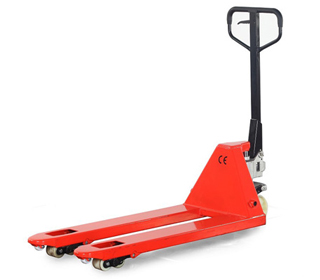

Name：AC sereis Hand Pallet Truck
Model：AC
Product Introduction：Easy to use and maneuverable Pallet Truck features polyurethane wheels and rollers, adjustable push rods, robotic welds, quality bearings throughout, grease fittings and bushings at all pivot points.

• Full hydraulic system. It is convenient to replace the rear wheel.

• The oil pump body can be made by assembling the separated prefabricated parts using threaded connection or make by die casting decrease leak possibility.

• Easy to maneuver with 210 degrees turning radius.

• Grease fitting at all pivotal points to ensure trucks long life and easy control.

• Special lowering valve to control the rate of descent and over load by- pass valve to make the trucks durable.

• Number of pump strokes-10, lift height per stroke:12mm.

• Reliable oil leak-proof hydraulic system.

• Option: nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers

MODEL	AC 1.5	AC 2.0	AC 2.5	AC 3.0
Rated Capacity	1500	2000	2500	3000
Width across forks	85/75/65
Fork Length	195/185/175
Lowered fork height (Min)	1000	1100/1150	1150/1220	1220
Total lift height (Max)	520/550	550	550/685	685
Steering Wheels	Φ180/Φ160
Fork Wheels	Φ80/Φ70/Φ60
Weight (kg)	73--92
Q'ty/20Fcl	180	180	180/144	144
