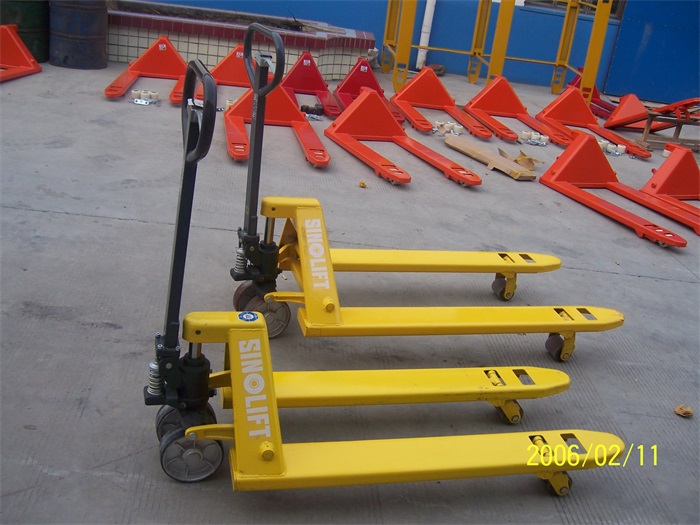

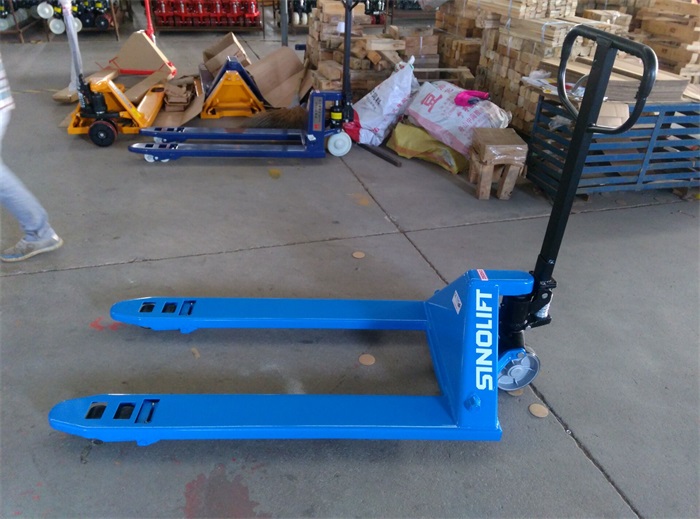

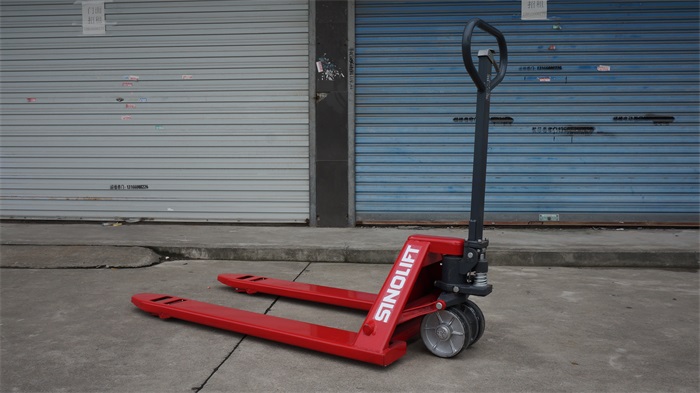

Name:NP sereis Hand Pallet Truck
Model:NP
Product Introduction:Quality engineered for strength, dependability and long life. SINOLIFT's choice as the pallet jack on the market today. Standard models come with a standard capacity of 2500 Kg.

Quality engineered for strength, dependability and long life. SINOLIFT's choice as the hand pallet truck/pallet jack on the market today.

The hydraulic system on this pallet jack is the result of years of research and development, including a load limiter that prevents premature wear resulting from overloading. A special design of lowering valve permits gentle lowering of heavy loads. No moisture can get into the unit and it is leak proof.

Lifting - Neutral - Lowering. No foot pedal means extra safety. Neutral allows pumping at the most convenient angle to the operator and free handle movement when the truck is in motion. The handle returns automatically to the vertical position.

All Parts guranteed for a full year, except where used in Acidic or Alkali Environments.

Features Include:

o     Safety designed loop handle, includes neutral position, and fingertip release

o     Spring-o-matic handle self returns

o     230° pivot action maneuvers in compact area

o     One piece formed steel "C" channel tapered, reinforced forks

o     Leak-proof pump assures maintenance-free service

o     Hard chrome-plated ram and piston for long seal life

o     Urethane seals and wipers

o     Large Steer wheels with "Ball Thrust" steering

o     Sealed ball bearings throughout

o     Bearings at all pivot points can be lubricated easily

o     Tapered fork ends and nylon rollers permit easy entry and exit of pallets

o     Only 1 snap ring and 4 pins to remove the hydraulic unit

o     Painted quality safety color after anti-rust treatment

o     Tow (2) year structural and Three (3) year hydraulic pump warranty.

MODEL

NP15-511

NP25-712

NP30-712

NP30-510

NP30-712

Rated Capacity(kg)

1500

2500

3000

3000

3000

Width across forks(mm)

550

685

585

520

685

Fork Length(mm)

1150

1220

1220

1070

1220

Lowered fork height (Min)(mm)

80

80

80

80

80

Total lift height (Max)(mm)

200

200

200

200

200

Steering Wheels

ф180 (Rubber or Poly)

180x62 Polyurethane

180x62 Polyurethane

180x62 Polyurethane

180x62 Polyurethane

Fork Wheels

78ф80 (Polyurethane in double) or 78*100 (Polyurethane in Single)

Ø78x100 (Single)

Ø78x70 (Tandem)

Ø78x100 (Single) or Ø78x70 (Tandem)

Weight (kg)

78

80

100

78

85
