Home >> Products >> PTS hydraulic lifting table

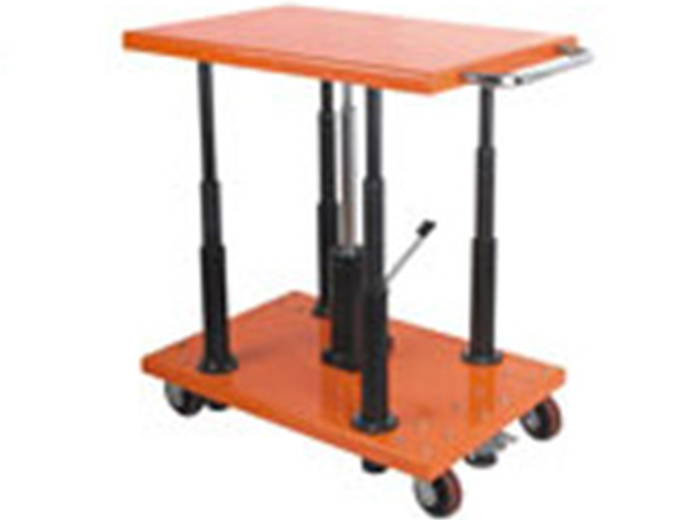

Name：PTS hydraulic lifting table
Model：PTS series
Product Introduction：Built for fast and efficient lifting, transporting and positioning of equipment and materials. Long lasting hydraulic pump is foot operated providing flexibility and portability. Foot-operated hydraulic lift tables for heavy duty shop. Auto two speed manual hydraulic foot pump for maximum operation comfort and producting. DC electric motor to automatically raise and lower the platform is available. All models includes:casters, two rigid and tow swivel with wheel brakes.

Built for fast and efficient lifting, transporting and positioning of equipment and materials. Long lasting hydraulic pump is foot operated providing flexibility and portability.

Foot-operated hydraulic lift tables for heavy duty shop.

Auto two speed manual hydraulic foot pump for maximum operation comfort and producting.

DC electric motor to automatically raise and lower the platform is available.

All models includes:casters, two rigid and tow swivel with wheel brakes.

Model		PTS-20-2436	PTS-20-3042
Load Capacity	kg/lbs	100kg 2200lb	100kg 2200lb
Lowest Height(mm)	mm	540	670
Max.Height(mm)	mm	1250	1500
Table.Dimensions(mm)	mm	610x915	762x915
Net Weitht(kg)	kg	145	175
Packing Dimensions(mm)	mm	930x780x550	930x780x680
Qty"/1x20" FCL	pcs	36	28
