CBD20E CBD25E CBD30E Electric Pallet Truck

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

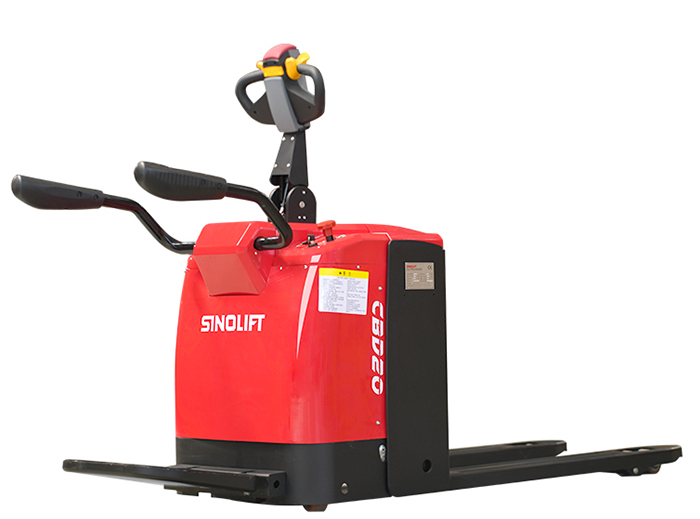

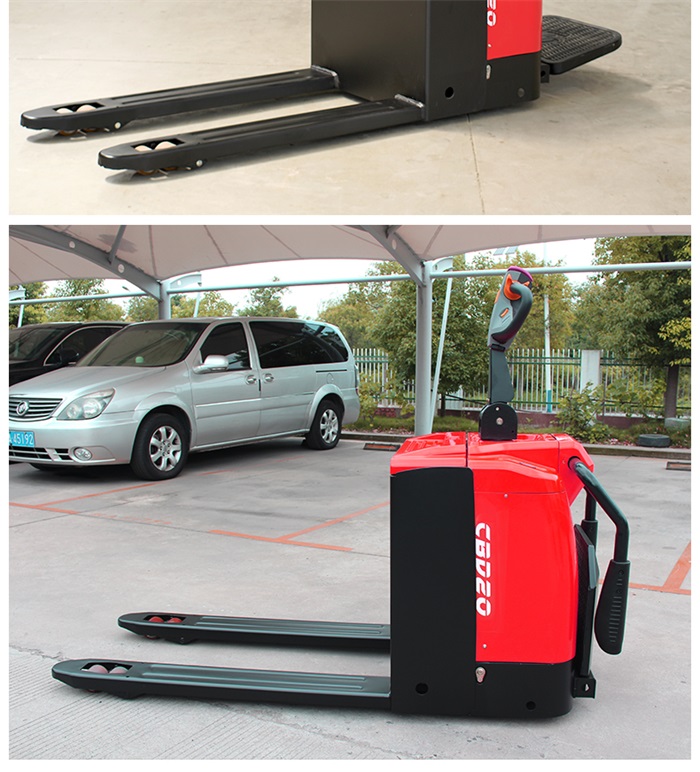

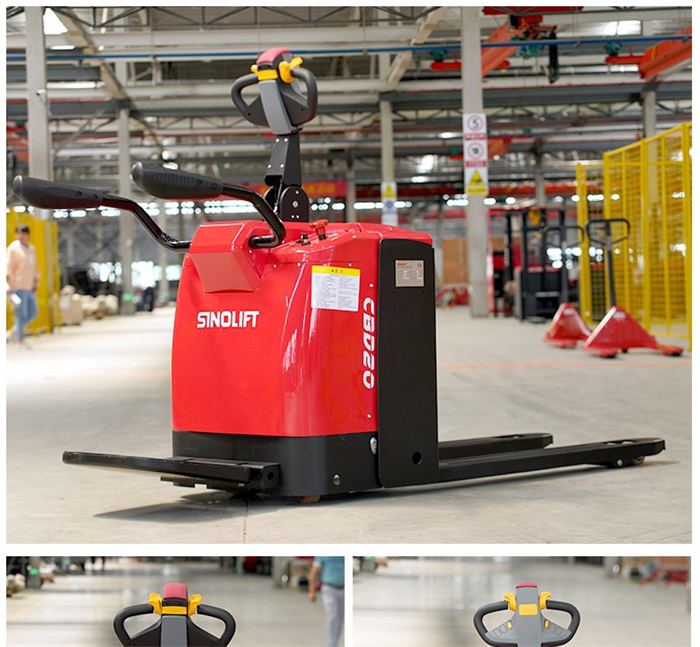

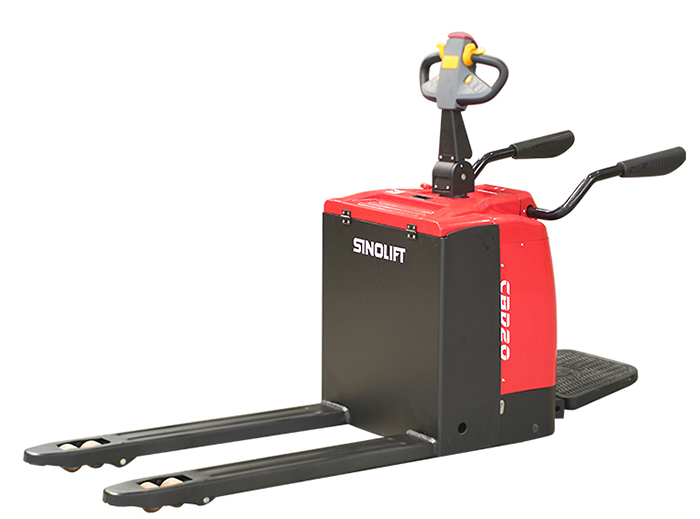

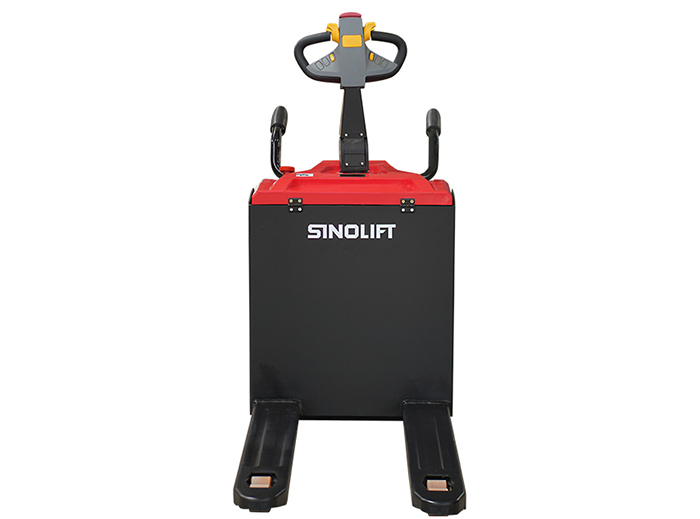

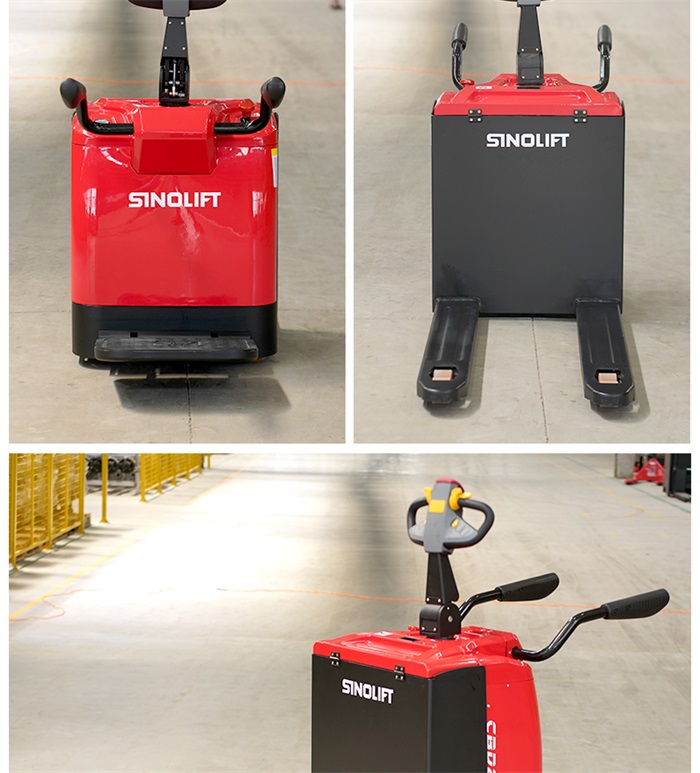

Name：CBD20E CBD25E CBD30E Electric Pallet Truck
Model：CBD20E CBD25E CBD30E
Product Introduction：The new SINOLIFT E-series 2.0 to 3.0 ton electric pallet truck has been designed to bring exceptional efficiency to your material handling operations, no matter the requirements. Easy to drive, offering perfect visibility and productivity combined with the highest safety standards, these trucks benefit from the Toyota tradition for quality and reliability.

SAFETY AND PRODUCTIVITY

• AC technology gives high performance and low maintenance (no carbon brushes)

• Intelligent regenerative brake system: increase overall truck performance.

• Side battery removal, for multiple shift operation

• Turtle mode switch, for safe maneuverability with tiller in upright position

• Proportional travel speed control

• Anti roll-back on gradients

• Effortless steering (EPS), less fatigue

• Automatic speed reduction relative to steer angle

• Suspended platform for comfortable operation

STRUCTURE DESIGN

• The closed motor structure is water- and dust resistant

• Spring-loaded castors improve lateral stability on uneven floors and enhance truck performance and service life.

• Welded type fork.

SERVICEABILITY

• CANbus technology reduces wiring complexity.

• All pivot points have grease fittings and serviceable bushings, to reduce component-wearing.

• Easy access to all components thanks to removal of 1-piece front cover.

Identification	1.1	Manufacturer			SINOLIFT
	1.2	Model			CBD20E	CBD25E	CBD30E
	1.3	Power Type			Electric	Electric	Electric
	1.4	Type of Operation			Stand-on	Stand-on	Stand-on
	1.5	Load Capacity/Rated Load	Q	kg	2000	2500	3000
	1.6	Load Center Distance	C	mm	600	600	600
	1.7	Wheel base	y	mm	1400	1480	1480
Weight	2.1	Total Weight (with battery)		kg	585	790	815
Dimension	3.2	Overall Width	W1	mm	720	790	790
	3.3	Fork Dimension	l/e/s	mm	1200×160×50	1220×185×50	1220×185×50
	3.4	Width of Fork	b2	mm	540/685	550/685	550/685
	3.5	Min. Fork Height	h3	mm	85	85	85
	3.6	Lift Height	h2	mm	205	205	205
	3.7	Ground Clearance at Center of Wheelbase	m1	mm	35	45	45
	3.8	Height of Operating Handlebar (Min./Max.)	h14	mm	1000/1450	1000/1450	1000/1450
	3.9	Turning Radius(Pedal Retracted/Expanded)	Wa	mm	1675/2110	1665/2150	1665/2150
Tyre	4.1	Tyre Type			Polyurethane	Polyurethane	Polyurethane
	4.2	Tyre Size (Front)		mm	φ80x60	φ80x80	φ80x80
	4.3	Tyre Size (Auxiliary Wheel)		mm	φ115x55	φ115x55	φ115x55
	4.4	Tyre Size (Driving Wheel)		mm	φ230x75	φ230x75	φ230x75
Performance	5.1	Traveling Speed (Laden/Unladen)		km/h	6/6	5/6	5/6
	5.2	Lifting Speed (Laden/Unladen)		mm/s	20/25	20/25	20/25
	5.3	Lowering Speed (Laden/Unladen)		mm/s	30/26	30/26	30/26
	5.4	Max.Gradient Performance (Laden/Unladen)		%	5/10	5/8	5/8
Power Unit	6.1	Drive Motor Rating (AC) S2 60min		kW	1.2	1.5	1.5
	6.2	Lift Motor Rating (DC) S3 -15%		kW	0.8	2.2	2.2
	6.3	Battery Voltage/Capacity K5		V/Ah	24/210	24/210	24/240
	6.4	Battery Weight		kg	188	188	210
Others	7.1	Controller Brand			ZAPI	CURTIS	CURTIS
Others	7.2	Controller Model			AC-0	1232E	1232E
