Home >> Products >> LT Lateral Pallet Tilter

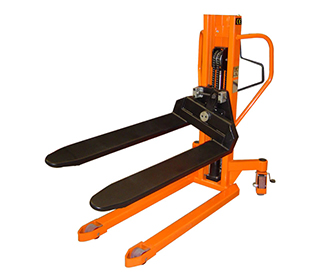

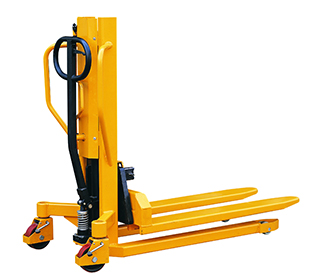

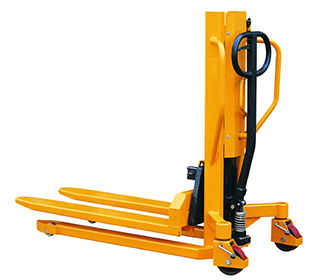

Name：LT Lateral Pallet Tilter
Model：LT0892
Product Introduction：The Pallet Tilter is designed to give the user an ergonomiclly correct position to reach loads easily without the necessary of bending down or stetching up.

Features:

1. Designed to give the user an ergonomically correct position to reach loads easily without the necessity of bending down or stretching up.

2. Forks can be tilted up to 20° both left and right sides by thread.
3. Supplied as standard with parking brake and foot protectors.
4. Conforms to EN1757-1.

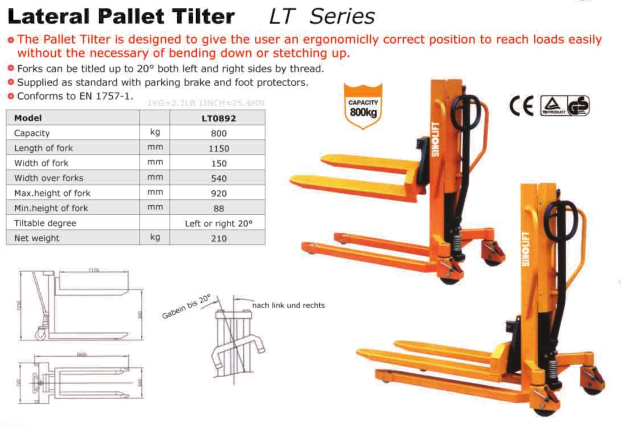

New Model		LT0892
Old Model		LT0892
Capacity	(kg)	800
Max.Fork Height	(mm)	920
Min.Fork Height	(mm)	88
Fork Length	(mm)	1150
Fork Width	(mm)	150
Width Over Forks	(mm)	540
Tiltable degree		Left or right 20°
Net Weight	(kg)	210
