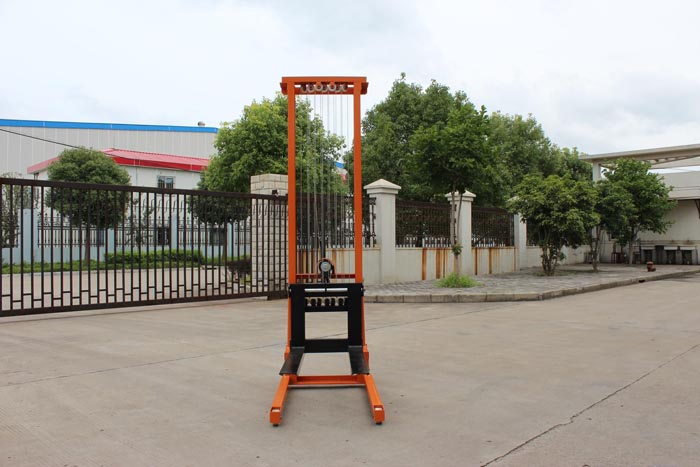

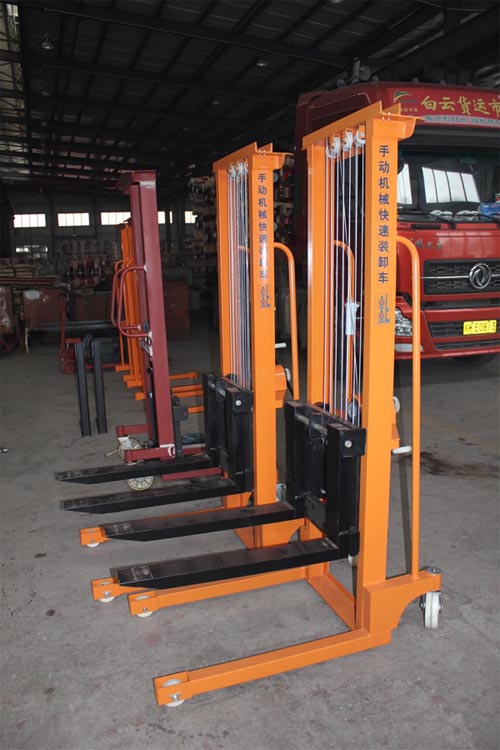

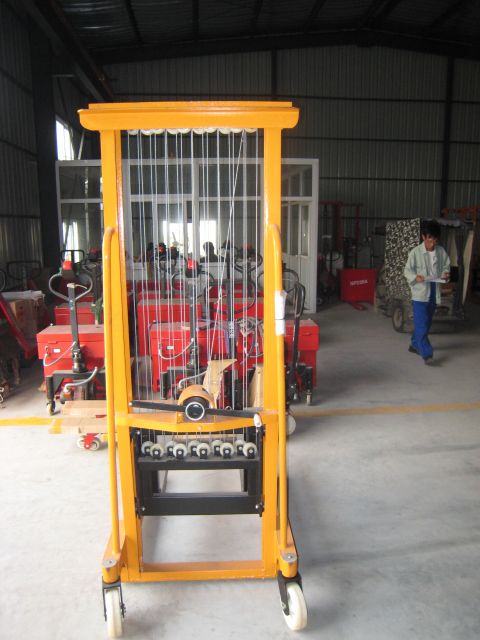

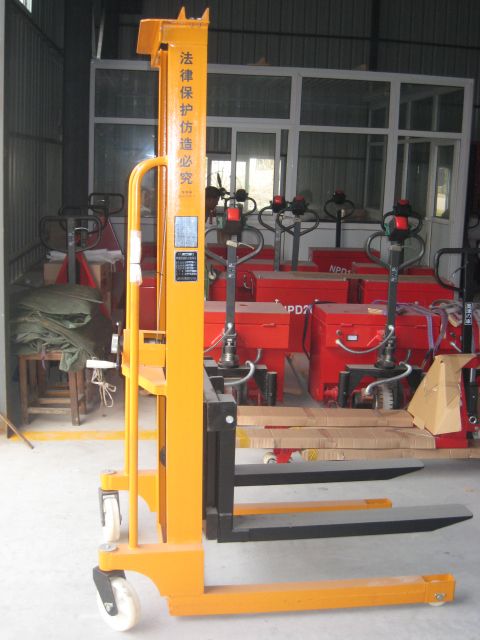

Name:CTJ Wirerope Hand Winch Stacker
Model:CTJ
Product Introduction:This compact truck is ideal for loading and unloading trucks where docks do not exist. A favorite with the automotive industry for handing engines and transmissions, this model features an easy to operate winch with an automatic braking system, a safety cage and a floor brake.

Features:

1. This compact truck is ideal for loading and unloading trucks where docks do not exist. A favorite with the automotive industry for handing engines and transmissions, this model features an easy to operate winch with an automatic braking system, a safety cage and a floor brake.

2. Manual lift and propulsion.

3. Wind the handle clockwise to lift the load.

4. Turn it anti-clockwise to lower the load.

5. Twin handles for easy manouvering.

6. Adjustable winch handle length for different load weights.

7. Conforms to EN1757-1.

Model CTJ300 CTJ500 CTJ1000 / CTJ1000A CTJ1500
Loading capacity(kg) 300 500 1000 1500
Lifting speed (mm/sec) 0~160 0140 060 040
Lifting height (mm) 1500 1500 1500 1500
Outline dimension (mm) 1250x620x1900 1200×620×1990 1260×680×2020 1480×800×2035
Fork length (mm) 800 800 800 900
Front wheel (mm) φ90 φ90 φ90 φ90
Rear wheel (mm) φ125 φ180 φ180 φ180
Mesh line (mm) 1900 φ2.83.5 φ2.83.5 φ2.83.5
Fork outside width (mm) 190420 190420 230530 260640
Foot Brake No No No No
Outside width of inserting leg (mm) 620 620 680 800
Loading center (mm) 400 400 400 450
Service Weight (kg) 105 106 240 290
Remark: With A is mean that with Foot Brake
