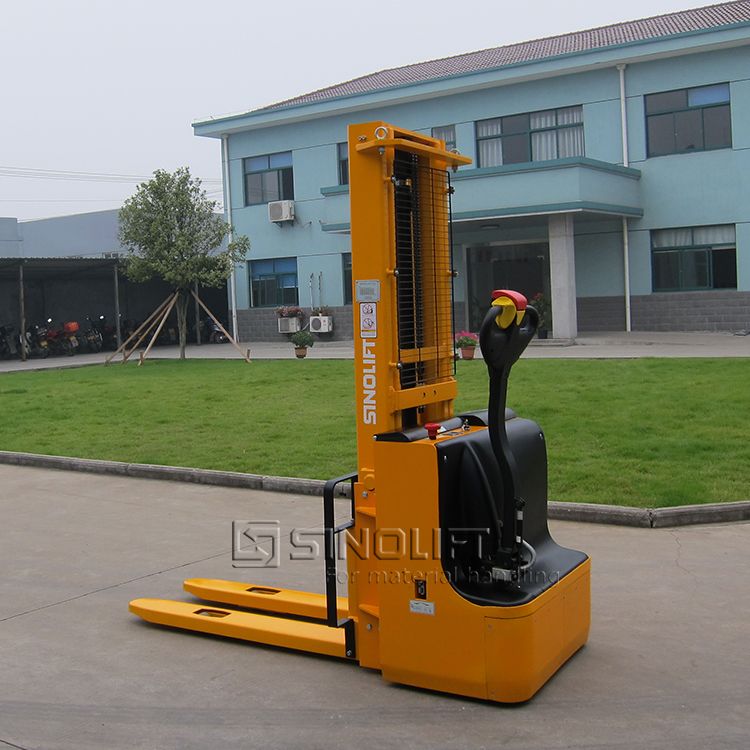

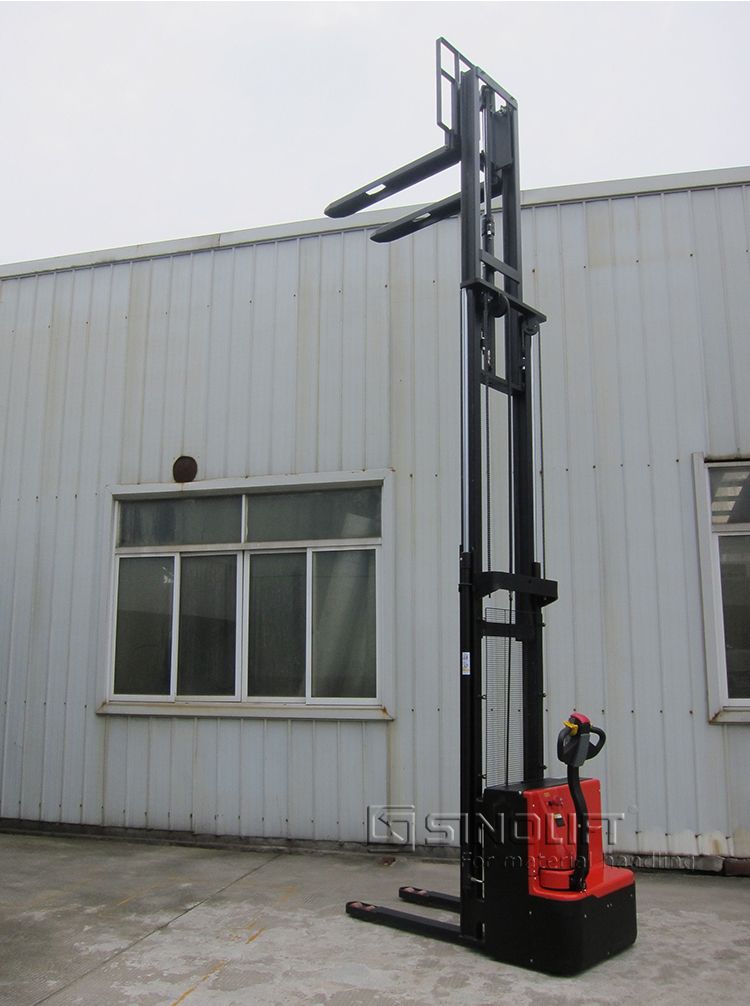

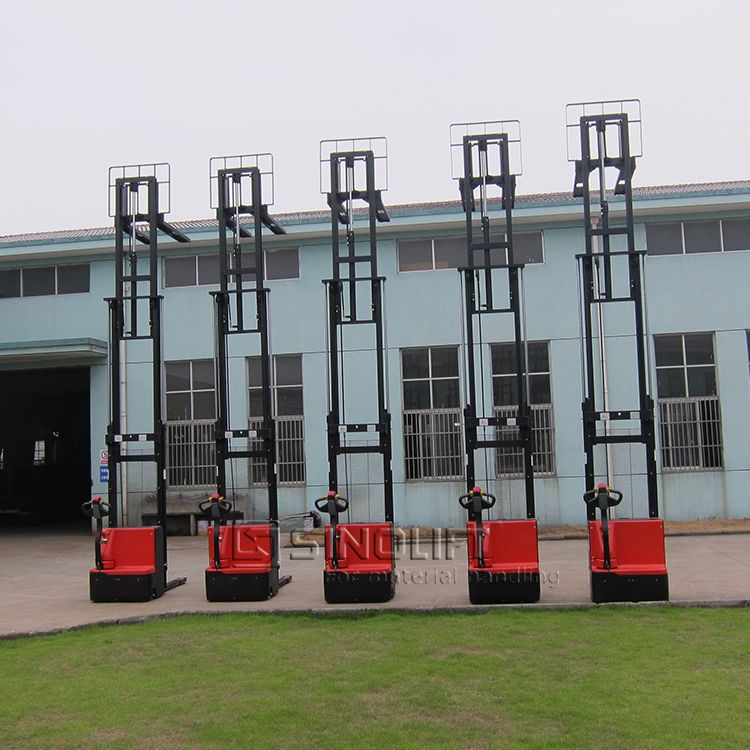

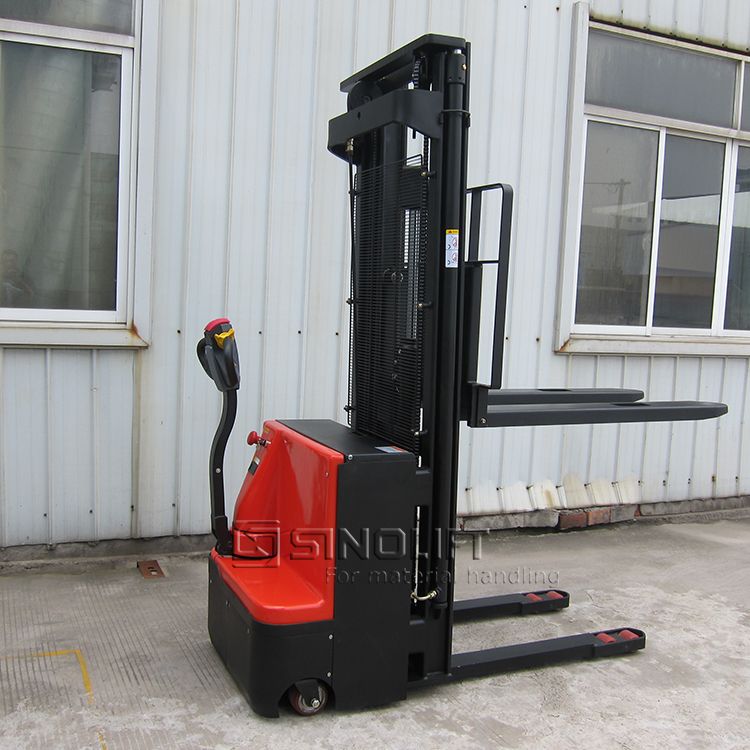

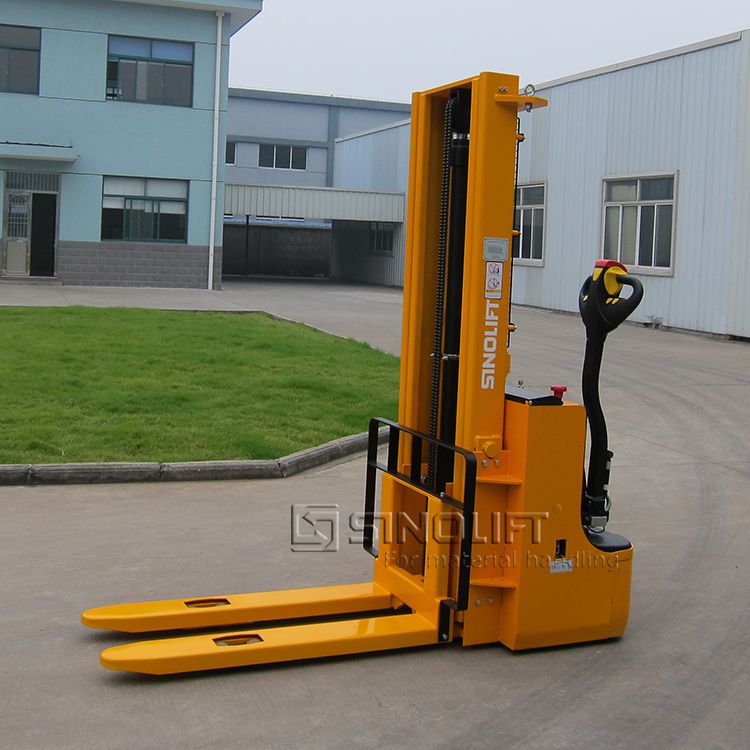

CDD-C Side Operating Full Electric Stacker

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

Name：CDD-C Side Operating Full Electric Stacker
Model：CDD-C
Product Introduction：Designed for stacking palettes on tacks and transporting goods for short distance. Can be installed with new Tiller from REMA, Germany.

Features:

1. Tiller arm is mounted on one side for optimum control and visibility.

2. High-comfort tiller grip reduces fatigue, improving productivity.

3. Heavy-duty design with top quality mast construction.

4. Powerful drive and power unit made in Europe.

5. Top quality electronic control system from Curtis.

6. Multi-fuction handle includes crawl button, butterfly travel speed controls and lift/lower control offer variable speed adjustment.

7. Conforms to En1757-1:2001

Model		CDD1.2C			CDD1.5C
Standard (CDD-C)		CDD1.2C/24	CDD1.2C/29	CDD1.2C/33	CDD1.5C/24	CDD1.5C/30	CDD1.5C/33
Capacity Q	kg	1200			1500
Max Lifting Height h3	mm	2450	2900	3300	2450	3000	3300
Load Center C	mm	600			600
Min Height of Forks	mm	86			86
Fork Length	mm	1150			1150
Fork Width	mm	540			540
Min Height of Stacker	mm	1800	2025	2225	1800	2025	2225
Max Height of Stacker	mm	3094	3546	3946	3096	3546	3946
Width of Stacker	mm	860			860
Length of Stacker	mm	1924			1924
Min Turning Radius	mm	1540			1540
Battery		172kg DG240AH/24V			172kg DG240AH/24V
Gross Weight (without battery)	kg	648	670	691	658	680	701
