CDD2T Heavy Duty Full Electric Stacker

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

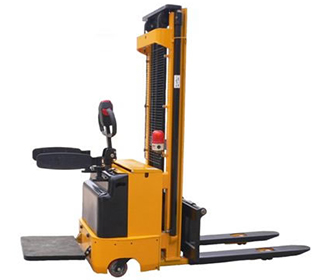

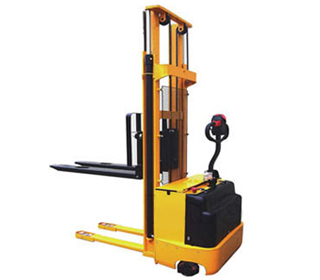

Name：CDD2T Heavy Duty Full Electric Stacker
Model：CDD2T
Product Introduction：“I” shape door frame is safe, beautiful and durable. large capacity traction battery, lasting power and long working time. wide vision, available with imported handlebars.

Features:

1. Rated load: 2000KG

2. Meet European standard en1757-1:2001, EN1727

3. Curtis quality electronic control system

4. European original import of powerful power and drive wheel.

5. “I” shape door frame is safe, beautiful and durable.

6. large capacity traction battery, lasting power and long working time.

7. wide vision, available with imported handlebars.

Model		CDD20	CDD20T
Type		without pedal	with a pedal
Load Capacity	Kg	2000
Load Center	Mm	600
Max. Fork Length	Mm	2450
Min. Fork Length	Mm	90
Fork Length	Mm	1150
Fork Over Width	Mm	540/680
Fork Length	Mm	160
Driving speed (full load/no load)	Km/h	4.8/5.5
Lifting speed (full load/no load)	Mm/pcs	95/144
Falling speed (full load/no load)	Mm/pcs	150/65
Front wheel, double wheel	Mm	Ø78×70
Rear Wheel	Mm	Ø150×75
Driving Wheel	Mm	Ø250×80
Traction Battery	Ah/v	240Ah/24V
Charger	A/V	30A/24V
Battery Weight	Kg	230
Turning Radius	Mm	1525
Overall Dimensions	Mm	1925×840×1800
Pedal Dimensions	Mm	480×450
Net Weight	Kg	965
