Home >> Products >> M Series Work Postioner

Name：M Series Work Postioner

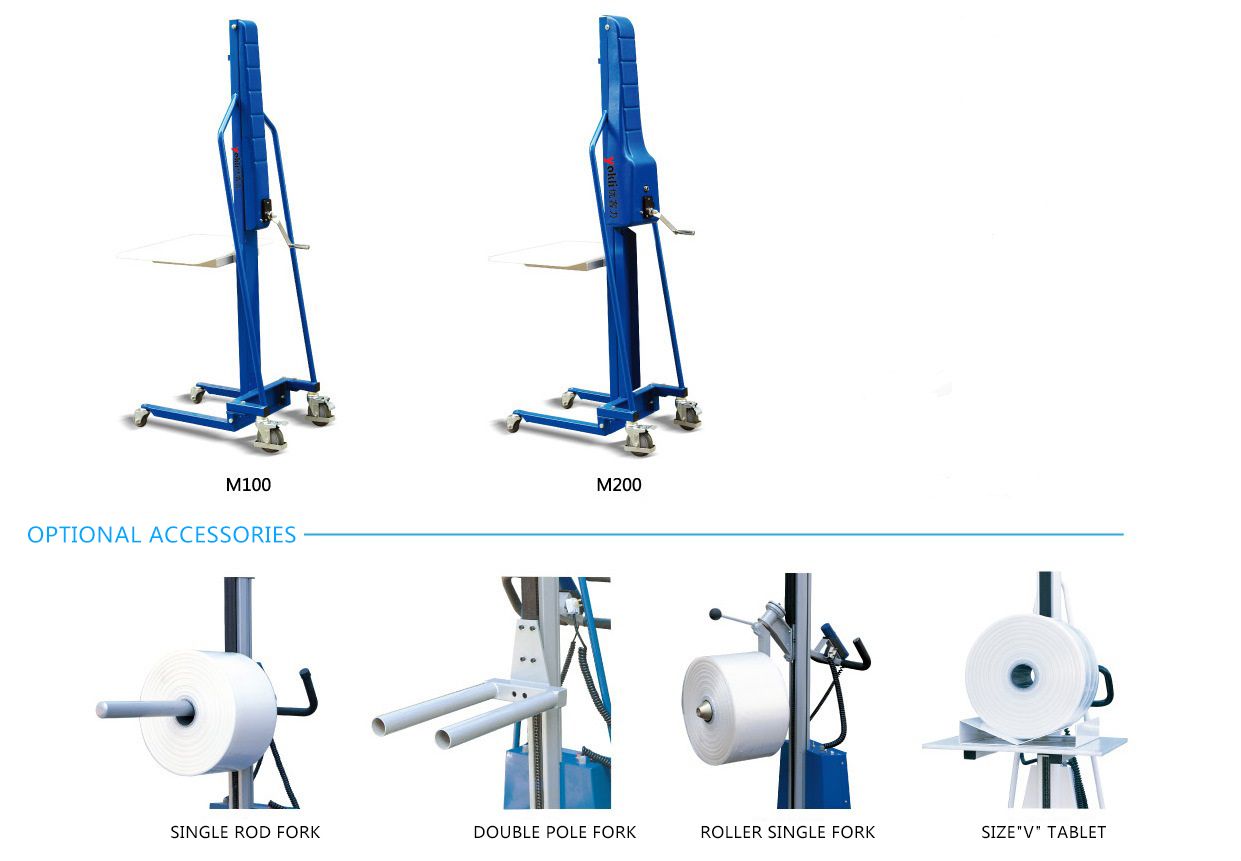

Model：M100/M100L/M200/M200L
Product Introduction：1.A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height. 2.Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc...

1.A range of highly maneuverable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
2.Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc...

Model	Unit	M100	M100L	M200	M200L
Capacity	(kg)	100	100	200	200
Load Center	(mm)	230	230	230	230
Max. Platform Height	(mm)	1500	1500	1500	1500
Min. Platform Height	(mm)	130 (PE) / 85 Steel		130 (PE) / 85 Steel
Min. Fork Height	(mm)	30~80	30~80	30~80	30~80
Support Leg Height	(mm)	110	80	110	80
Support Leg Inner Width		370(370~600)
Platform Size	(mm)	470×600 (PE or Steel)		470×600 (PE or Steel)
Overall Dimensions	(mm)	840×600×1830	840×600×1830	870×600×1920	870×600×1920
Load Wheel	(mm)	ø75 Universal	ø75 Fixed	ø75 Universal	ø75 Fixed
Steeing Wheel	(mm)	ø125 (PU)	ø125 (PU)	ø125 (PU)	ø125 (PU)
Net Weight	(kg)	48	50	62	64
