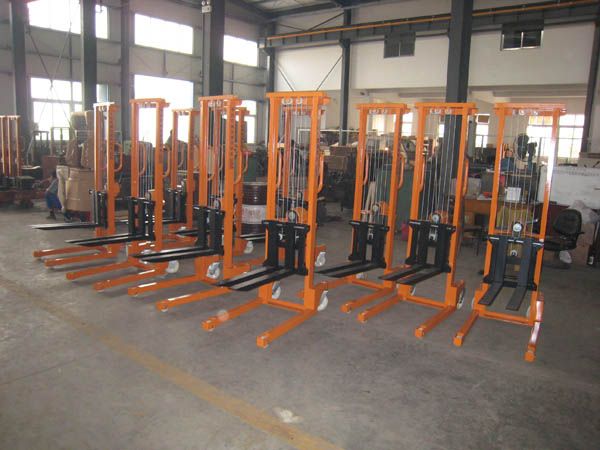

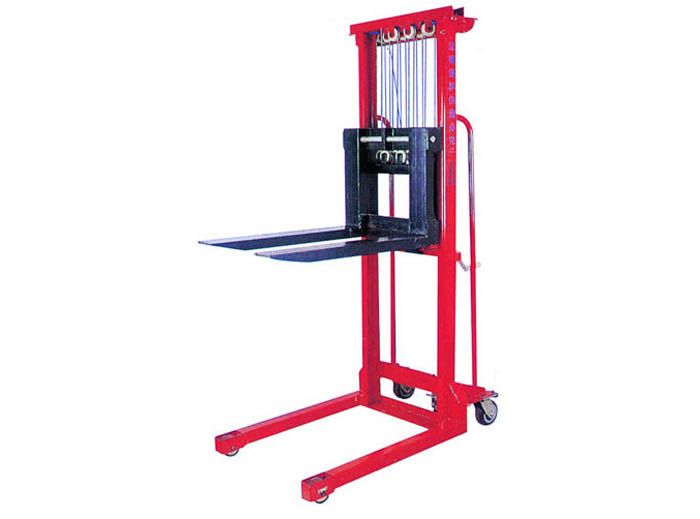

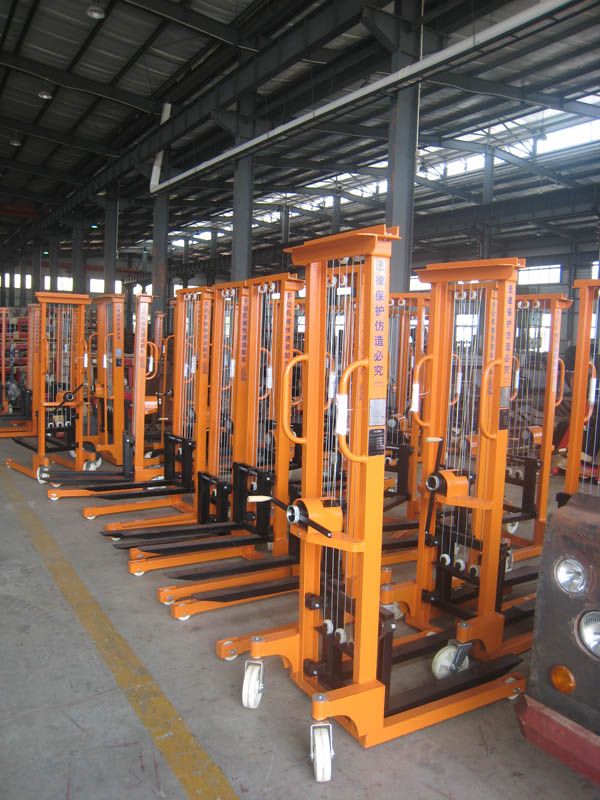

Name：CTJ1000 Manual winch stacker
Model：CTJ1000
Product Introduction：CTJ1000 Manual winch stacker

1.Simple, easy way to lift, lower and transport heavy loads with minimum effort.
2.Features adjustable width forks and outrigger legs.

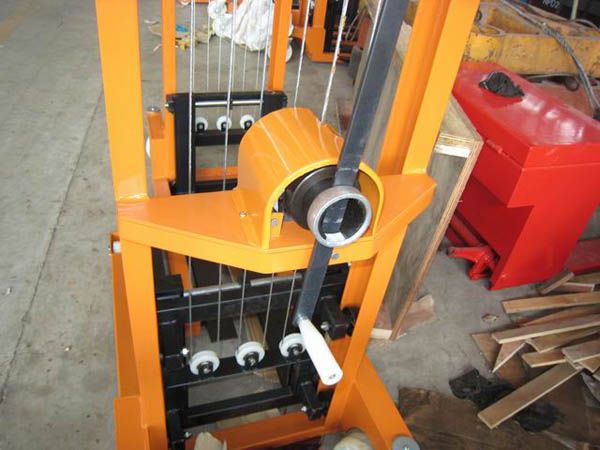

3.Low effort hand winch equipped with automatic brake systems and adjustable length handle.
4.Swivel casters feature foot brake to prevent movement.
5.Optional Steel Platform - Fits H140501. Solid steel construction, Fits over forks. Easily removed.

Model	CTJ300	CTJ500	CTJ1000 / CTJ1000A	CTJ1500
Loading capacity(kg)	300	500	1000	1500
Lifting speed (mm/sec)	0~160	0～140	0～60	0～40
Lifting height (mm)	1500	1500	1500	1500
Outline dimension (mm)	1250x620x1900	1200×620×1990	1260×680×2020	1480×800×2035
Fork length (mm)	800	800	800	900
Front wheel (mm)	φ90	φ90	φ90	φ90
Rear wheel (mm)	φ125	φ180	φ180	φ180
Mesh line (mm)	1900	φ2.8～3.5	φ2.8～3.5	φ2.8～3.5
Fork outside width (mm)	190～420	190～420	230～530	260～640
Foot Brake	No	No	No	No
Outside width of inserting leg (mm)	620	620	680	800
Loading center (mm)	400	400	400	450
Service Weight (kg)	105	106	240	290
