Home >> Products >> CPD-X Narrow Aisle Forklift

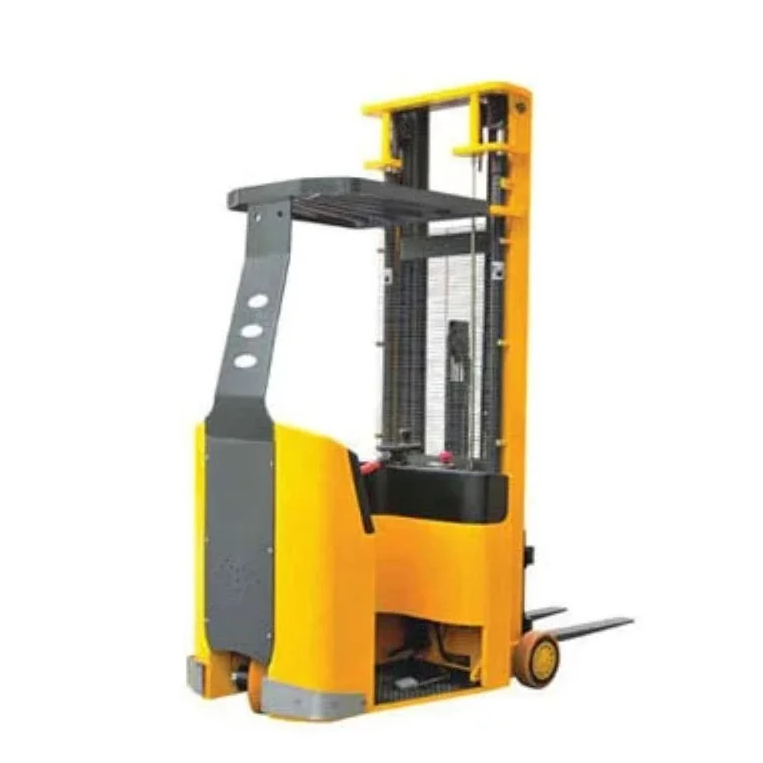

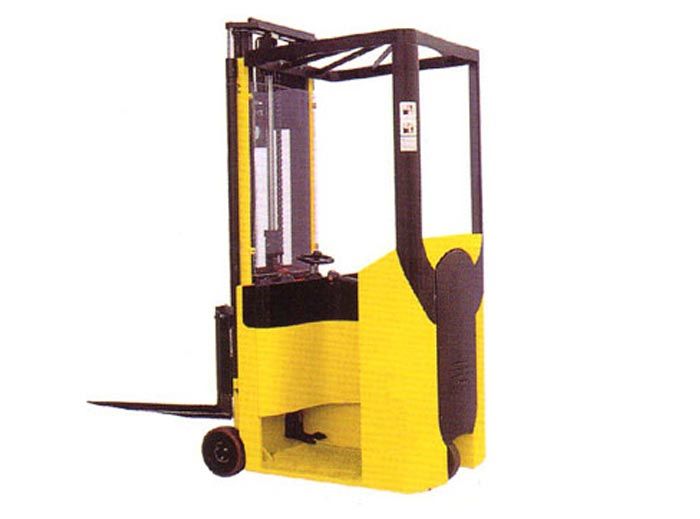

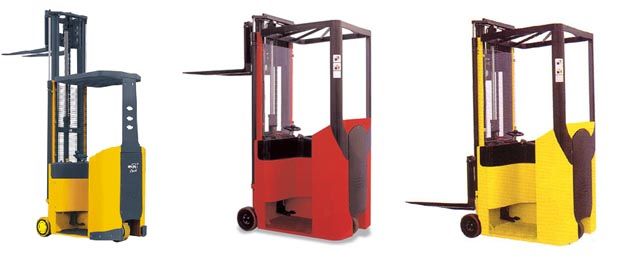

Name：CPD-X Narrow Aisle Forklift
Model：CPD10A
Product Introduction：Electromagnetic brake mechanism and frive power motor braking improves overall effciency and prolongs brake component life.Advancef control system with MOSFET delivers smooth driving speed control for percise positioning of the truck.

?¤ Turning radius 1140mm,lower noise,no pollution.

?¤ Electromagnetic brake mechanism and frive power motor braking improves overall effciency and prolongs brake component life.

?¤ Advancef control system with MOSFET delivers smooth driving speed control for percise positioning of the truck.

?¤ Hydrostatic power steering provides quiet,effortless and responsive operation for precise manoeuverability.

?¤ With regenerative braking system for driving and electronic braking system for parking.

Advantages:

?¤ Advanced AC control system with MOSFET delivers smooth driving speed control for precise.

?¤ Small turning radius,easy and smart to operate.

?¤ Lean-on compartment offer comfortable and safe driving position,reducing operator's fatigue.

?¤ With regenerative braking system for driving and electronic braking system for parking.

?¤ Low battery Protection setting prolongs service life in reversing mode and reduce the brake pedal using and reduce operatot efforts.

?¤ With deadman switch on floor to cut off the power when operator leave the from cab.

?¤ Lifting cylinders on the both of mast provides best visibility.

?¤ The optional of full hydraulic steering system and electric power steering(EPS) offers follow advantages:
Steering wheel automatic reset.
Travelling speed automatically slow down when steering.
Show the turning angles on the display.

Specifications fo SINOLIFT CPD Narrow Aisle Forklift Truck

Model		CPD10A	CPD10B
Power		electric
Operator type		standing
Capacity/rated load	Q(kg)	1000
Load centre distance	c(mm)	600	500
Lift height	h3(mm)	3000	5000
Load distance, centre of drive axle to fork	x(mm)	140	180
Wheelbase	y(mm)	975	1015
Service weight(with battery)	kg	2050	2150
Axle loading, laden front/rear	kg	2580/500	2700/500
Axle loading, unladen front/rear	kg	800/1250	950/1250
Tyres type		polyurethane
Tyre size, front		250x80
Tyre size rear		280x100
Variation of side shifter, left/right	mm	0	0
Tread,front	b10(mm)	770
Tilt of mast/fork carriage forward/backward	Grad	0
Height,mast lowered	h1(mm)	2155	2255
Free lift	h2(mm)	1600	~
Height, mast extended	h4(mm)	3565	5600
Height of overhead guard(cabin)	h6(mm)	2090
Seat height/stand height	h7(mm)	75
Height of tiller in drive position min./max.	h14(mm)	1000
Overall length	l1(mm)	2210	2250
Overall width	b1(mm)	850
Fork dimensions	s/e/l(mm)	36/100/950
Fork carriage DIN 15173,class/type A,B		II/A
Fork-carriage width	b3(mm)	560
Ground clearance,laden,below mast	m1(mm)	60
Ground clearance,centre of wheelbase	m2(mm)	50
Aisle width for pallets 1000x1200 crossways	Ast(mm)	2600	2680
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2750	2800
Turning radius	Wa(mm)	1140	1180
Internal turning radius	b13(mm)	1140	1180
Travel speed, laden/unladen	Km/h	5.8/6.0
Lift speed, laden/unladen	m/s	0.11/0.15	0.15/0.25
Lowering speed, laden/unladen	m/s	0.15/0.11	0.08/0.10
Max. drawbar pull, laden/unladen	N	2000/2050
Gradeability,laden/unladen	%	8/12
Max.gradeability,laden/unladen	%	10/15
Acceleration time,laden/unladen	s	6.5/5.5
Drive motor rating S2 60 min	kW	2.2
Lift motor rating at S3 15%	kW	3
Battery acc. To DIN 43531/35/36 A,B,C,no		DIN
Battery voltage,nominal capacity K5	V/Ah	24/360
Battery weight	Kg	355
Battery dimensions l/w/h	mm	610x278x690
Type of drive control		AC
Operating pressure for attachments	bar	120
Oil valume for attachments	l/min	6
Sound level at the driver's ear acc.to DIN 12053	dB(A)	68

Sinolift reserves the right to make any changes or modifications of pictures and specifications without giving previous notice and without incurring any obligation.
