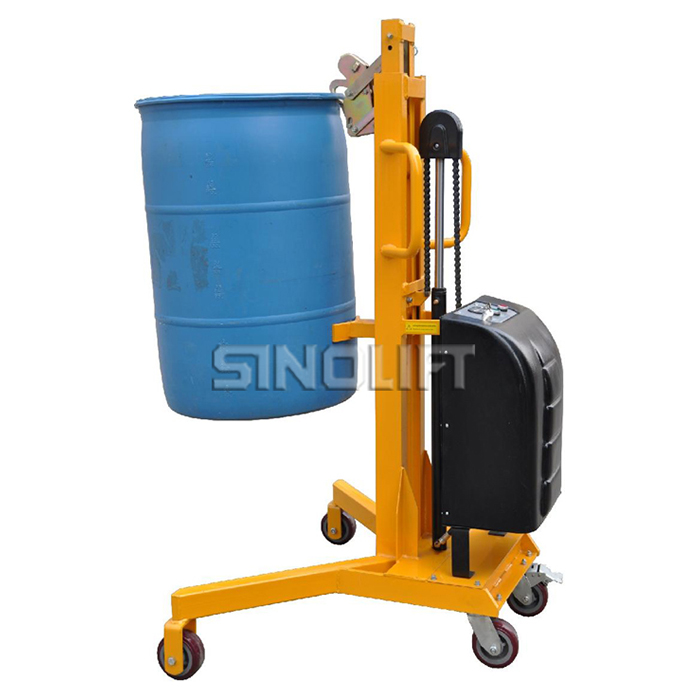

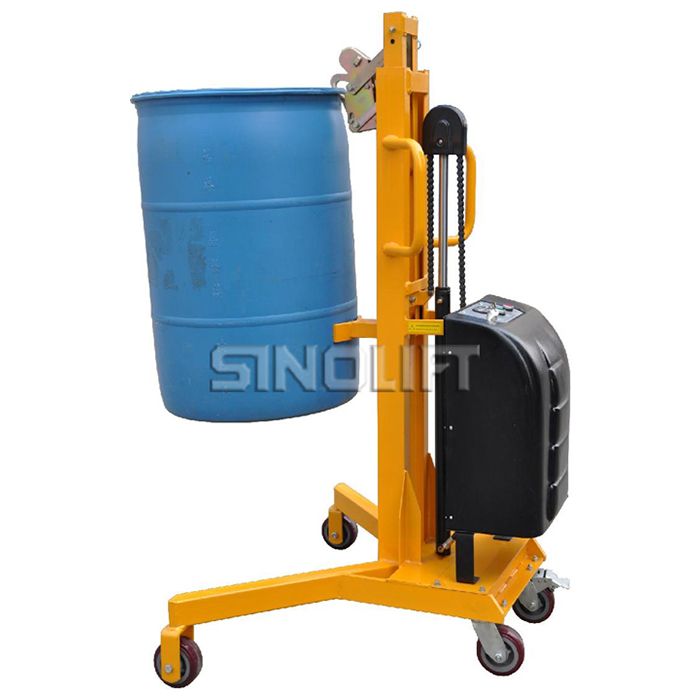

Name：DTF350E Electric Drum Porter
Model：DTF350E
Product Introduction：This type of drum porter allows easy lifting with a Hydraulic Foot Pump. The large wheels allow for easy transport even on rough floors. Easily lifts the drum with a hydraulic foot pump transporting.

* High-quality cylinders, labor-saving and quickly.

* Clamping drums automatically during the lift process.

* Work safely and reliable.

* Apply to handling the oil drums stacked on the pallets corner , and carry drums from the diagonal direction of tray.

Model		DTF350E
Load Capacity	kg	350
Drum Size		30-55 gallon steel （Φ450x700~Φ572*900）steel or 200L Plastic
Lifting Height	mm	1100
Leg Inner Width	mm	950
Wheel Size	mm	Φ125/Φ125
Motor/Battery	V/W/Ah	12/800/60
Overall Dimension	mm	880x1150x1880
Net Weight	kg	155
