CBE2.0C Full Electric Pallet Truck

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

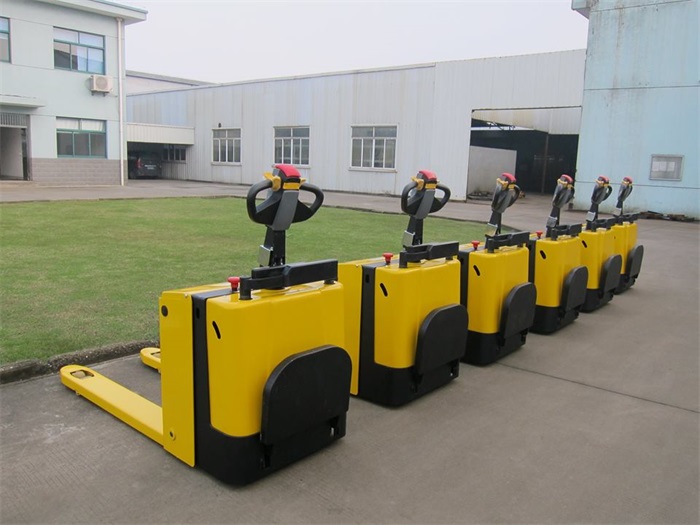

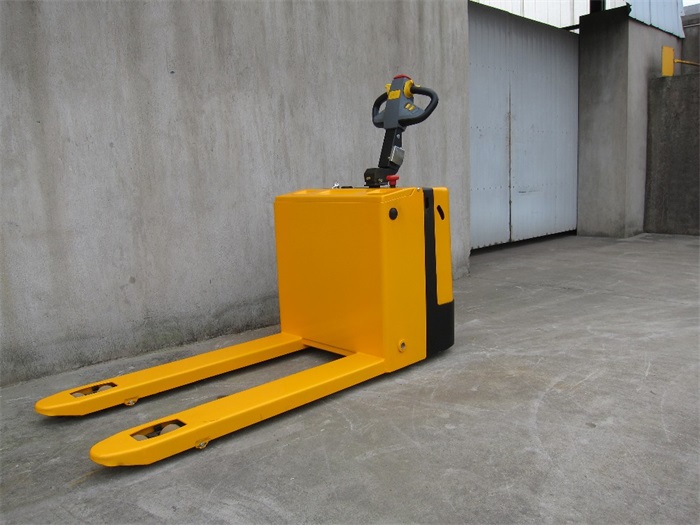

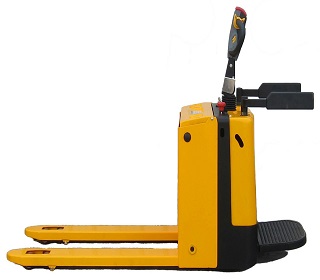

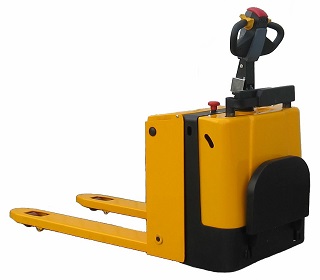

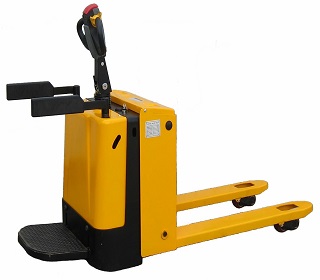

Name：CBE2.0C Full Electric Pallet Truck
Model：CBE2.0C
Product Introduction：1.Full electric drive and lift 2.With Ride-on platform and arm protection 3.LPT20C truck is a full electric truck designed for horizontal pallet movement in medium intensity applications 4.Maintenance free batteries and optional built-in charger make the machine easy to use 5.Economic but very reliable 6.Both DC and AC drive system are available, DC is standard.

Features:

1.Full electric drive and lift

2.With Ride-on platform and arm protection

3.LPT20C truck is a full electric truck designed for horizontal pallet movement in medium intensity applications

4.Maintenance free batteries and optional built-in charger make the machine easy to use

5.Economic but very reliable

6.Both DC and AC drive system are available, DC is standard.

Model			CBE20C
Load capacity	Q	(kg)	1500
Load center distance	C	(mm)	600
Overall length	L1	(mm)	1725
Overall width	W	(mm)	720
Overall height	H1	(mm)	1287
Fork dimension	L×b×m	(mm)	1150×160×56
Outside width of forks	D	(mm)	540	680
Ground clearance	x	(mm)	30
Wheel material			PU
Driving wheel size		(mm)	Ø250×80
Front wheel size		(mm)	Ø78×70	Ø70×70
Balance wheel size		(mm)	Ø100×40
Min. steering radius	Wa	(mm)	1540
Min. width of aisle	Ast	(mm)	1910
Min. height of forks	G	(mm)	85	75
Max. height of forks		(mm)	205	195
Max. Speed (laden/unladen)		(km/h)	4.0/5.0
Gradeability		(%)	8
Brake type			Electromagnetic
Power of driving motor		(kw)	1.2
Power of lift motor		(kw)	0.8
Electric controller			Curtis 1207B
Battery capacity/voltage		(Ah/ V)	135/24
Net weight (including battery)		(kg)	395
