Home >> Products >> HE "E" Shape Electric Stationary Lift Table

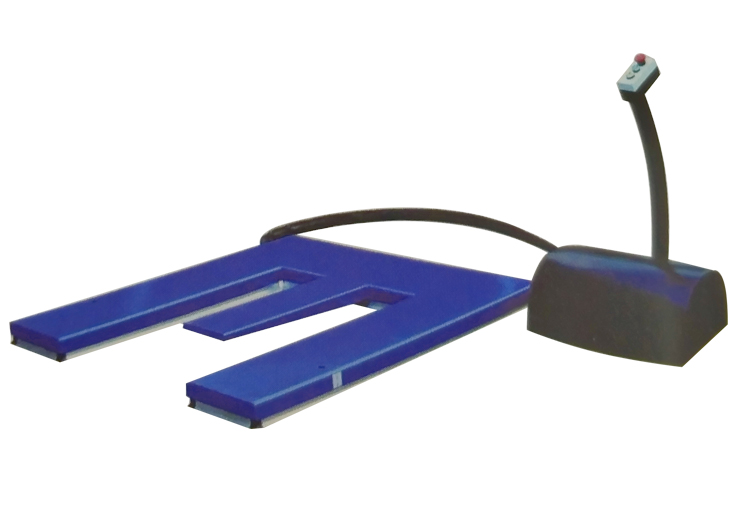

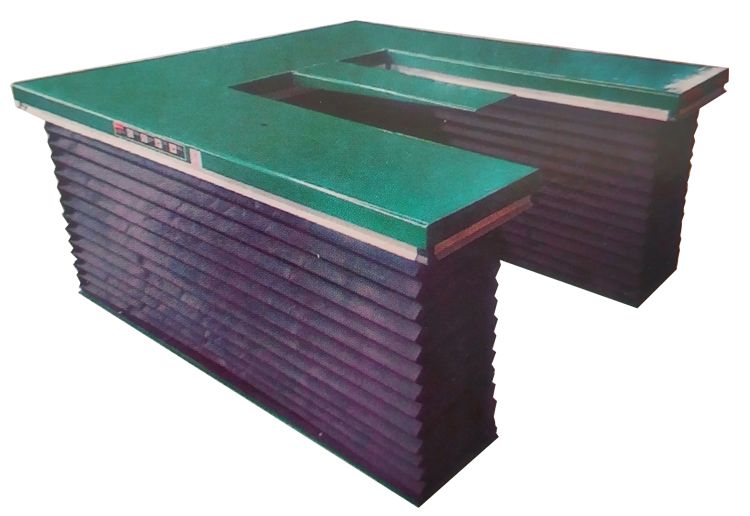

Name：HE "E" Shape Electric Stationary Lift Table
Model：HE
Product Introduction：High Quality power unit for stable and safe lifting. E shaped table are specially for handling pallets,no need for a pit or load ramps. Meet EN1570 norm and ANSI/ASME safety standard.

High Quality power unit for stable and safe lifting.
E shaped table are specially for handling pallets,no need for a pit or load ramps.
Meet EN1570 norm and ANSI/ASME safety standard.

Model	HE1000	HE1500	HE2000
Capacity	1000	1500	2000
Platform Size	1450*1140	1600*1180	1600*1180
Size A	280	300	300
Size B	1080	1194	1194
Size C	5820	580	580
Lowered Height	85	105	105
Raised Height	860	860	860
Lift Time	25-35	30-40	30-40
Power Pack	380V/50HZ AC 0.75Kw	380V/50HZ AC 1.5Kw	380V/50HZ AC 2.2Kw
Net Weight	285	390	420
