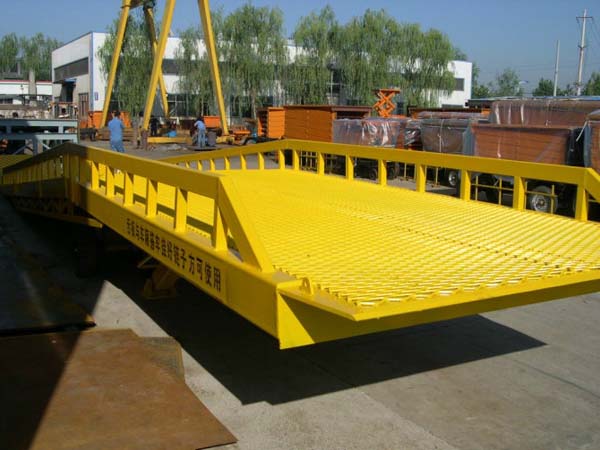

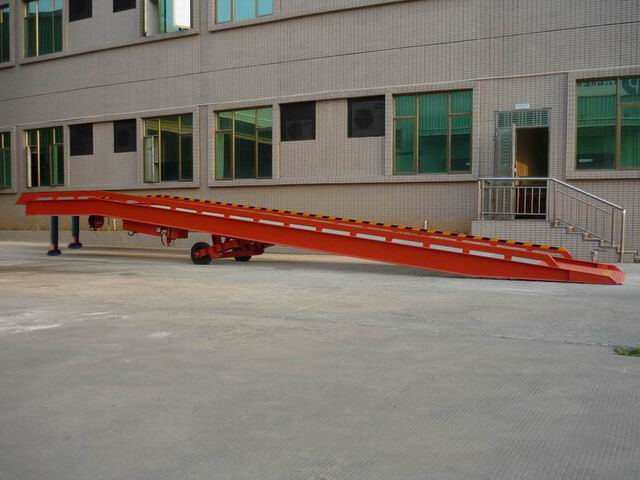

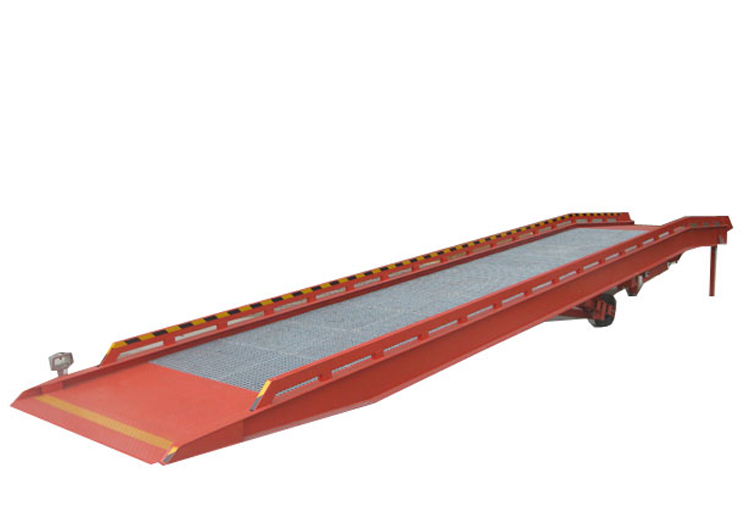

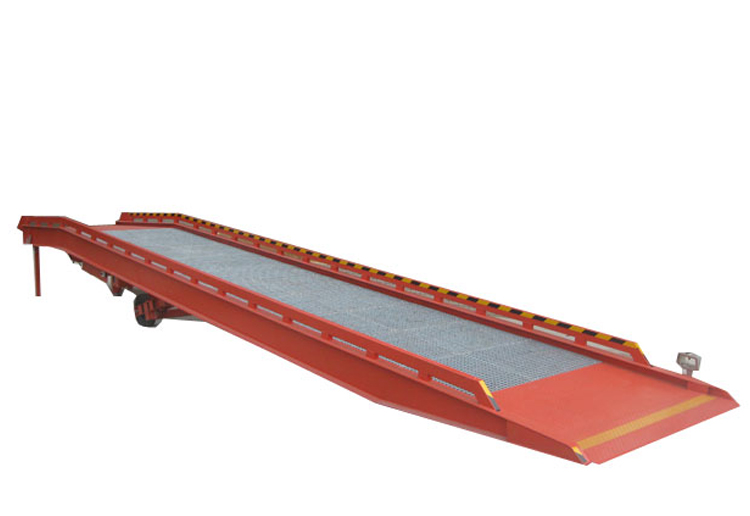

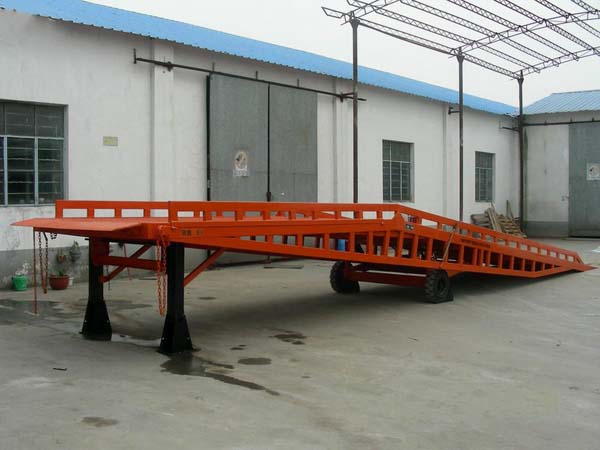

Name:EMQY Mobile boarding bridge
Model:EMQY
Product Introduction:Equip with both hand and power hydraulic pump and hand control valve The start button of power hydraulic pump is jogging controlled, voltage is 24V. Equip with cabled twist for long-distance operation Hand hydraulic pump can be used if power is off.

· Equip with both hand and power hydraulic pump and hand control valve

· The start button of power hydraulic pump is jogging controlled, voltage is 24V.

· Equip with cabled twist for long-distance operation

· Hand hydraulic pump can be used if power is off.

Model Capacity(t) Deck Size Height(mm)
A B C D E F G H I J
EMQY6-0.8 6 7000 2200 1000 300 11500 2000 2080 1200 500 1700
EMQ8-0.8 8 7000 2200 1000 300 11500 2000 2080 1200 500 1700
EMQY10.08 10 7500 2400 1000 300 11500 2000 2100 1200 500 1700
