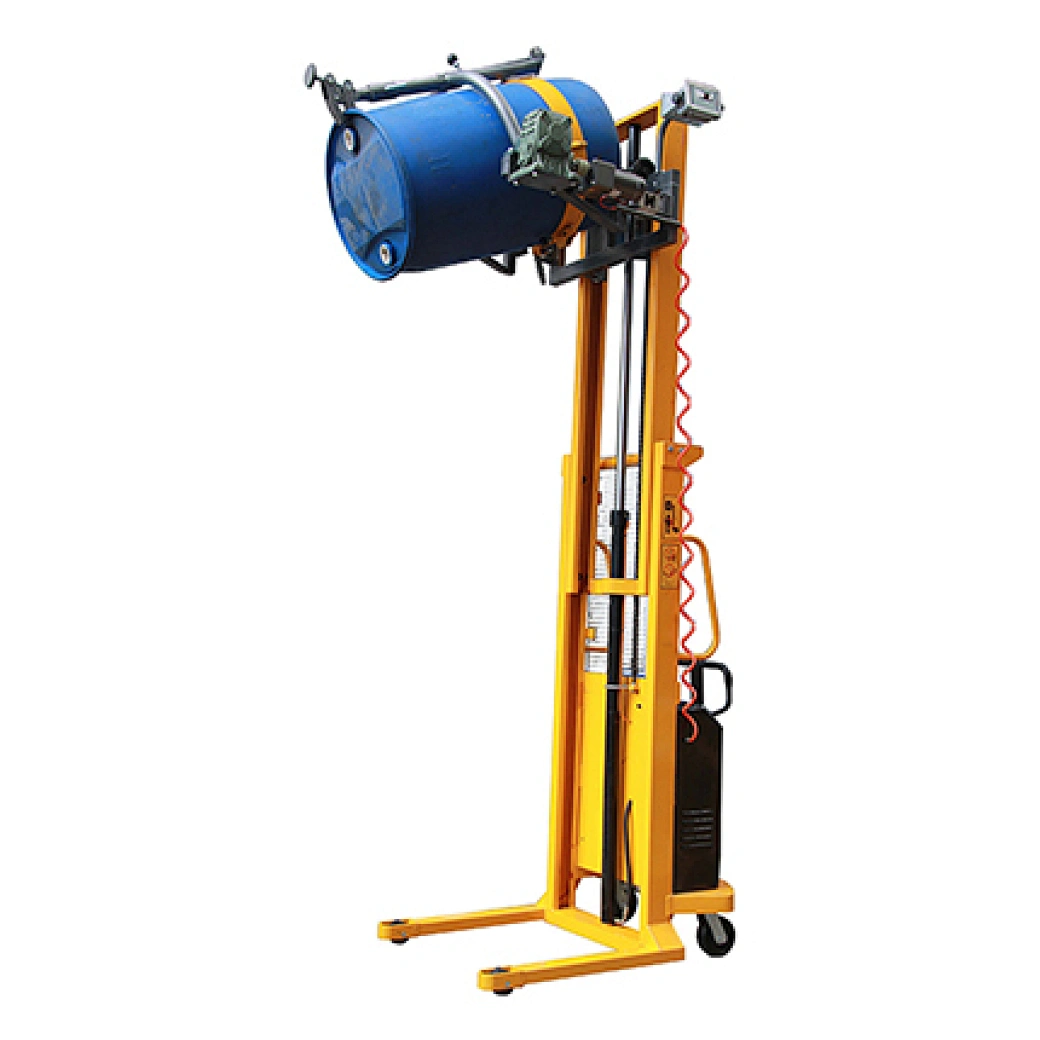

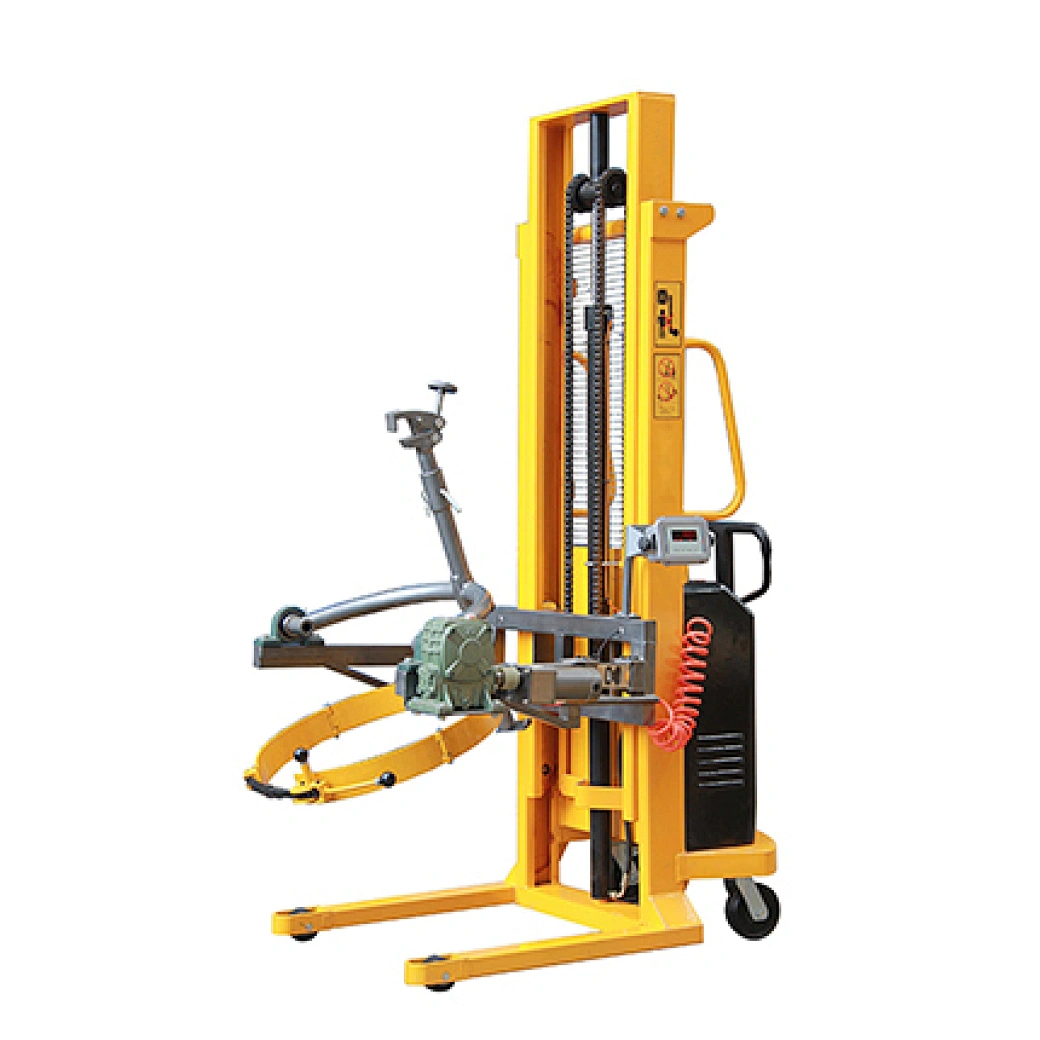

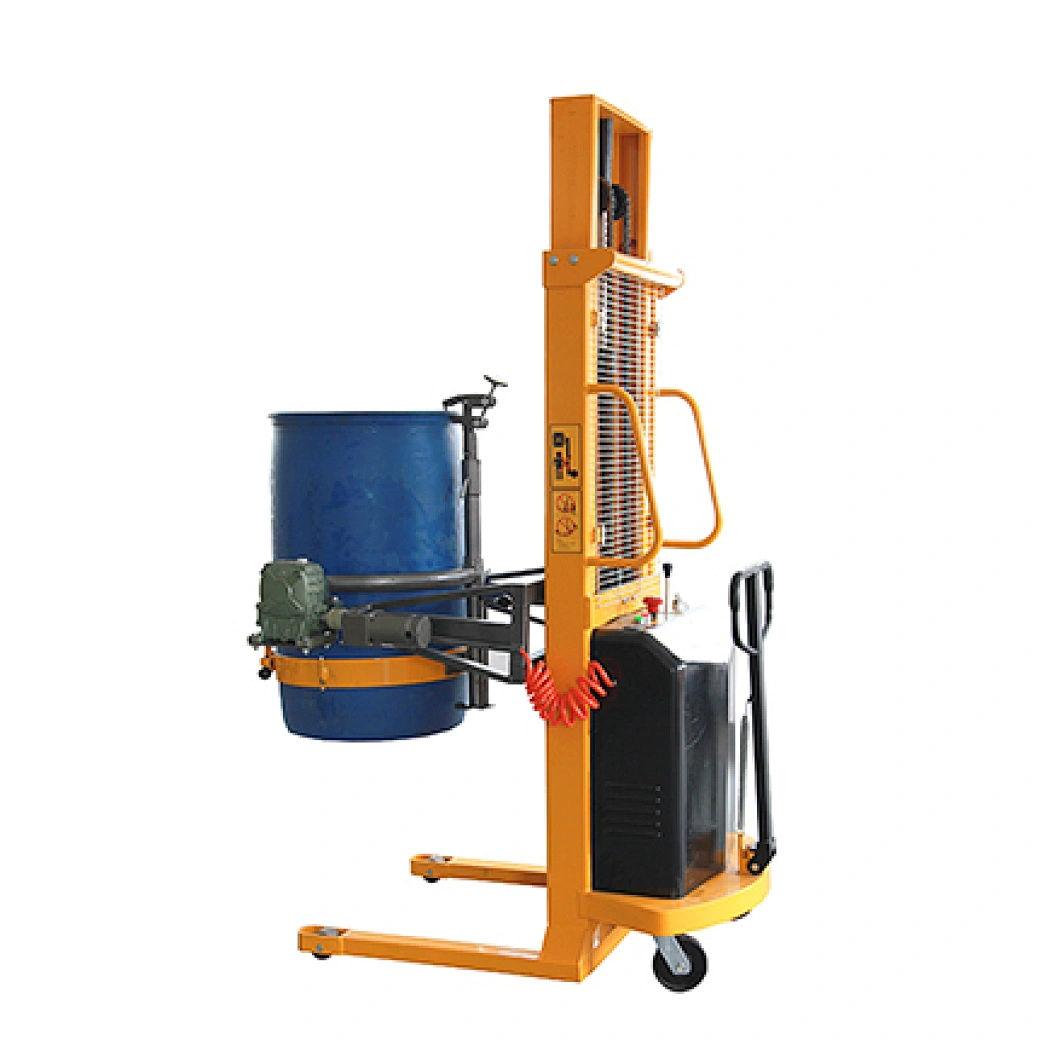

Name：YL450-1 Semi-Electric Drum Dumper with Scale
Model：YL450-1
Product Introduction：Two-stage vertical-Lift drum pourers make max lifting height to 2450mm. Power lift and power rotate 180 °. With Scale, which can control pouring & measure capabilities, accuracy: ±3‰.

Features:

1. High quality hydraulic power unit and maintenance-free battery.

2.Two-stage vertical-Lift drum pourers make max lifting height to 2450mm.

3. Power lift and power rotate 180 °.

4.With Scale, which can control pouring & measure capabilities, accuracy: ±3‰.

5. Combined Eagle-grip and Anchor ear structure, suitable for electric rotation of steel drums and plastic drums.

Model		YL450-1
Loading Capacity	kg	450
Drum size		55 gallon ( (Ø572x900) steel, 210L plastic
Wheel Dimension	mm	Ø8055/Ø15050
Inner/Outer Width of Front Leg	mm	630/810
Turning Radius	mm	1620
Pump Unit Power	kw/h	1.5
Battery Parameter	Ah/V	120/12
Lifting Height	mm	2450
Lifting Speed	mm/s	120
Outline Dimension	mm	1680x1000x1880
Net weight	kg	343
