There are many practical uses for burden carriers in any industry. Whether for retail, hospitality, security, maintenance or professional sports, a burden carrier is an effective way to transport a heavy load.
Burden carriers have a load capacity that is convenient for your quick cargo transportation needs. Some burden carriers can tow extra weight as well. Capacities vary with each model; some burden carrier models are built for narrow spaces such as warehouses. Based on your business needs, choose the carrier model that is right for you!
SINOLIFT Handling proudly offers a variety of economical, innovative and efficient burden carriers available on the market today.
|

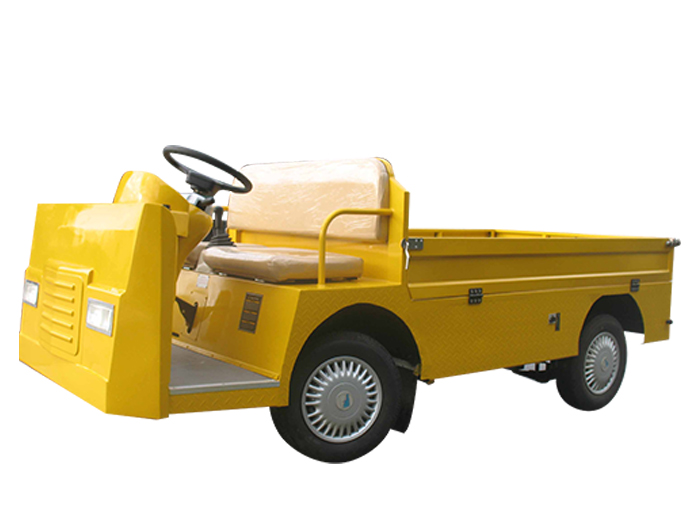

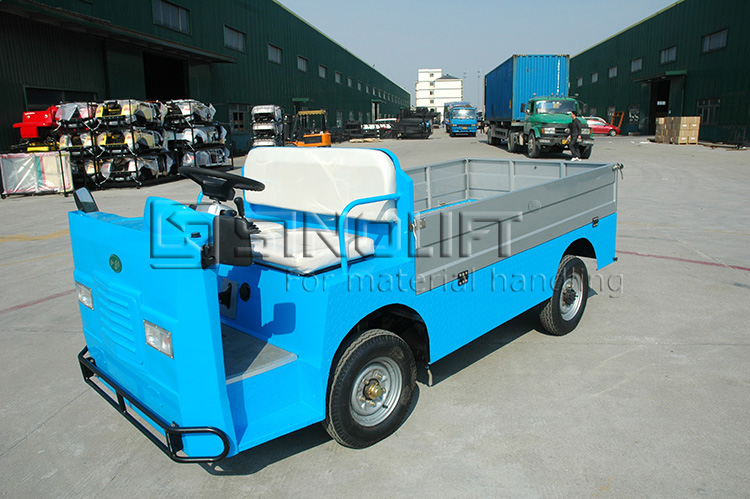

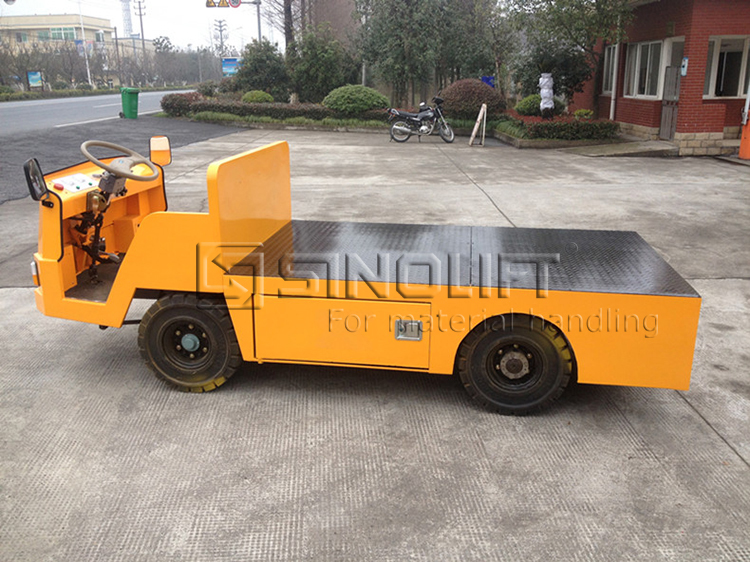

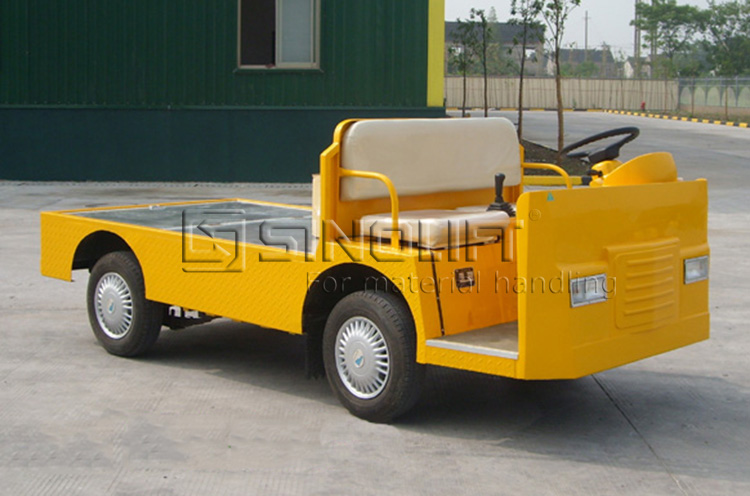

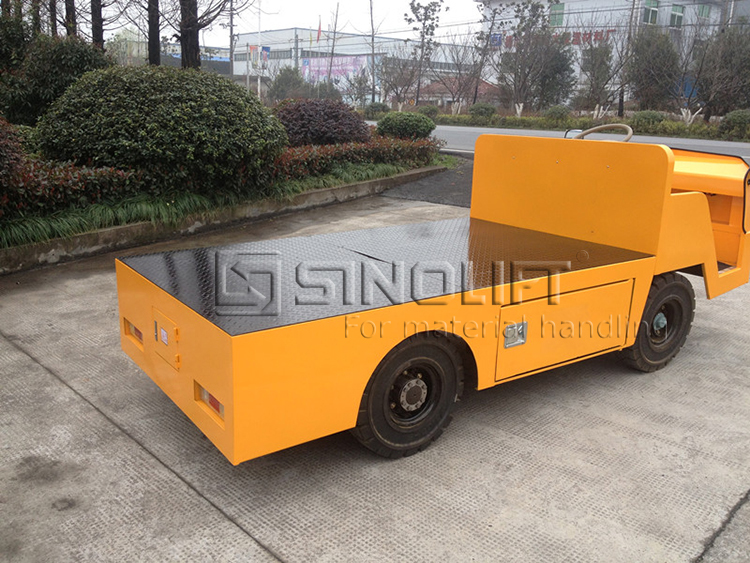

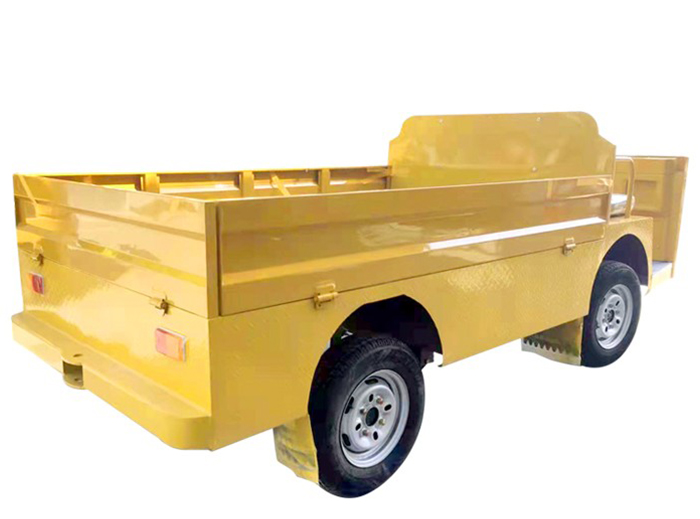

Model
|
SH-1DB-XS
|
|
Frame & Body
|
Welded steel with powder coating
|
|
Body & Finish
|
Diamond plate pattern.
|
|
Color
|
Orange or Blue
|
|
Dimmension
|
|
|
Cargo Deck Length
|
200 cm - can be up to 210 cm
|
|
Overall Length
|
3415 mm
|
|
Overall Width
|
1350 mm
|
|
Min.Turning Radius
|
4300 mm
|
|
Ground Clearance (at differential)
|
12 cm
|
|
Cargo Deck Width
|
135 cm
|
|
Cargo Deck Load Height
|
70 cm
|
|
Cargo Deck Material
|
steel
|
|
power
|
|
|
Power Source
|
48-volt DC
|
|
Motor Type
|
Shunt Wound
|
|
Horsepower (motor)
|
3.0kw
|
|
Electric System
|
48 Volt
|
|
Batteries (qty/type)
|
Eight 48 Volt Deep Cycle, Swing Out
Battery Trays
|
|
Key or Pedal Start
|
Key
|
|
Battery Charger (mobile)
|
48 V, Q120 VAC, (UL & CSA approved )
|
|
Speed Controller
|
Solid State 400 Amp Rated Precision Drive
System (PDS)
|
|
Drive Train
|
Motor Shaft Direct Drive
|
|
Transaxle
|
Differential with helical gears
|
|
Gear Selection
|
Dash Mounted Forward-Neutral-Reverse
|
|
Rear Axle Ratio
|
0.636122685
|
|
Performance
|
|
|
Capacity
|
2-person
|
|
Weight
|
650 kg
|
|
Cargo Deck Load Capacity
|
1000 kg (1 ton)
|
|
Max. Speed
|
35km/h
|
|
Gradebility
|
20%
|
|
Outside Clearance Circle
|
6.7 m
|
|
Intersecting Aisle Clearance
|
213 cm
|
|
Ground Speed (level ground)
|
13 mph ± 0.5 mph (21 kph ± 0.8 kph)
|
|
Steering & Suspension
|
|
|
Steering
|
Worm gear
|
|
Front Suspension
|
Independent suspention, transverse leaf
spring, shock absorbers
|
|
Rear Suspension
|
Leaf springs & shock absorbers
|
|
Service Brake
|
Rear and Front Wheel Hydraulic Drum.
|
|
Parking Brake
|
Hand-operated mechanical
|
|
Front & Rear Tires
|
600 - 9
|
