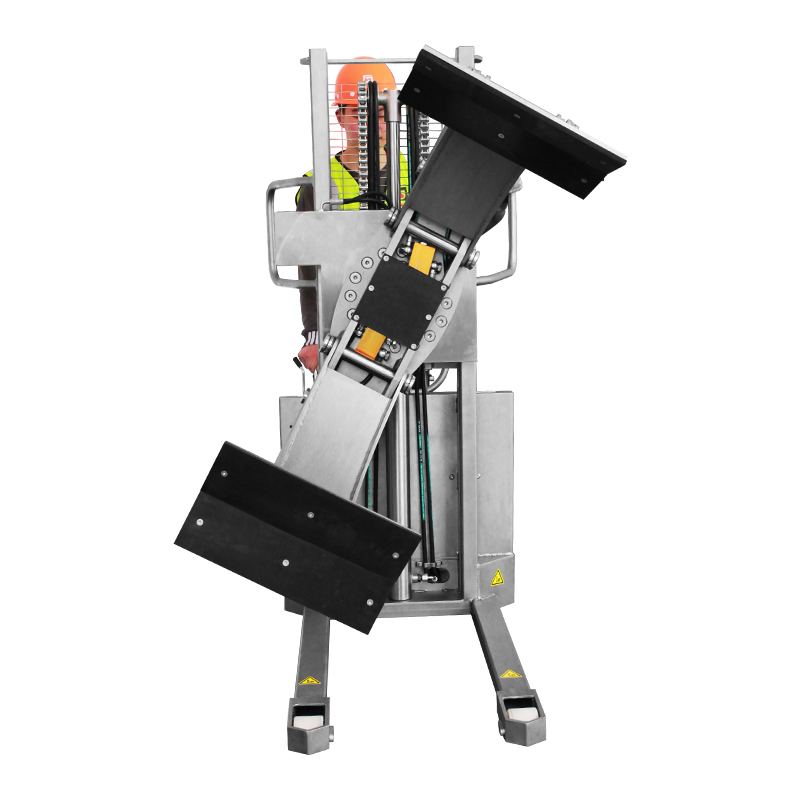

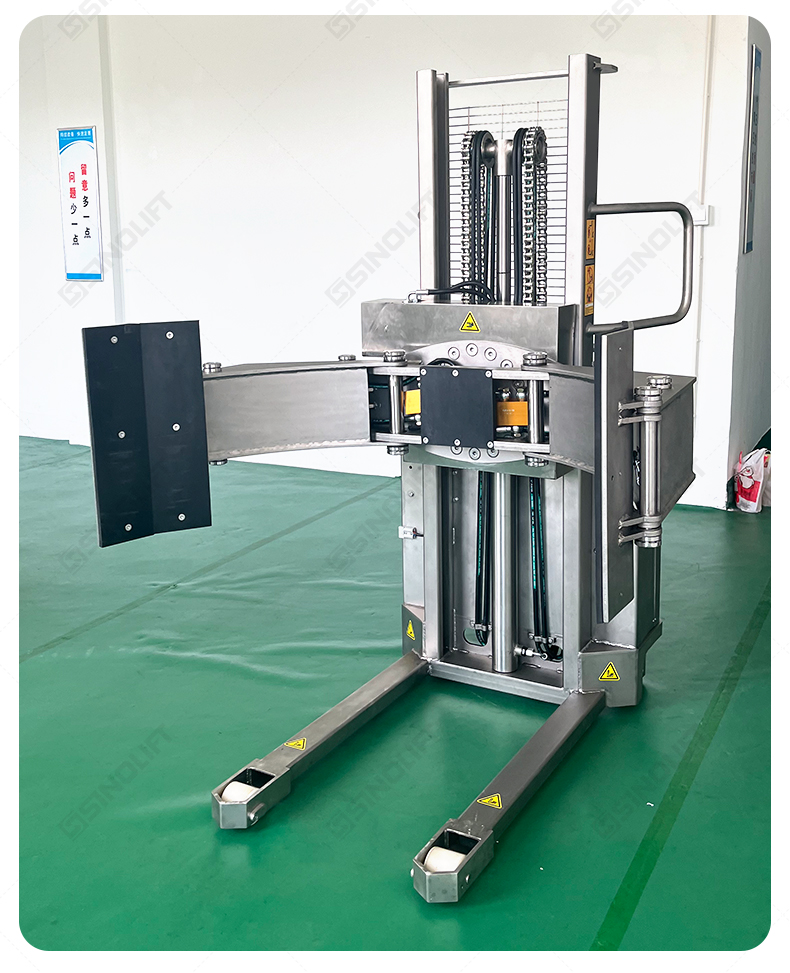

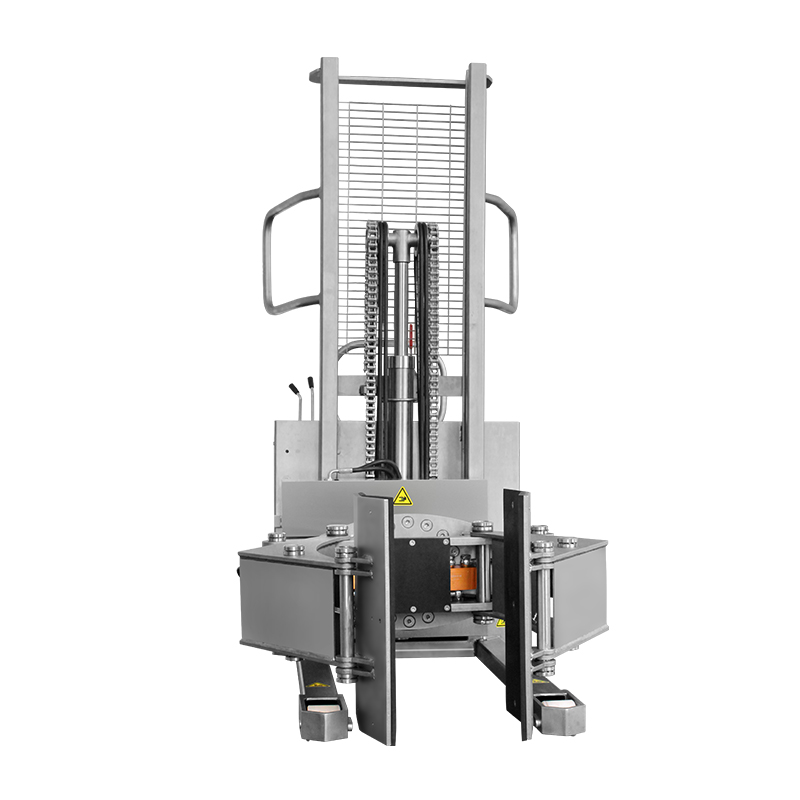

Name:CTD1000SR Semi-Electric Clamp Roll Lifter (Stainless Steel)
Model:CTD1000SR
Product Introduction:This Semi-Electric Clamp Roll Lifter is a versatile and reliable solution for various industries, designed to make material handling more efficient and safer while saving valuable time.

Product Name
CTD1000SR Semi-Electric Clamp Roll Lifter (Stainless Steel)

Features


1. 304 Stainless Steel: Sleek & Durable | Waterproof & Corrosion-Resistant

2. Electric Hydraulic Lift with Smart Design: Push-Pull Operation Saves Time and Boosts Efficiency

3. Reinforced Hydraulic Cylinder: Ensures a Tighter, Safer Grip

4. 360° Rotation: Offers Full Movement Flexibility

5. Round Clamp: Specialized for Handling Round Materials

6. 3-in-1 Functionality: Transport, Stack, Rotate

7. Smart Control Panel: Includes Lift Speed Controller, Battery Display, and Clamp Tightness Adjuster

8. High-Quality Casters: Wear-Resistant and Durable

9. 360° Swivel Wheels: Easy Maneuvering with Low Rolling Resistance


Applications


Warehouse Storage

Dock Handling

Supermarket Stocking

Workshop Loading


This Semi-Electric Clamp Roll Lifter is a versatile and reliable solution for various industries, designed to make material handling more efficient and safer while saving valuable time.


Model CTD500-R1000S
Max. Capacity kg 500
Drum Diameter Range mm Φ400-Φ1000
Maximum Lifting Height (Cylinder in Horizontal Position) mm 1300
Minimum Height (Cylinder in Vertical Position, Distance from Center of Drum to the Ground) mm 460
Minimum Height (Cylinder in Horizontal Position, Distance from Boom Center to Ground) mm 260
Minimum Height (Cylinder in Vertical Position, Minimum Ground Clearance from Drum Bottom) mm 0
Clamp Opening Range(Min-Max) mm 380-1100
Rotation Angle ° 360
Wheel Material Nylon
Front Wheel mm Φ80
Rear Wheel mm Φ125
Traction Motor kW 1.6
Lift Motor W Manual
Battery V/Ah 12V/93Ah
Charger V/A 12V/20A
Lift Speed Adjustable
Lower Speed Adjustable
Weight kg 350
