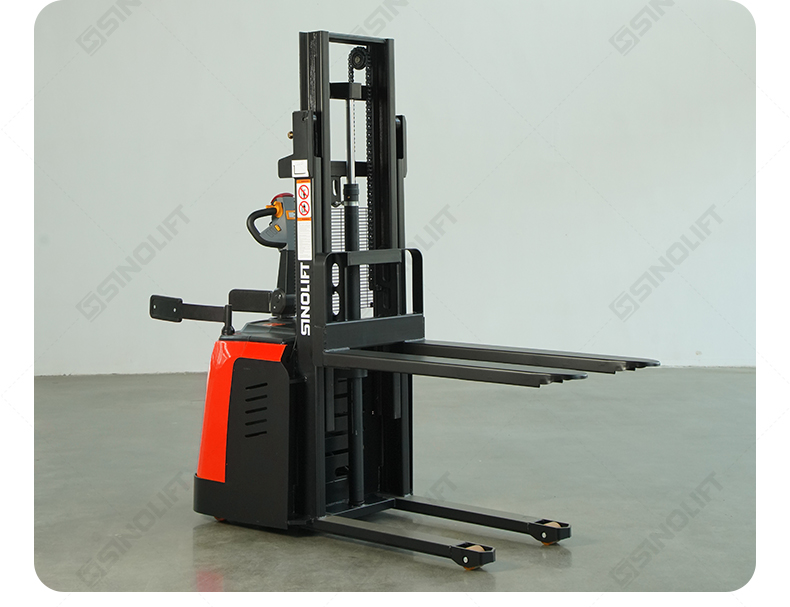

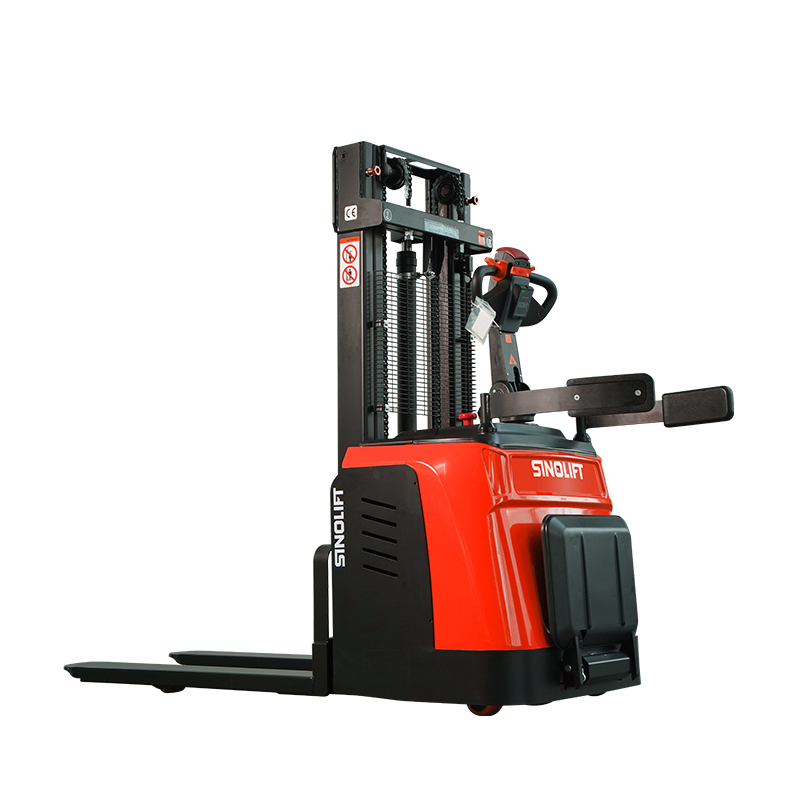

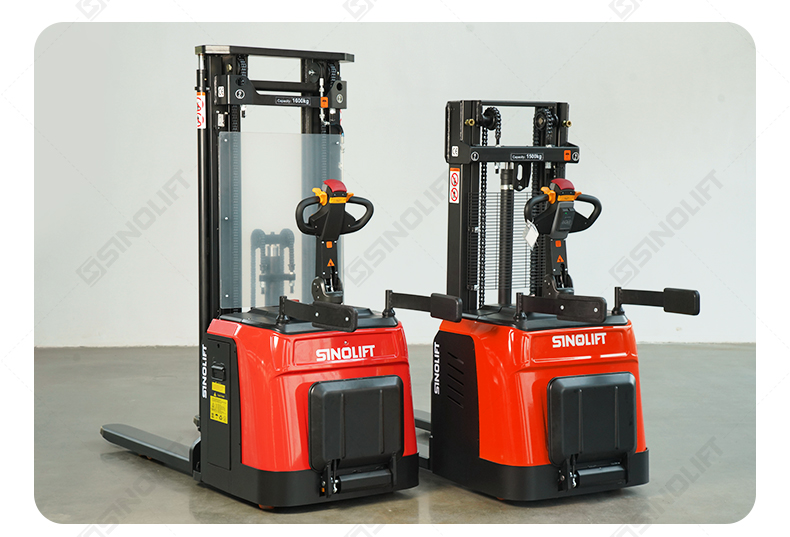

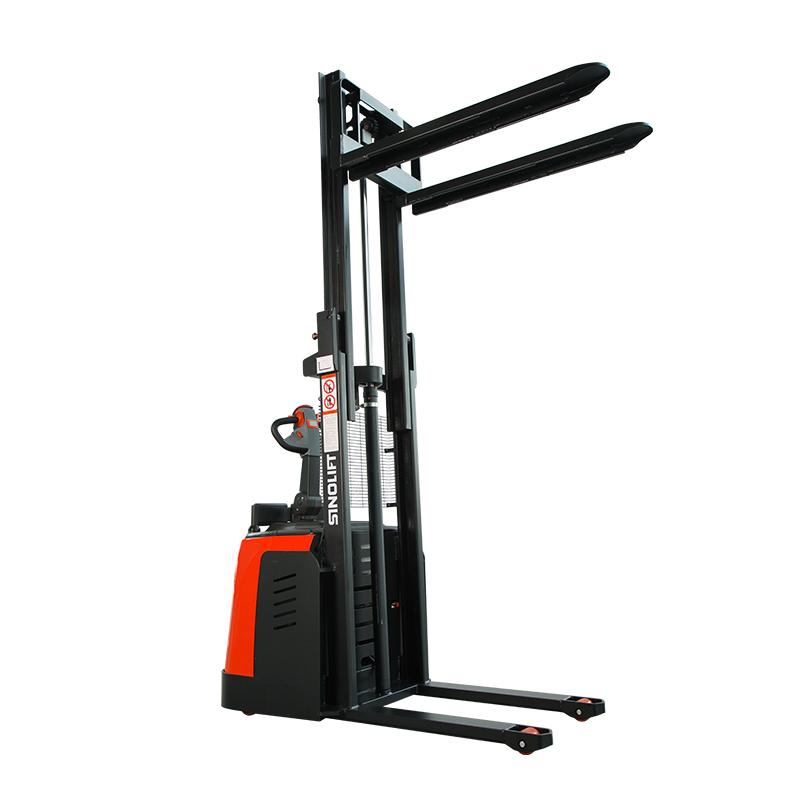

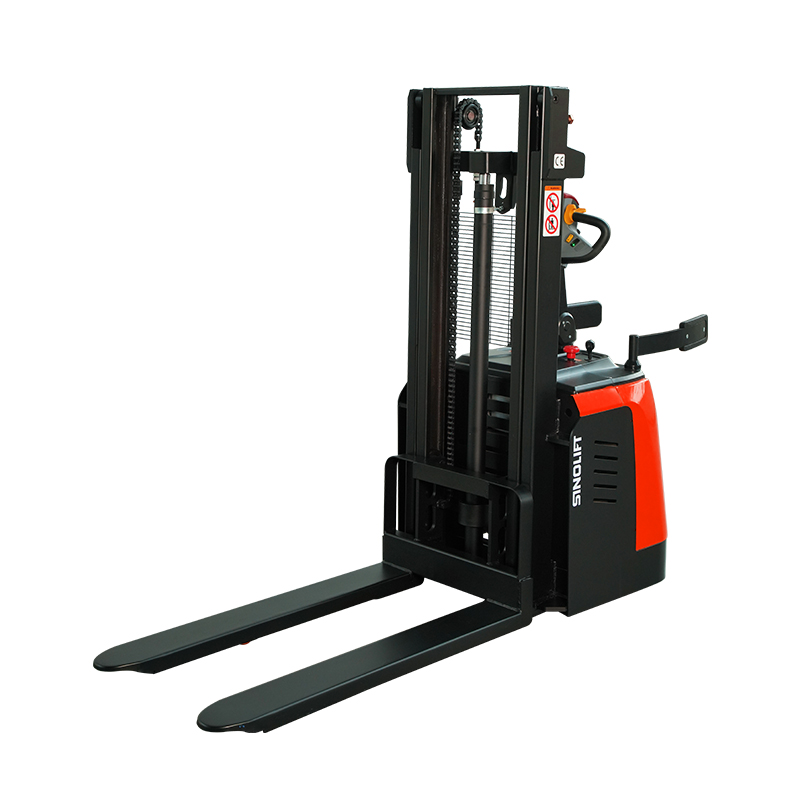

Name:CDD15P-Li Stand-On Pallet Stacker With Standard Mast
Model:CDD15P-Li
Product Introduction:The Electric Hydraulic Pallet Jack offers superior stability and powerful lifting capabilities, designed for fast, secure, and efficient material handling.

Product Name

CDD-15P-Li Stand-On Pallet Stacker With Standard Mast


Product Introduction
The Electric Hydraulic Pallet Jack offers superior stability and powerful lifting capabilities, designed for fast, secure, and efficient material handling. With its upgraded features, including an enhanced load capacity of up to 2 tons, it guarantees a smoother and more productive workflow. This versatile pallet jack allows operators to either ride or walk alongside, making it a perfect choice for businesses aiming to boost operational efficiency while reducing the physical strain on their workforce.


Highlights

  1. Load Capacity: Up to 1.5~2 tons for efficient heavy lifting.
  2. Upgraded Stability: New features designed for enhanced stability and secure handling.
  3. Electric Hydraulic Lifting: Smart design with push-pull electric lifting for faster and safer operation.
  4. Time-Saving: Speeds up loading and unloading processes, significantly improving work efficiency.
  5. Enhanced Load Capacity: 8cm diameter enlarged sealed oil cylinder for more powerful lifting.
  6. Reinforced Structure: 16mm reinforcement rib for increased durability and strength.
  7. Side-Pull Battery Pack: 24V/150Ah Lithium Iron Phosphate battery, providing accurate capacity ratings to meet full-day work demands.
  8. Easy Maintenance: Hood opens for easy access to repair or replace electronic components, with self-diagnostic functionality ensuring vehicle reliability and safety.
  9. Foldable Platform: Switch between ride-on or walk-along mode to reduce operator workload and boost efficiency.
  10. Emergency Switch: Simple, easy-to-use controls for immediate safety response.
SINOLIFT CDD-P Series Fully Electric Stacker Technical Specifications
Parameter Unit CDD15P-Li
Model CDD15P-Li
Rated Load Capacity kg 1500
Load Center Distance mm 500
Weight (with Battery) kg 620
Front Wheel Size mm (Ø×W) Ø80×70
Rear Wheel Size mm (Ø×W) Ø115×55
Drive Wheel Size mm (Ø×W) Ø210×70
Rear Wheel Track mm 625
Wheelbase mm 1270
Lifting Height mm 1600-4000
Lowered Mast Height mm 2030-2530
Handle Height from Ground mm 1450
Free Lift Height mm ~
Max. Operating Height mm 2030-4460
Lowered Position Height mm 90
Overall Length mm 2030
Body Width mm 820
Fork Dimensions (T/W/L) mm 55/160/1150
Fork Spread mm 560/680
Min. Ground Clearance mm 30
Aisle Width (1000×1200 pallet) mm 2230
Aisle Width (800×1200 pallet) mm 2300
Turning Radius mm 1560
Travel Speed (loaded/unloaded) km/h 4/4.5
Lifting Speed (loaded/unloaded) mm/s 100/120
Lowering Speed (loaded/unloaded) mm/s 120/100
Gradeability (loaded/unloaded) % 3/5
Brake System Electromagnetic
Drive Motor Power kW 0.75
Lift Motor Power kW 2.2
Battery Voltage/Capacity V/Ah 24/(150-230)
Battery Weight kg 25×2
Steering System Electronic Steering
Noise Level (DIN12053) dB(A) <70
