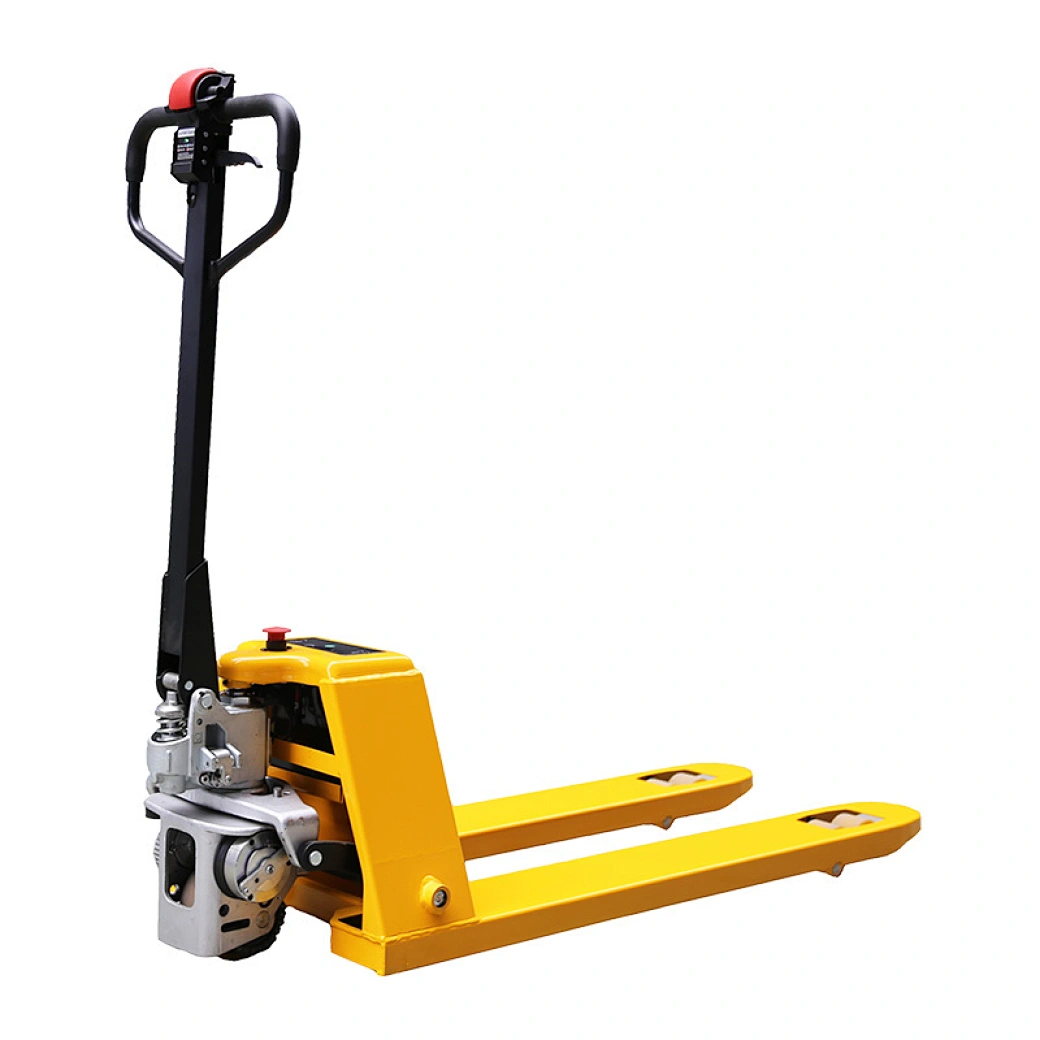

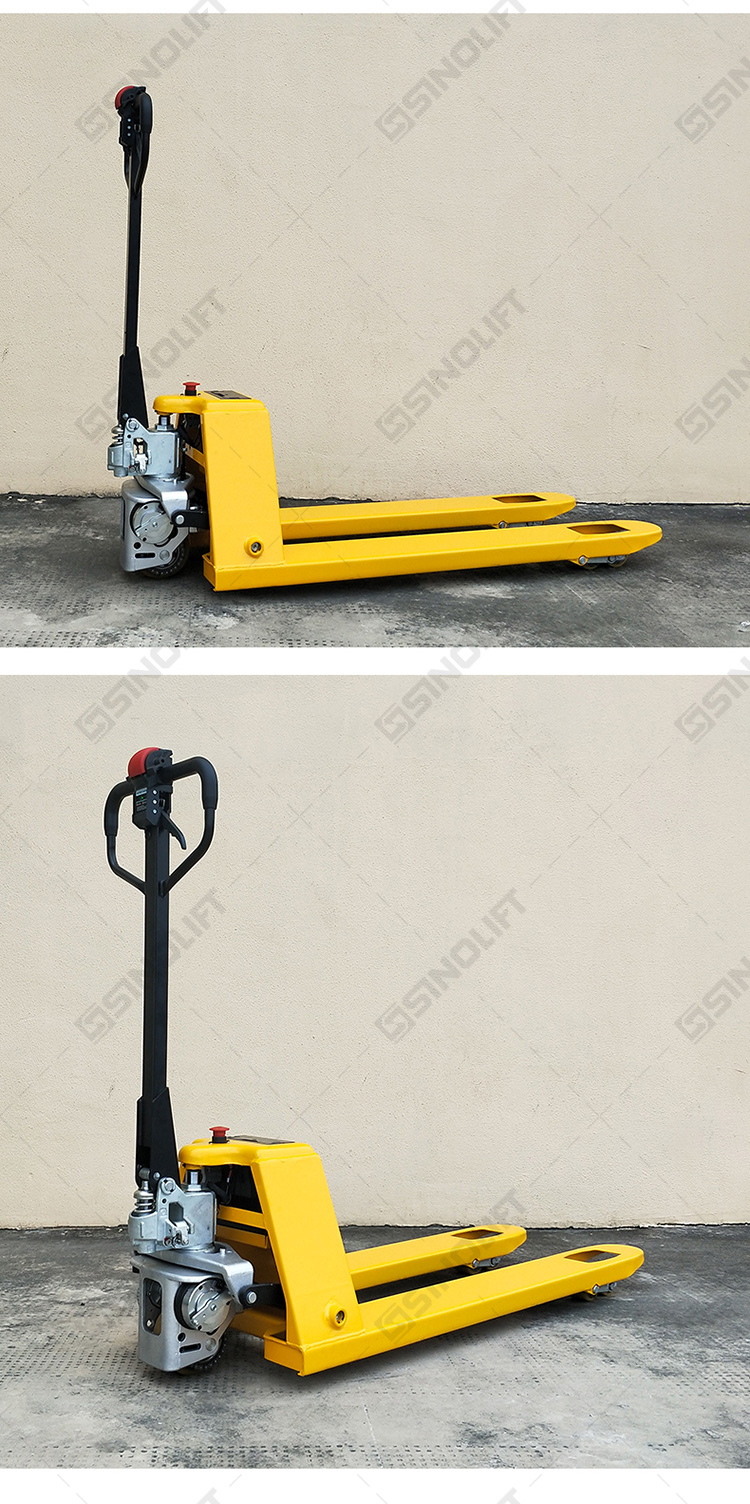

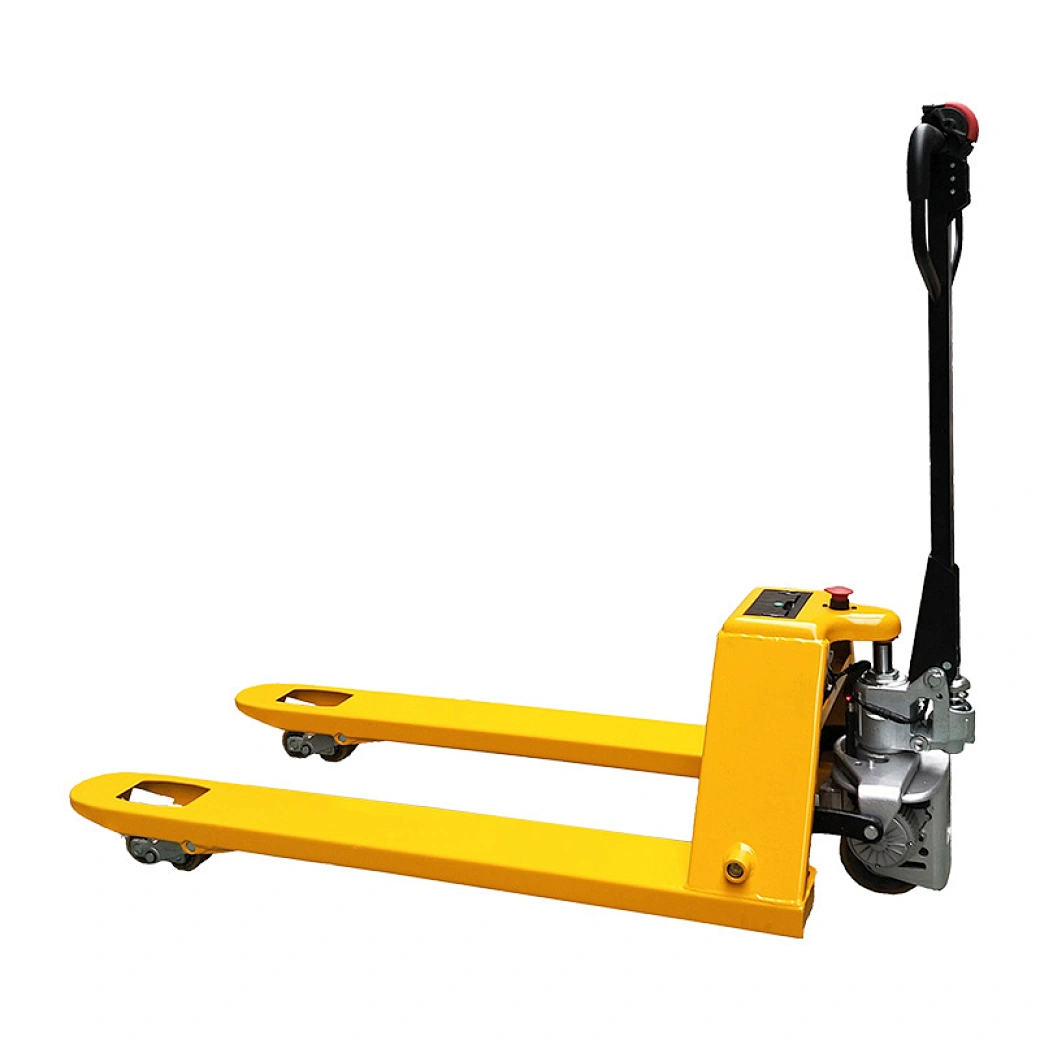

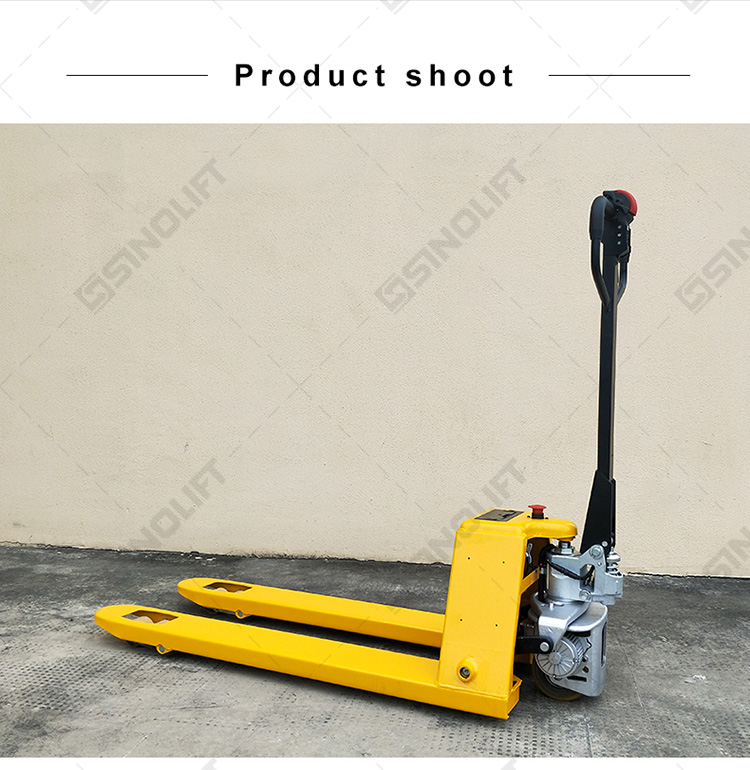

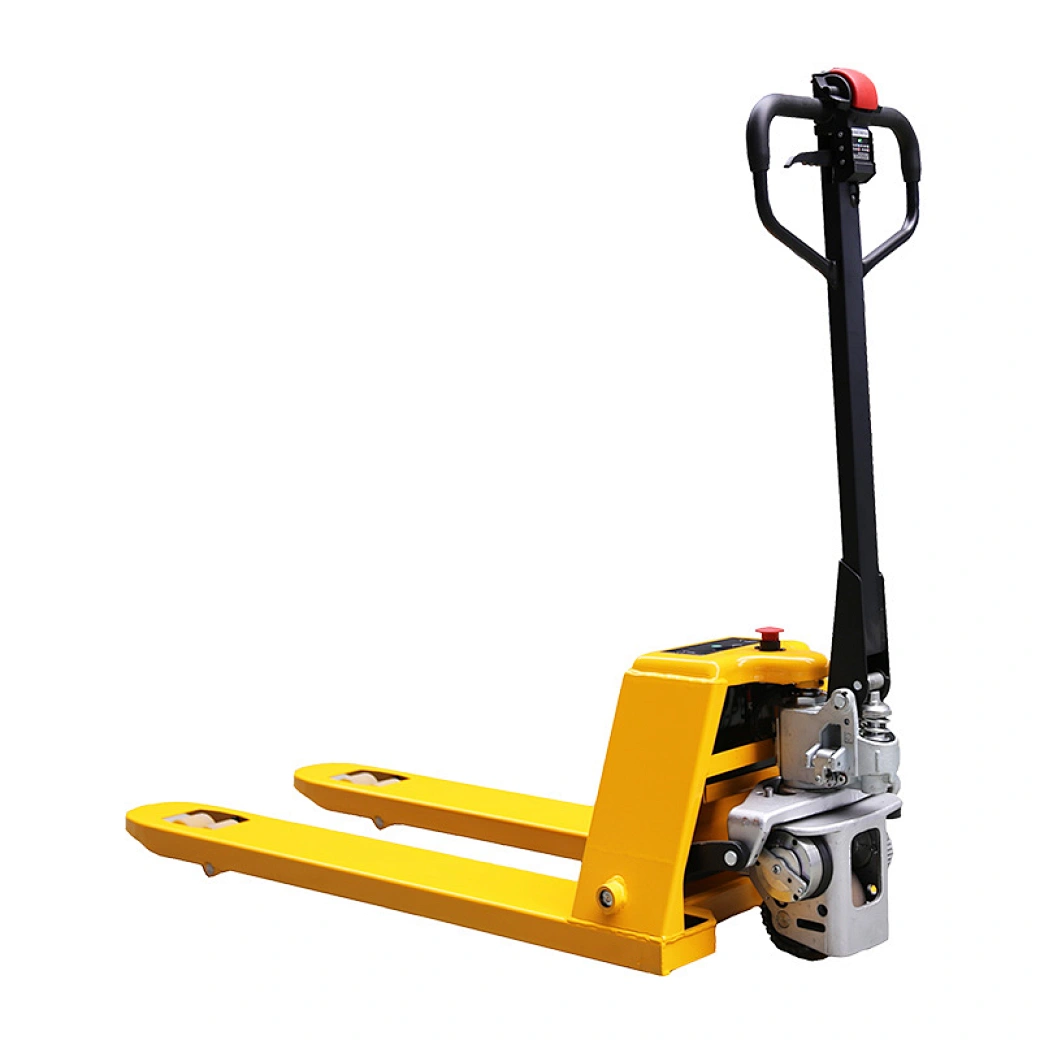

Name:ETH15MH Lithium electric pallet jack
Model:ETH15MH
Product Introduction:Integrated operation handle, easy to operate,The vehicle body is small, light weight, and can work easily in smaller warehouses or other holes;

Name:Lithium electric pallet jack

Features of Lithium electric pallet jack:

1. Integrated operation handle, easy to operate;

2. The  Lithium electric pallet jack body is small, light weight, and can work easily in smaller warehouses or other holes;

3. Lithium electric pallet jack is Equipped with efficient DC traction motor, the speed of operation can be controlled, and heavy goods can be easily handled;

4. The hydraulic system adopts the integral hydraulic pump station, which can easily lift the material by pressing the lift button on the control handle;

5. Lithium electric pallet jack is Equipped with lithium battery, higher environmental protection

Model number
Lithium electric pallet jack
ET15MH
Lithium electric pallet jack
ET15MH-P
Rated load kg 1500 1500
Load center distance mm 600 600
Vehicle type C Walking type
Maximum lifting height mm 200 200
The fork is wide outside mm 540/680 540/680
Minimum fork height mm 85 85
Width of single fork mm 163 163
Fork length mm 1150/1220 1150/1220
Minimum ground height mm 30 30
Full load maximum travel speed km/h 4 4
Maximum no-load speed km/h 4.5 4.5
Full load maximum gradient 2% 2%
Maximum no-load gradient 20% 20%
Minimum turning radius mm 1320/1390 1340/1410
Vehicle length mm 1540/1610 1546/1616
Vehicle width mm 540/680 540/680
vehicle height mm 1250 1250
Wheelbase mm 1170/1240 1202/1272
Lithium battery capacity AH/24V 20 20
Controller PG PG
Travel motor power w 750 750
Power of lifting motor w / 450
Self-weight kg 125 135
