Name:FD30RT4 & FD35RT4 4-Wheel Drive Rough Terrain Forklift
Model:FD30RT4 & FD35RT4
Product Introduction:SINOLIFT FD30RT4 & FD35RT4 rough-terrain forklifts are engineered to conquer challenging outdoor environments with robust 4WD capability, Tier 4 emission compliance, and enhanced operator comfort.

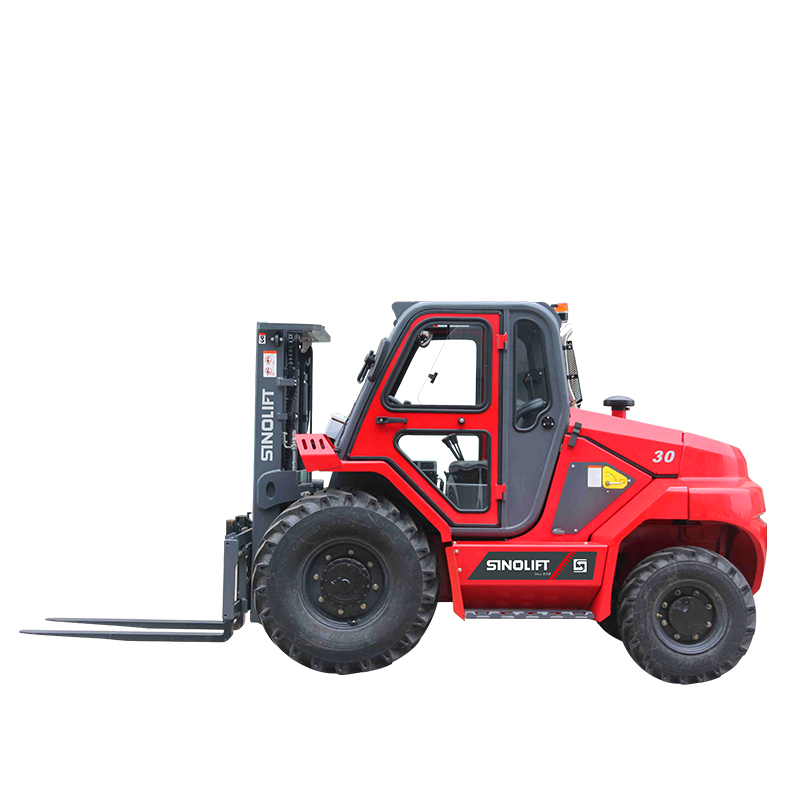

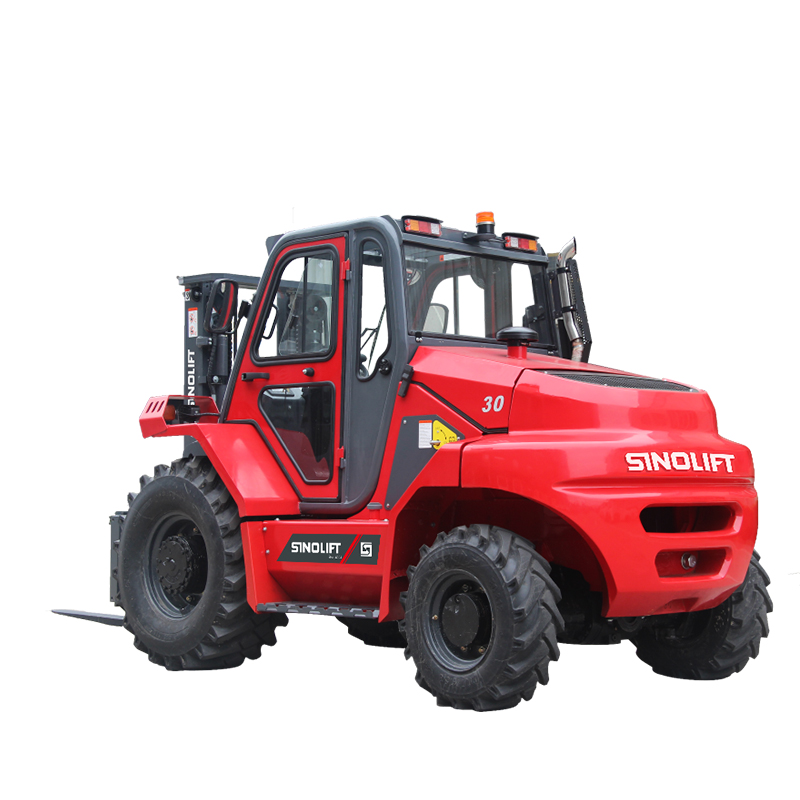

FD30RT4 & FD35RT4 4-Wheel Drive Rough Terrain Forklift

SINOLIFT FD30RT4 & FD35RT4 rough-terrain forklifts are engineered to conquer challenging outdoor environments with robust 4WD capability, Tier 4 emission compliance, and enhanced operator comfort. Ideal for construction, agriculture, and uneven terrains, they combine high ground clearance, adaptive drivetrains, and easy maintenance for reliable performance in extreme conditions.


Highlights of the FD30RT4 & FD35RT4 rough-terrain forklifts

Unmatched Off-Road Capability: Engineered with a true 4-wheel drive system, limited-slip differentials, and a high 350mm ground clearance to ensure powerful traction and stability on the most challenging and uneven surfaces, from muddy sites to rugged mountain terrain.

Powerful & Eco-Conscious Engine: Powered by a reliable, turbocharged Hatz diesel engine that meets stringent Tier 4 emission standards. This provides robust power for heavy loads while utilizing efficient fuel injection to minimize environmental impact.


Operator-Focused Comfort & Safety: The ergonomic cabin is designed for maximum productivity, featuring intuitive dash-mounted controls, ample legroom, and an adjustable seat. Safety is paramount, with standard features like daytime strobe lights and backup alarms.


Superior Visibility & Control: The wide-view mast offers a 10% broader field of vision compared to standard masts, significantly enhancing operational safety and efficiency by allowing perfect load and path visibility.

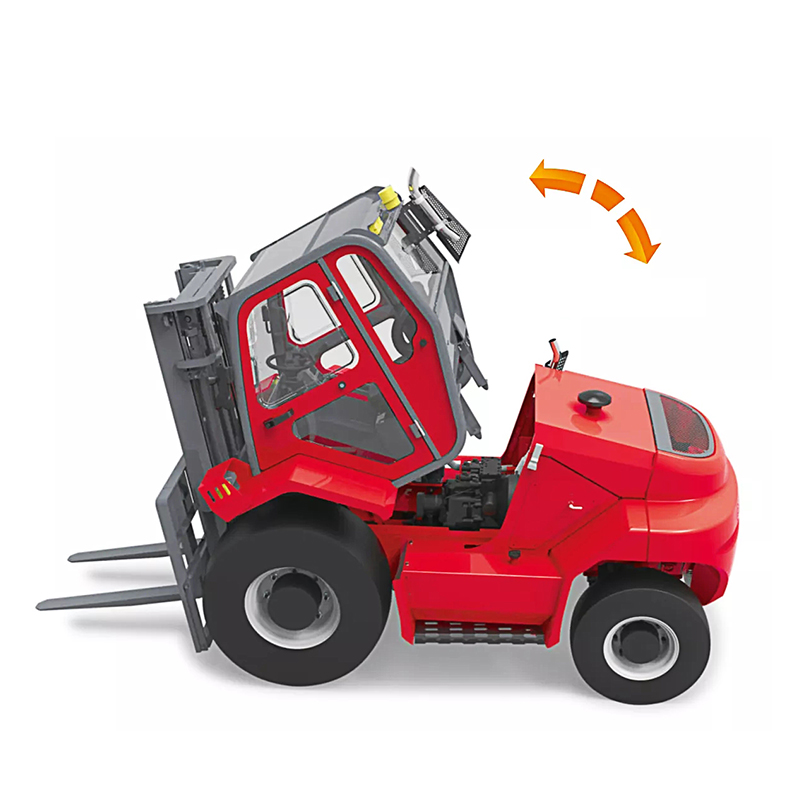

Durability with Easy Maintenance: Built with robust components and a high-strength overhead guard. Maintenance is simplified with an electronic tip-over cabin, providing easy, tool-free access to key components like the battery and air filter.


All-Weather Operational Readiness: Equipped with a high-position intake/exhaust system to prevent water and dust ingress and a full LED lighting package, ensuring reliable performance and visibility in all weather conditions.


Ideal Application Areas

These forklifts are the ideal solution for demanding outdoor and semi-prepared sites. They excel in sectors such as construction, agriculture, forestry, mining, and large-scale infrastructure projects, wherever reliable material handling on rough, unstable, or sloping ground is required.

Model FD30RT4 FD35RT4
Power Type Diesel Diesel
Rated Capacity kg/lbs 3000/6600 3500/7700
Load Centre mm/inch 600/23.6" 600/23.6"
Service Weight kg/lbs 5700/12540 5900/12980
Tyre Type (Front/Rear) Tubeless Tubeless
Wheel number X=Drive Wheel (Front/Rear) 2X/2X 2X/2X
Vacuum Tyre Front 405/70-20-14PR 405/70-20-14PR
Rear 10.0/75-15.3-12PR 10.0/75-15.3-12PR
Tread Front W1 mm/inch 1410/55.5" 1410/55.5"
Rear W2 mm/inch 1484/58.4" 1484/58.4"
Wheel Base L4 mm/inch 1990/78.3" 1990/78.3"
Fork Size L×W×T L1 mm/inch 1220*125*45/48"*5"*2" 1220*125*45/48"*5"*2"
Mast Tilt Angle F/R (α/β) Deg 10°/12° 10°/12°
Lift Height H mm/inch 3000/11.8" 3000/11.8"
Mast Lowered Height H1 mm/inch 2230/88" 2260/89"
Free Lift Height H5 mm/inch 125/4.9" 90/3.5"
Mast Extended Height H2 mm/inch 4245/167" 4245/167"
Length to Face of Fork (without Fork) L mm/inch 3252/128" 3252/128"
Overall Width W mm/inch 1835/72" 1835/72"
Overhead Guard Height H3 mm/inch 2250/88.6" 2250/88.6"
Front Overhang L2 mm/inch 700/27.5" 705/27.7"
Rear Overhang L3 mm/inch 607/23.9" 607/23.9"
Turning Radius(outside) r mm/inch 4380/172.4" 4380/172.4"
Ground Clearance (Bottom of chassis) H4 mm/inch 135/5.3" 135/5.3"
Min. Insecting Aisle Ra mm/inch 3040 3040
Min. Right Angle Stacking Aisle Width RASA mm/inch 6350 6350
Speed Travel (Unloaded/Loaded) km/h 24/25 24/25
Lifting (Unloaded/Loaded) mm/s 480/500 480/500
Lowing (Unloaded/Loaded) mm/s 380/400 380/400
Max. Gradeability % 30 30
Service Brake Wet Multi-Disc Wet Multi-Disc
Packing Brake Caliper Type Caliper Type
Differential F/R Slip Limited F/R Slip Limited
Engine Code HC1 HC1
Engine Model Type HATZ 4H50TIC XinChai 4D32G31-051
Rated  output Kw/r.p.m 54.9/2500 36.8/2500
Rated Torque Nm/r.p.m 24/1600-1900 186/1600-1800
No. of Cylinder 4 4
Bore x Stroke mm 84 x88 98 x105
Displacement cc 1.952 3.167
Emission Standard EU IIB/EPA Tier4 III
Fuel Tank Capacity L 80 60
Battery (Voltage/Capacity) V/Ah 12/120 12/80
Transmission Type Hydraulic Hydraulic
Shift Stage FWD/RVS 3/2 3/2
Operating  Pressure of Attachment Mpa 18 18
