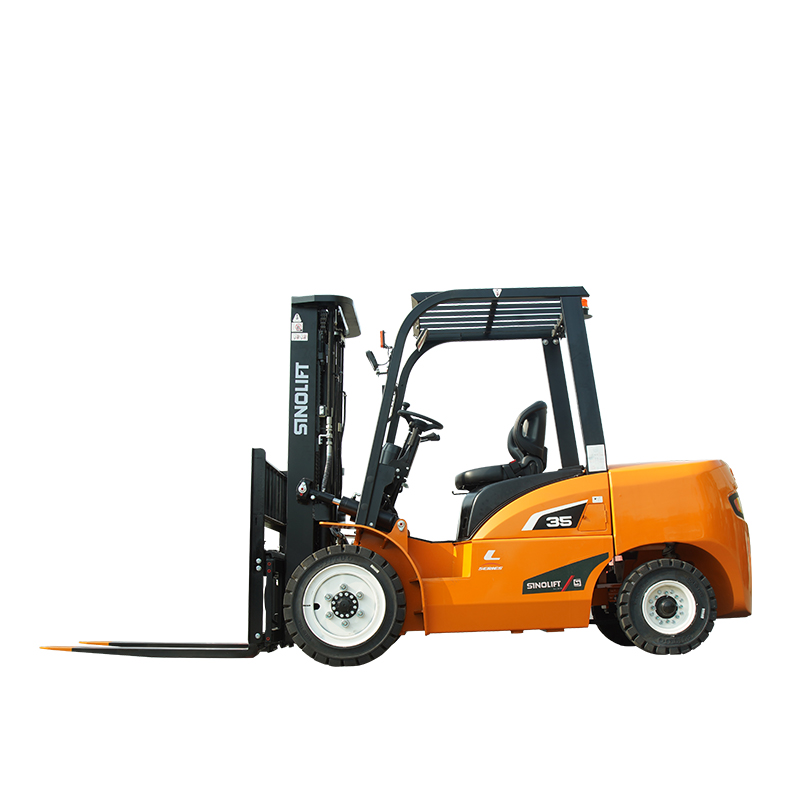

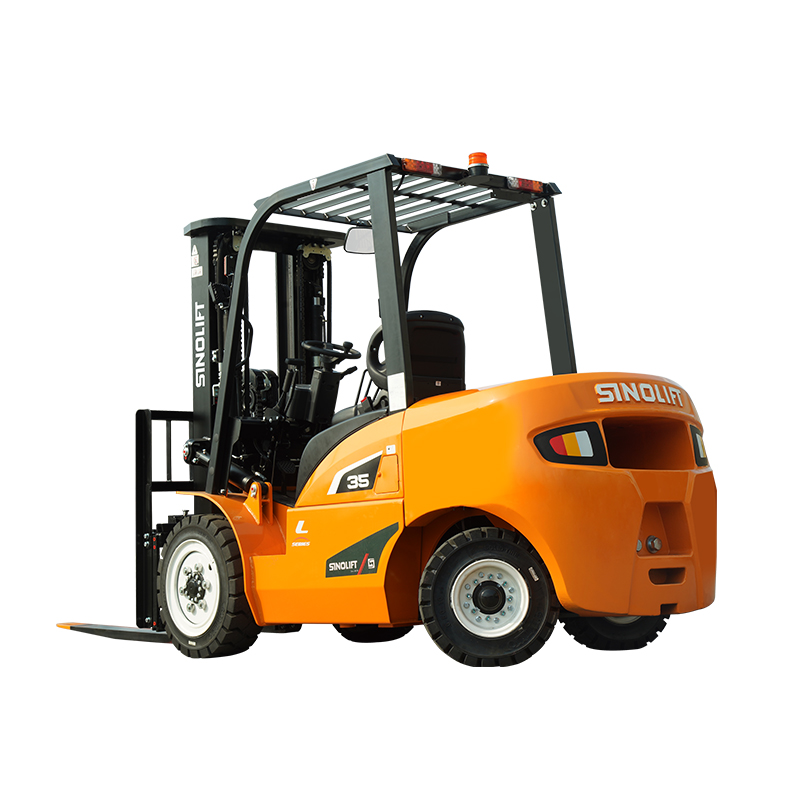

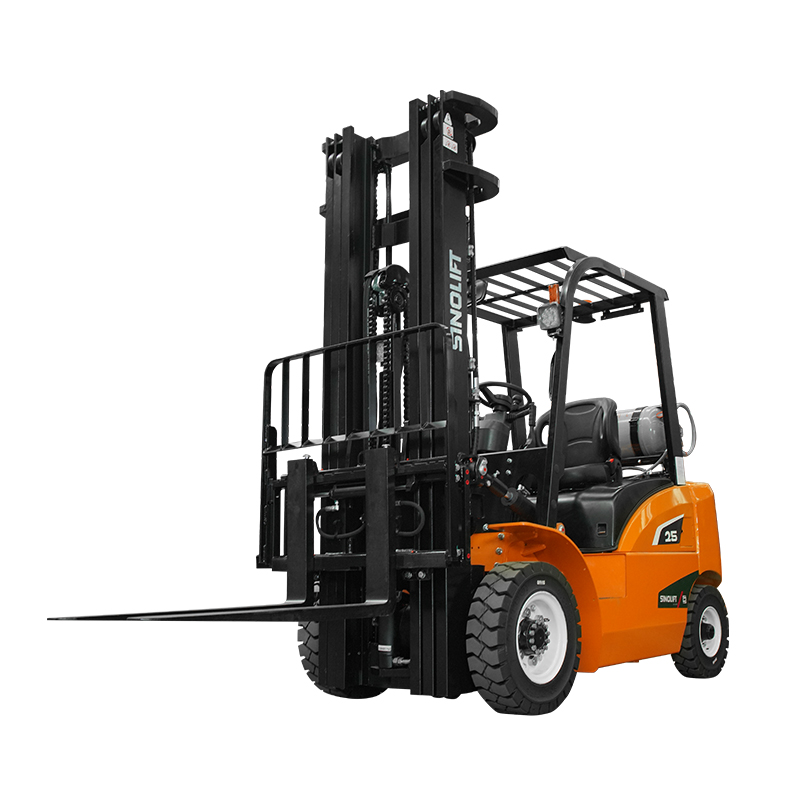

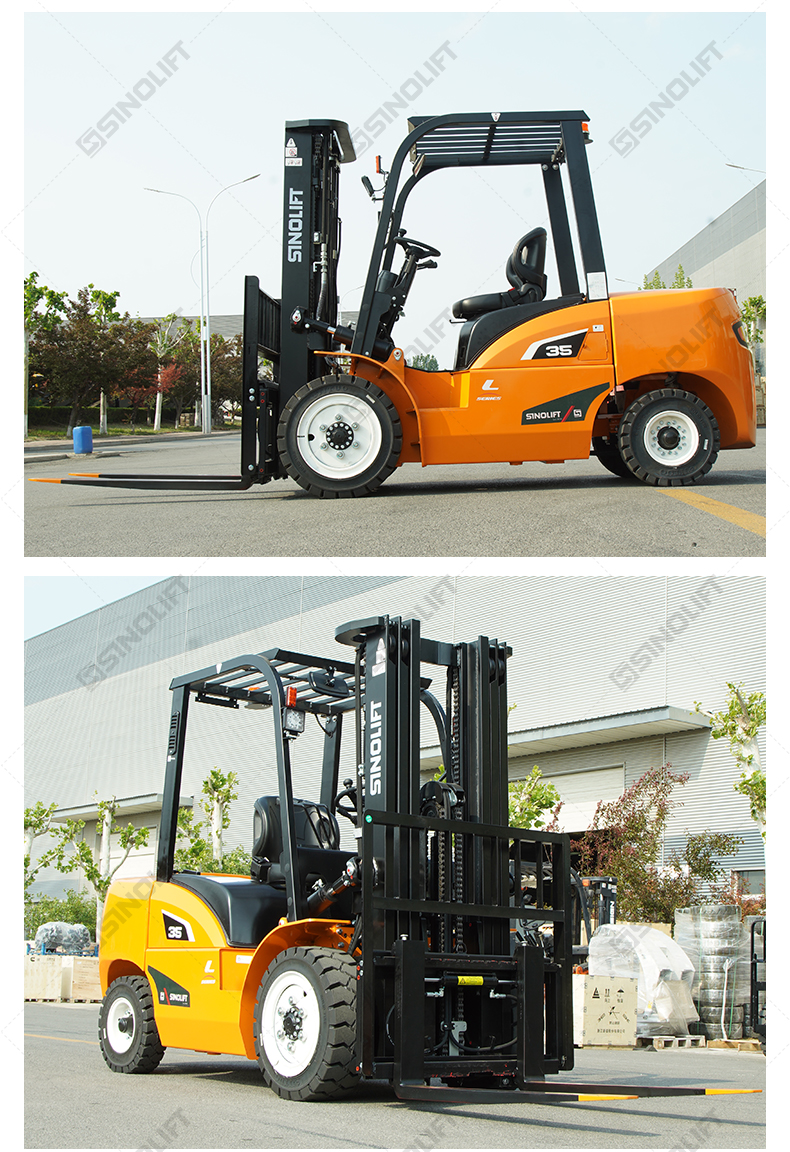

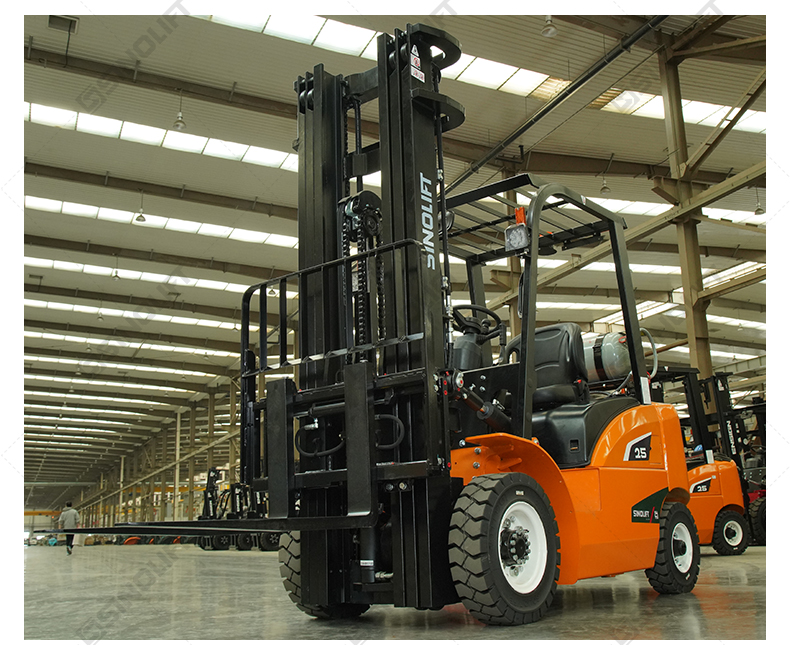

Name:L SERIES PRO 2.0-3.8T Internal-Combustion Counter Balanced Forklift
Model:L SERIES PRO 2.0-3.8T
Product Introduction:The SINOLIFT L-Series PRO 2.0-3.8T internal-combustion forklift delivers robust performance for intensive material handling in warehouses, ports, and industrial plants. Building on the acclaimed performance of its predecessor, this series incorporates not only eco-friendly design but also human-centric operational flexibility—features highly praised in the forklift market.

L SERIES PRO 2.0-3.8T Internal-Combustion Counter Balanced Forklift


The SINOLIFT L-Series PRO 2.0-3.8T internal-combustion forklift delivers robust performance for intensive material handling in warehouses, ports, and industrial plants. Building on the acclaimed performance of its predecessor, this series incorporates not only eco-friendly design but also human-centric operational flexibility—features highly praised in the forklift market. Designed for operational excellence, it combines advanced stability systems, EU Stage V certified engines, and ergonomic controls to ensure productivity and operator comfort in demanding environments.


Key Features of the SINOLIFT L-Series PRO

Advanced Power Options: Equipped with EU Stage V certified engines including Kubota V2403 diesel and WG2503 dual-fuel systems, featuring electronic high-pressure common rail technology for optimal fuel efficiency and reduced emissions.

Enhanced Stability Control: Incorporates an active stability system combined with low center of gravity design and side roller positioning to minimize load sway and ensure superior handling during high-level operations.

Operator-Focused Ergonomics: Features a scientifically designed cabin with φ300 tilt-adjustable steering wheel, reduced vibration transmission, multifunctional LCD display, and enlarged legroom for extended comfort.

Intelligent Safety Systems: Integrated safety package includes advanced braking, comprehensive monitoring systems, and DOC+DPF aftertreatment technology for environmentally compliant operation.

Superior Serviceability: Engineered with quick-access maintenance points, modular components, and simplified service procedures to minimize downtime and reduce lifecycle costs.

Precision Performance: Delivers faster lifting speeds, smoother acceleration, and precise steering response through optimized hydraulic systems and advanced control technologies.

Application Versatility
The L-Series PRO demonstrates exceptional adaptability across multiple demanding environments. Its robust construction and advanced features make it ideal for intensive warehouse operations, manufacturing facilities, logistics centers, and port terminal applications. The forklift maintains reliable performance in both indoor and outdoor settings, handling everything from pallet stacking to container loading with equal efficiency.


Manufacture SINOLIFT
Model CPCD20L+ CP(C)D25L+ CP(C)D30L+ CP(C)D35L+ CP(C)D38L+
Power type Diesel
Rated capacity kg 2000 2500 3000 3500 3800
Load center mm 500
Lift height                                                                        mm 3000
Free lift height                                                                  mm 130
Fork size                                                                           mm 1070x120x40 1070x120x40 1070x122x45 1070x122x50
Fork spread outside Min./Max. mm 240/1024 240/1024 244/1060 244/1060 244/1060
Mast tilt angle                                                                   deg 6°/12°
Front overhang mm 462 462 475 480 490
Rear overhang mm 408 408 600 600 600
Overall dimensions Length to face of fork                               mm 2520 2520 2825 2880 2990
Overall width                                           mm 1170 1170 1230 1230 1230
Height of load backrest mm 965 965 1225 1225 1225
Mast lowered height                               mm 2000 2000 2130 2130 2130
Mast extended height                              mm 4035 4035 4230 4230 4230
Overhead guard height                             mm 2110 2110 2145 2145 2145
Turning radius                                                                 mm 2290 2290 2560 2620 2720
No load/full load Travel speed km/h 17/19 17/19 18.5/19 18.5/19 18.5/19
Lift speed  mm/sec 540/450 540/450 450/410 450/410 330/310
Lowering speed  mm/sec 560/600 560/600 455/480 455/480 370/400
Max. gradeability (full load /no load) % 15/20 15/20 15/20 15/20 15/20
 Max. drawbar pull KN 16 16.5 20 20 20
Self weight kg 3400 3700 4300 4600 4800
Tires Front                                       7.00-12-12PR 7.00-12-12PR 28x9-15-14PR 28x9-15-14PR 28x9-15-14PR
Rear                                        6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
Tread Front                                      mm 970 970 1000 1000 1000
Rear                                       mm 980 980 970 970 970
Wheelbase                                                                    mm 1650 1650 1750 1800 1900
Min.ground clearance mm 110 110 130 130 130
Operating pressure Mpa 17.5 17.5 17.5 17.5 17.5
Battery V/Ah 12/80
Engine Model Xinchai
C490BPG
Quanchai
V29-50C43
Isuzu
C240PKJ-30
Xinchai
A495BPG
Isuzu
4JG2PE-01
Rated output kw/rpm 36.8/2650 36.8/2500 34.6/2500 42/2500 46/2450
Rated torque N.m/rpm 156/1700-1900 190/1500-1850 139.2/1800 174/1800-2000 186/1700-1800
No.of cylinder 4 4 4 4 4
Bore×stroke mm 90x105 93x105 86x102 95x105 95.4x107
Displacement cc 2670 2850 2369 2977 3059
Emission Standard Stage II
/EUR III
Stage IV  Stage II
/ EURO IIIA
Stage II Stage II
/ EURO IIIA
Transmissions Type Mechanical
/Hydraulic
Mechanical
/Hydraulic
Mechanical
/Hydraulic
Mechanical
/Hydraulic
Mechanical
/Hydraulic
Hydraulic System Working Pressure MpA 17.5 17.5 17.5 17.5 17.5
