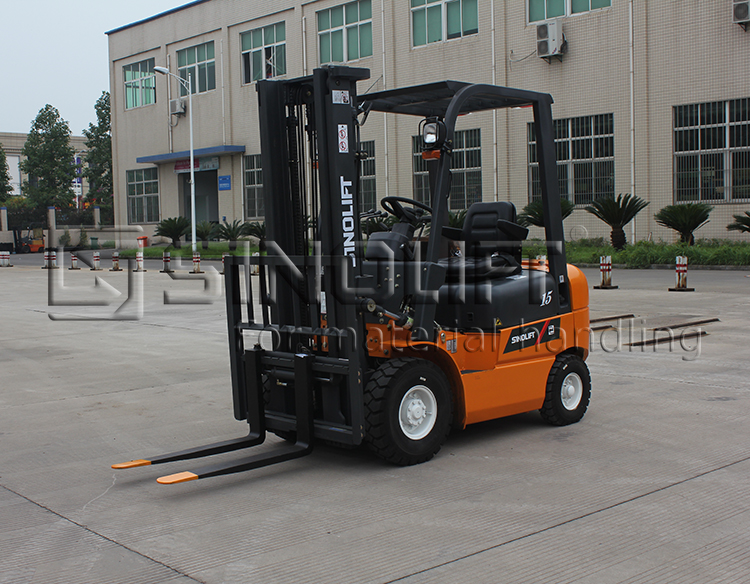

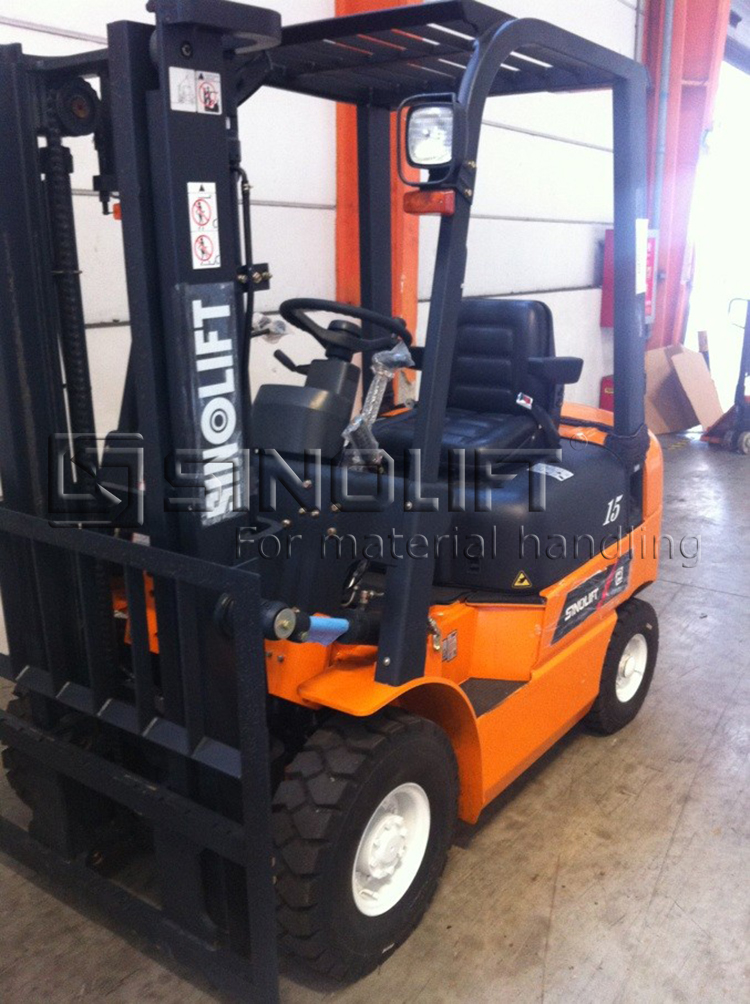

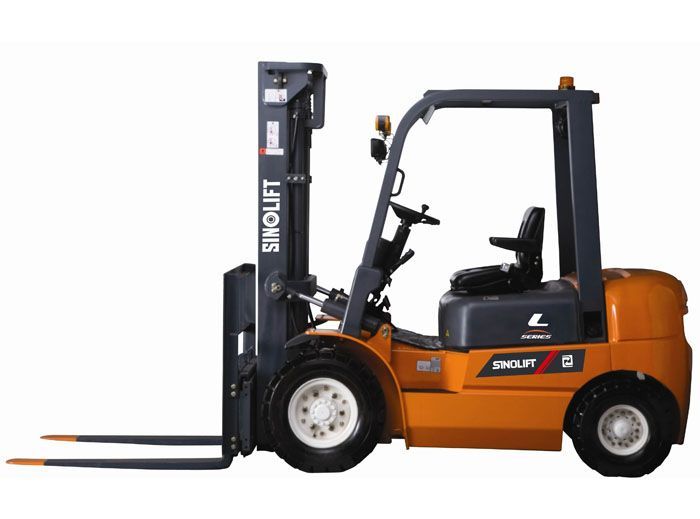

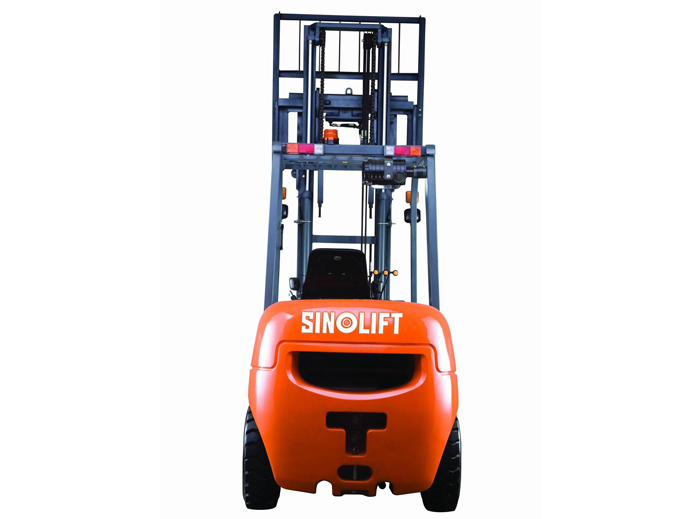

Name:L Series 1-1.8Ton Diesel Forklift (CPCD10-18)
Model:CPCD10-18
Product Introduction:The machine body is designed with big arc streamline and fitted with open anti-slippage pedal.high position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life.

Appearance

The latest appearance design method was used to create the L series fluent and aesthetic outline, which matches the latest appearance trend.

Efficiency
Thanks to the long wheelbase design, the longitudinal stability of whole truck is much better, the hoisting capacity at same lift height are enhanced by an average of 100KG compared with former truck. At the same time, it prolongs work time of rear wheel as the reduced rear axle’s load.

Increasing the hard proportion of hydraulic pipe, adopting right angle connector or straight through connector, that reduce the pressure loss of pipeline, and raise the lifting speed of mast, the speed is increased by an average of 10% compared with former truck.

Service
Dual air spring supporting hood and one-touch removal of the floorboard get you right to service operations, and reduces down-time.

The reasonable arrangement of fuse and installation of instrument, enable the replacing for fuse and maintenance for instrument easier.

Safe
A throttling device is set in pipe system,the mast won’t result in failing control of mast even some pipes broke.
By using a built-in hood lock device, the safe level of the truck has been raised.

Generals

Manufacture

SINOLIFT L Series 1.0T-1.8T Diesel Forklift

Model

CPC(D)10-X1

CPC(D)15-X1

CPC(D)18-X1

CPC(D)10-W1

CPC(D)15-W1

CPC(D)18-W1

CPC(D)10-C1

CPC(D)15-C1

CPC(D)18-C1

Power type

Diesel

Diesel

Diesel

Rated capacity

kg

1000

1500

1750

Load center

mm

500

500

500

Dimensions

Lift height

mm

3000

3000

3000

Free lift height                                                            E

mm

164

164

164

Fork size                                                            N×U×L

mm

920×100×40

920×100×40

1070×120×40

Front overhang                                                       A2

mm

436

436

436

Overall dimensions

Length to face of fork           A1

mm

2180

2235

2270

Overall width                         B1

mm

1095

1095

1095

Mast lowered height              H1

mm

1995

1995

1995

Mast extended height            H3

mm

4030

4030

4030

Overhead guard height         H2

mm

2075

2075

2075

Turning radius                                                          R

mm

1890

1960

2000

Min. right angle aisle width                                       X

mm

1720

1780

1820

Performance

Travel speed (no load / full load)

Hydraulic

km/h

14.5/13.5

14.5/13.5

14.5/13.5

Mechanical

Shift    I

6/5.5

6/5.5

6/5.5

Shift    II

14/13.5

14/13.5

14/13.5

Lift speed (full load)

mm/sec

450

450

450

Max. gradeability

%

20

20

20

Self-weight

kg

2340

2740

2943

Wheel & Tires

Tires

Front

6.50-10-10PR

6.50-10-10PR

6.50-10-10PR

Rear

5.00-8-8PR

5.00-8-10PR

5.00-8-10PR

Tread

Front                                   B2

mm

890

890

890

Rear                                    B3

mm

920

920

920

Wheelbase                                                            A3

MM

1400

1400

1400

Ground clearance (full load / no load)

Mast          M

mm

95/105

95/105

85/105

Frame        F

105/115

105/115

105/115

Drive units

Engine

Engine Code Name

X1

W1

C1

Model

XINCHAI NB485BPG

ISUZU C240PKJ

CUMMINS A2300

Rated output

kw/rpm

30/2600

34.5/2500

35/2600

Rated torque

N.m/rpm

131/1800

139/1800

150/1600

No.of cylinder

4

4

4

Bore × stroke

mm

85*100

86*102

Displacement

cc

2270

2369

2300
