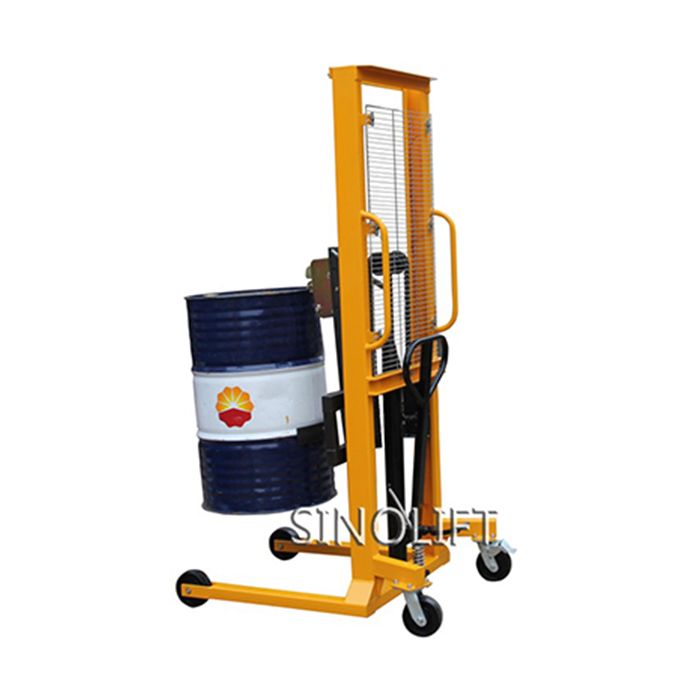

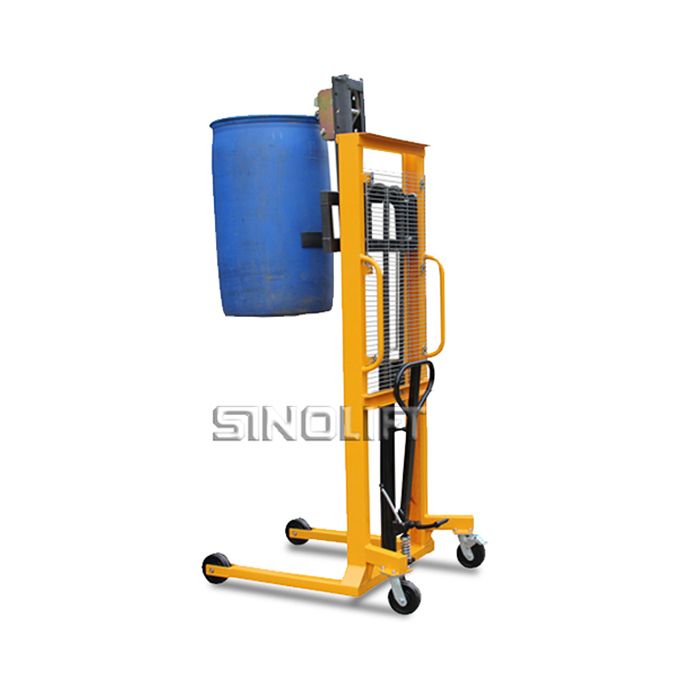

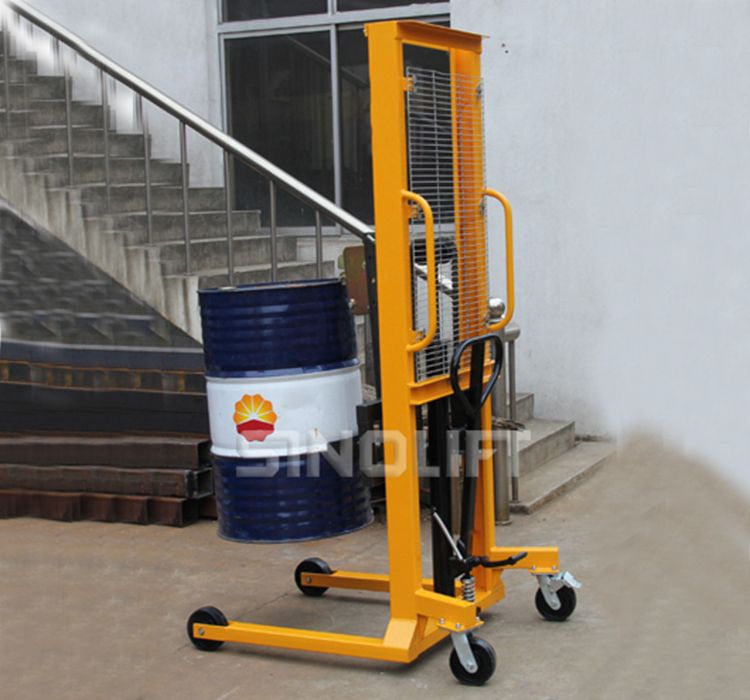

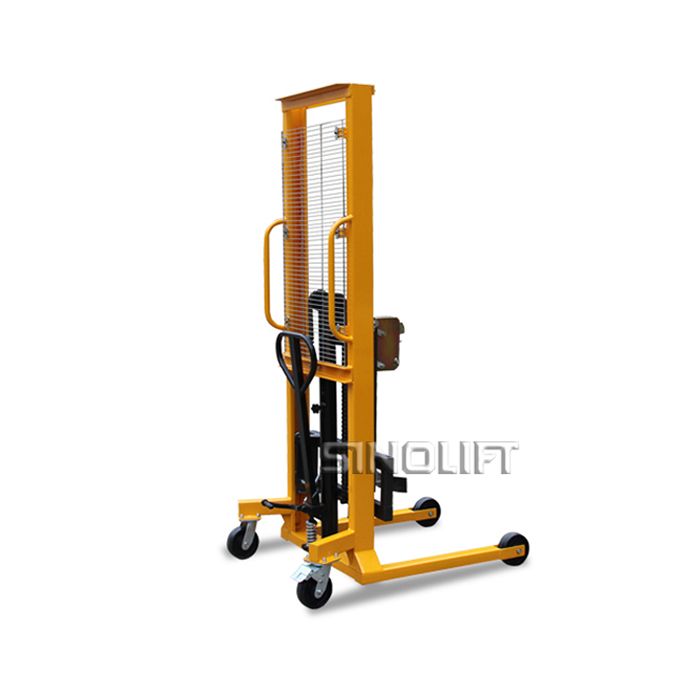

Name:Hydraulic Drum Stacker
Model:DT400A
Product Introduction:Ergonomic lifts, transport, and places poly, steel, or fiber drums on or off pallets. A spring-load clamp securely holds any rimmed drum. It have swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability. Legs adjust for different pallet, Handles 55-, 85-gallon drums.

  The DT series Drum Handler features:

*       Ergonomic lifts, transport, and places poly, steel, or fiber drums on or off pallets.

*       A spring-load clamp securely holds any rimmed drum.

*       It have swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.

*       Legs adjust for different pallet, Handles 55-, 85-gallon drums.

*

*       Note: Specification and materials are subject to change without notice.

Model   DT400A
Capacity Kg 400
Drum size   55gallon(Ф572×900)or 80gallon(Ф800×900) 210L Plastic
plastic or steel drum
Lifting height mm 1500
Straddle leg width  mm 630 (810)
Straddle leg lenth mm 770
Turning Radius mm 1400
Outline dimension mm 1110x900x2100
Front wheel size(PU) mm Ф150×50
Rear wheel size(PU) mm Ф150×50
N.W Kg 136
