DY350C Hydraulic Drum Truck

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

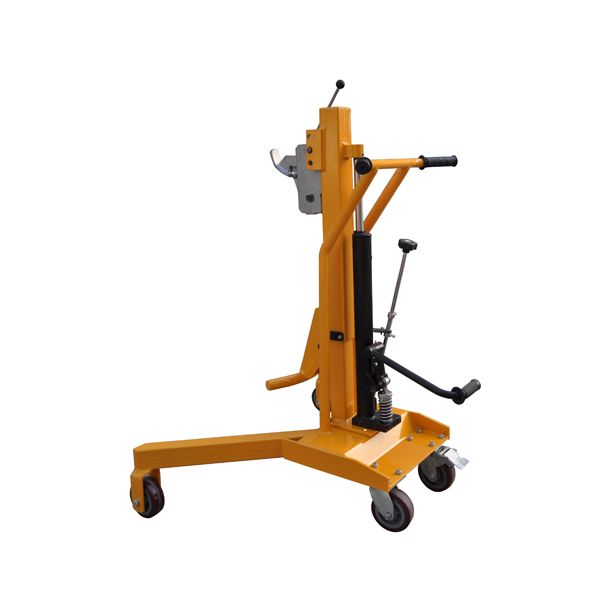

Name：DY350C Hydraulic Drum Truck
Model：DY350C
Product Introduction：Design of right-angular leg can be suitable to handle the drums angular on the pallet. High lift, heavy-duty, durable, multifunctional. Suitable for 30~55 gallon steel or 210L plastic drums.

Design of right-angular leg can be suitable to handle the drums angular on the pallet.

High lift, heavy-duty, durable, multifunctional.

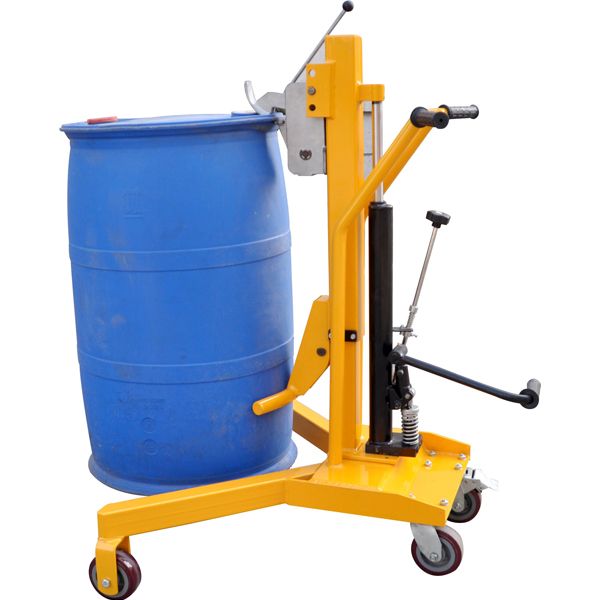

Suitable for 30~55 gallon steel or 210L plastic drums.

Model		DY350C	DY350C-1
Capacity	kg	350	350
Drum Size	mm	30~55gallon (Ø450x700mm~Ø572x900mm) steel, 210L plastic
Lifting Height	mm	450	450
Leg Width	mm	920	920
Dia. of Front Wheel x Qty'	mm	Φ180×2	Φ180×2
Dia. of Rear Wheel x Qty'	mm	Φ150×2	Φ150×2
Overall size	mm	850×1100×1100	850×1100×1100
Net Weight	kg	81	78
