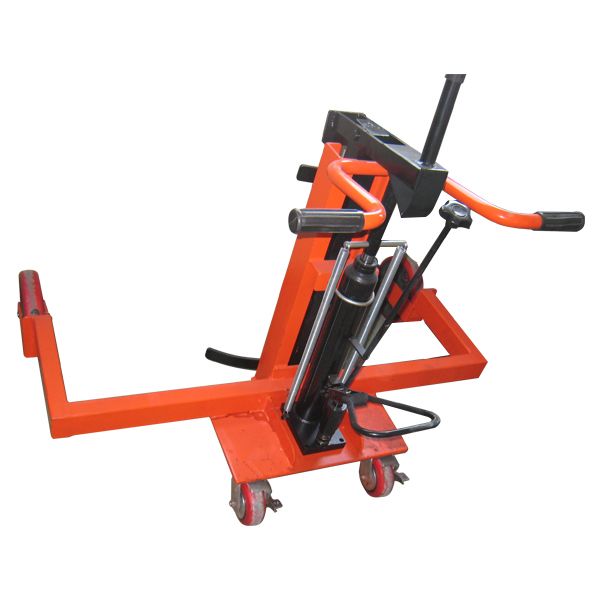

Name:DTW400A Hydraulic Drum Truck
Model:DTW400A
Product Introduction:1.Wide leg and heavy duty design, can be used for handling heavy drums and long span life. 2. Less lifting force by a reliable hydraulic pump. 3. Dead weight grip design for easy and reliable operation. 4. Easier moving with two big size rollers and two caster wheels.

1.Wide leg and heavy duty design, can be used for handling heavy drums and long span life.

2. Less lifting force by a reliable hydraulic pump.

3. Dead weight grip design for easy and reliable operation.

4. Easier moving with two big size rollers and two caster wheels.

Model



DTW400

DTW400A

Lifting Capacity

kg

400

400

Drum Size



Ø572x900mm (55gallon) steel, 210L Plastic

Lifting Height

mm

350(500)

350(500)

Lifting Per Stroke

mm

22

22

Straddle leg inner width

mm

650

850

Wheel size (Front Wheel)

mm

Ø250x55

Ø250x55

Wheel size (Rear Wheel)

mm

Ø150x50/Ø125x50

Ø150x50/Ø125x50

Outline Dimensions

mm

790x810x1260

790x1010x1260

Net Weight

(kg/lbs)

75

80
