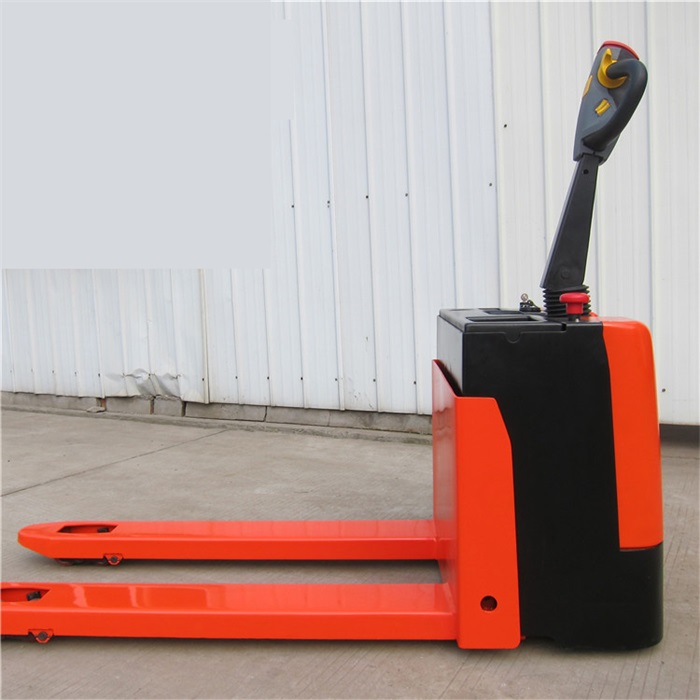

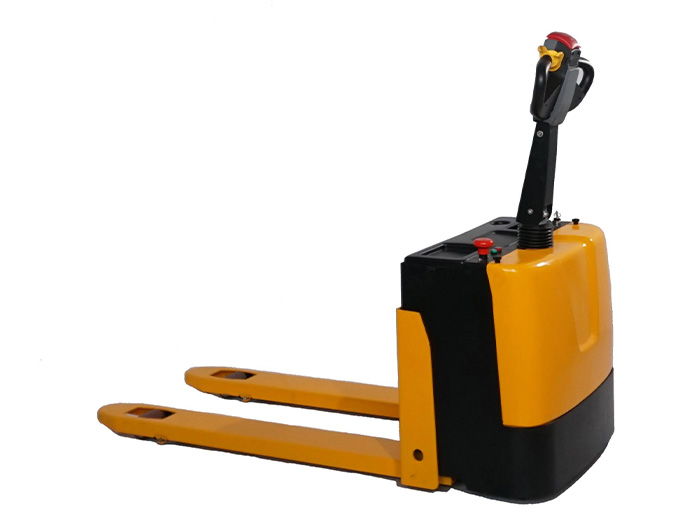

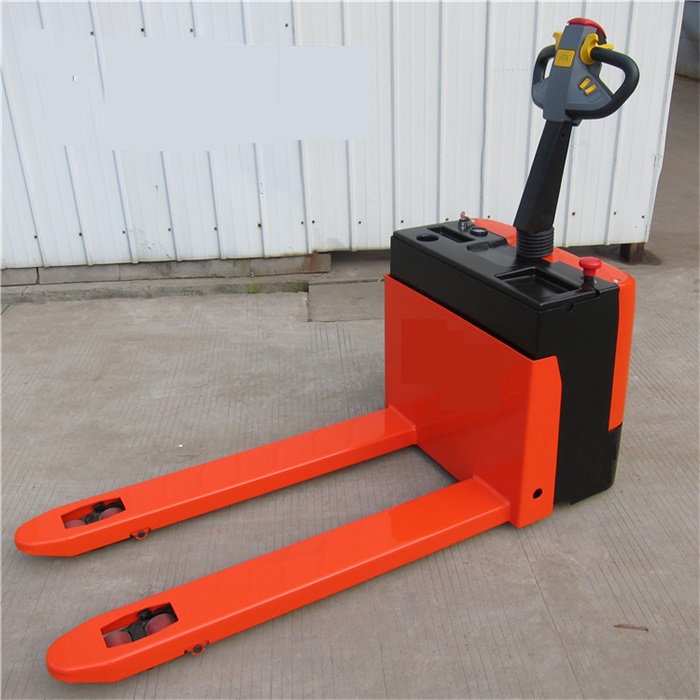

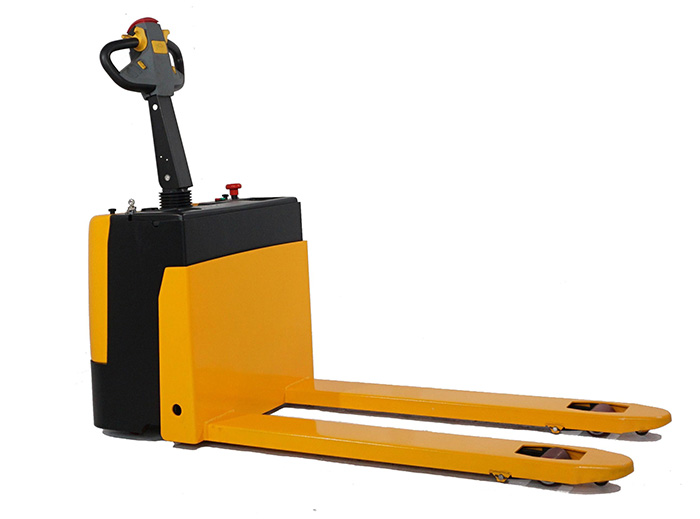

CBE1.5D Full Electric Pallet Truck

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

Name：CBE1.5D Full Electric Pallet Truck
Model：CBE1.5D
Product Introduction：1.A fully powered pallet truck which can lift and transfer pallets quickly and easily. 2. Convenient fingertip raise and lower buttons. 3. CURTIS controller offers infinite forward and reverse speeds.CURTIS battery indicator. 4. Safety features include a horn,an electromagnetic brake and belly reverse button. 5. 24V traction batteries.Built-in charger battery. 6. Excellent stability and reliability.

Features:

1.A fully powered pallet truck which can lift and transfer pallets quickly and easily.

2. Convenient fingertip raise and lower buttons.

3. CURTIS controller offers infinite forward and reverse speeds.CURTIS battery indicator.

4. Safety features include a horn,an electromagnetic brake and belly reverse button.

5. 24V traction batteries.Built-in charger battery.

6. Excellent stability and reliability.

Main Parameters
power type		battery	overall width B	mm	720
operation type		pedestrian	fork dimention (s/e/l)	mm	50/160/1200
load capacity Q	kg	1500	outside width of forks b1	mm	540/630
load center C	mm	600	ground clearance m	mm	30
front overhang distance X	mm	205	min. width of aisle	mm	1865
wheelbase Y	mm	1280	steering radius Wa	mm	1465
wheel material		Polyurethane	travel speed,loaded /unloaded	km/h	3.5/4.0
driving wheel size	mm	Φ250×80	gradeability,loaded	%	5
balance wheel size	mm	Φ75×35	brake type		electromagnetic
front wheel size,tandem	mm	Φ70×70	driving motor	kw	0.7
front wheel size,single	mm	Φ74×95	lift motor	kw	0.8
balance wheel distance b3	mm	485	battery voltage/capacity	V/Ah	24/70,24/95
cylinder stroke h3	mm	120	battery weight	kg	35/51
max. height of forks h2	mm	195/205	net weight	kg	270/285
min. height of forks h1	mm	85	electric control		curtis 1212
overall length L	mm	1665
