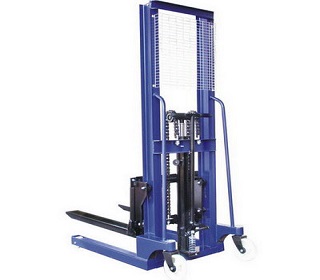

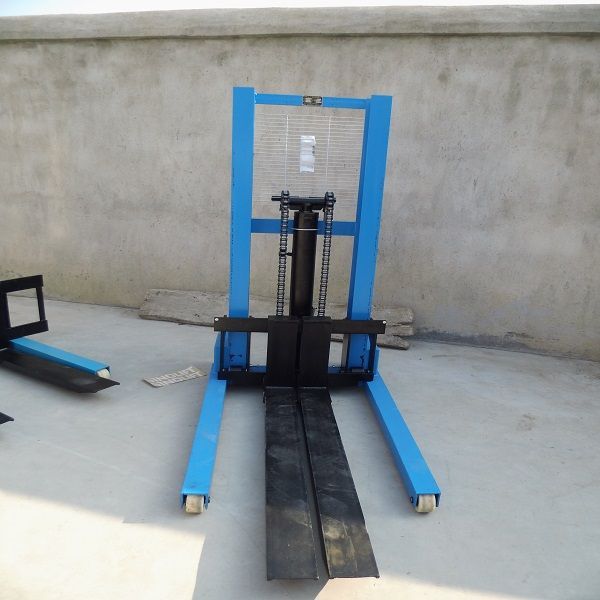

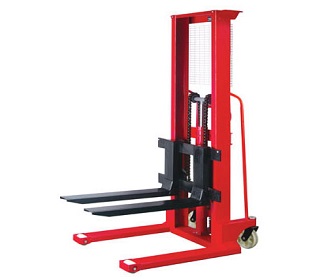

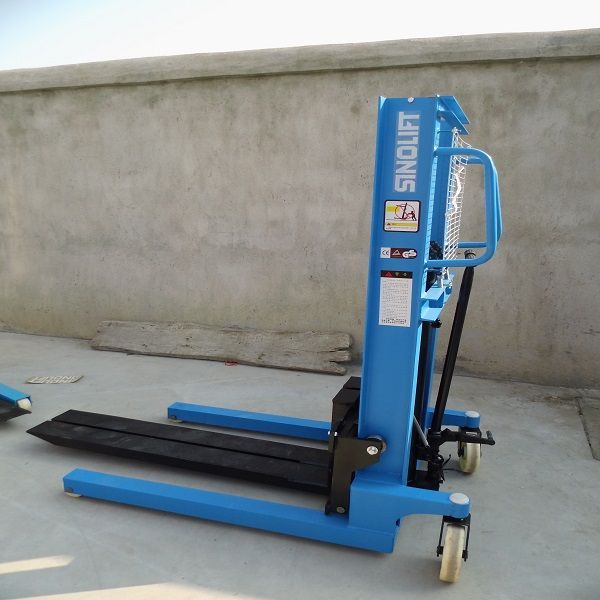

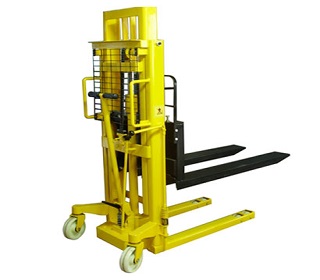

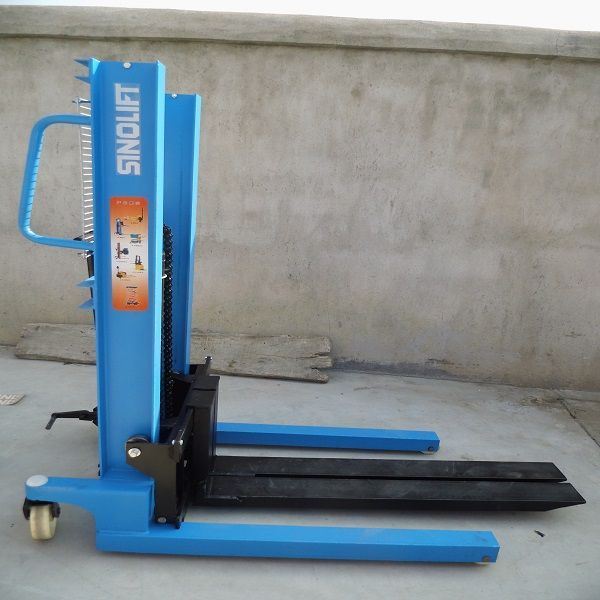

Name:SFH Heavy Duty Manual Hydraulic Stacker
Model:SFH
Product Introduction:A kind of manual hydraulic stacker without power and pollution,has the features of balanced lifting, compact structure, flexible transportation, simple operation and small rotating radius.

Features:

1. A kind of manual hydraulic stacker without power and pollution

2. Has the features of balanced lifting, compact structure, flexible transportation, simple operation and small rotating radius.
3. Widely used for cargo handling and stacking in factories, workshops, warehouses, stations, wharves, etc.
4. More suitable for places with fire and riot requirements (such as printing shop, oil depot, dock, warehouse, etc.)

SFH2016 SFH2019 SFH3015
Capacity kg 2000 2000 3000
Lifting height mm 1600 1900 1500
Loadc enter distance mm 600 600 600
Fork length mm 900 900 900
Fork adjustable width mm 200-830 200-830 350-850
Fork Min. height mm 85 90 105
Min. turning radius mm 1326 1350 1450
Dimensions Length mm 1385 1640 1500
Width mm 780 730 900
Height mm 1980 1666 1980
Wheel(Nylon) Front wheel diameter mm 76 80 82
Rear wheel diameter mm 150 180 180
N.W kg 228 360 365
