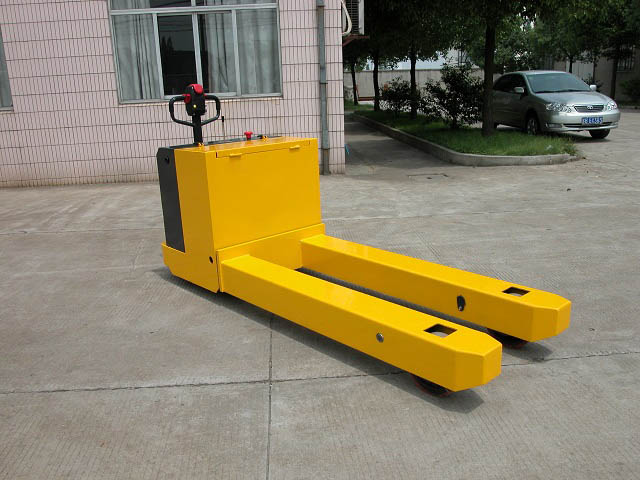

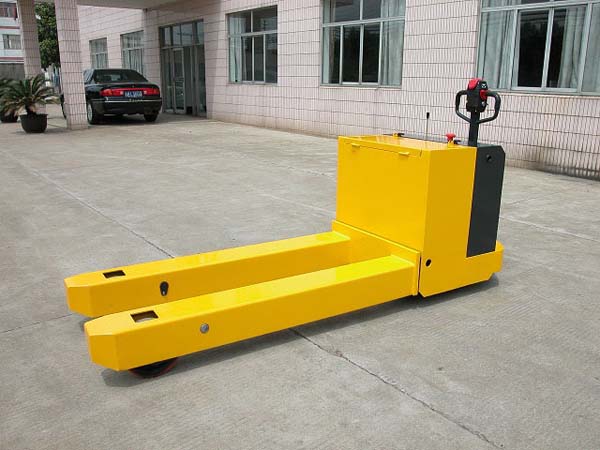

Name：CBE5.0Z Full Electric Pallet Trck
Model：CBE5.0Z
Product Introduction：1.Hydraulic pump station makes the lifting of goods steady and powerful 2.Drive wheel installed with reliable dish style braking has strong power and steady capability 3.Electric control system reacts quickly and operates easily 4.It has flexible linear heavy-duty design and tight structure, and it is suitable for narrow access and is flexible operated 5.It is accorded to European standard of EN1757-1: 2001

● The padded armrest supports the operator’s upper arm and shoulder, reducing operator fatigue

● Built-in pressure relief valve protects the trucks from overloads.

● Emergency power disconnect.

● Stepless speed control.

● Big battery capacity 320Ah, drive motor 2.2KW. The work efficiency and reliability are much improved.

● The deadman brake device in the compartment makes operation safer.

● Built-in hood lock device and safety lock device increase the safety level of the trucks.

Model		CBE-5.0Z
Rated Capacity	kg	5000
Load Center	mm	600
Lifting Height (Min. ~Max.)	mm	150-250
Single Fork Width	mm	230
Fork length * Length	mm	1200*685
Drive Speed (unladen/Laden）	km/h	3.5/2.0
Lifitng Speed (unladen/laden）	mm/s	15/30
Lowering Speed (unladen/laden）	mm/s	20/18
Dirve Wheel Size (PU)	mm	Φ260*150
Load Wheel (PU)	mm	Φ100*100
Balance Wheel (PU)	mm	Φ100*45
Dirve Motor	w	1800
Steering Motor	W	1500
Lifting Motor	w	3000
Battery	Ah	24V/D-420
Operation Type		Tiller
Controller		Curtis Stepless
Min. Turning Radius	mm	1400
Service Weight	kg	1360
