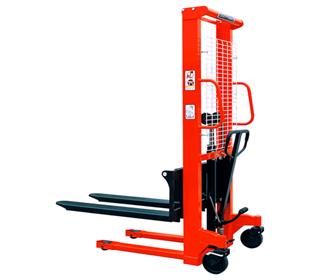

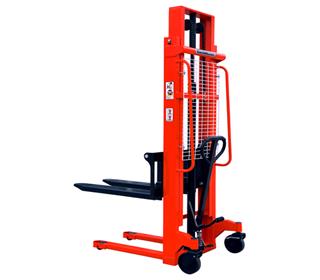

Name:CTY Movable forks Manual Hydraulic Stacker
Model:CTY
Product Introduction:Its design and small turning radius makes it easier to make sharp turns.

Features:

1.  Robust Steel profile construction.

2.  An economical lift to handle tasks from transporting dies and moulds skids and pallets.

3.  Sturdy and compact enough to fit through standard doors and to operate in congested areas.

4.  Precision engineered for smooth performance and exceptional durability.

5.  Lifting function operated by foot and hand controls.

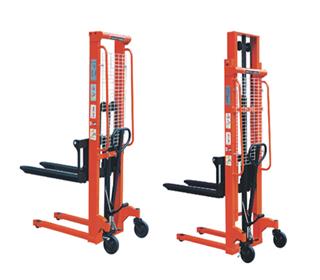

Specifications of CTY Manual Hydraulic Stacker (single mast)

Model CTY500-16 CTY1000-16 CTY1500-16 CTY2000-16 CTY1000-25 CTY1000-30
Rated Capacity kg 500 1000 1500 2000 1000 1000
Load Center mm 400 400 400 400 400 400
Lifting Height mm 85-1600 90-1600 90-1600 90-1500 95-2500 95-3000
Fork Length mm 800 900 900 900 900 900
Fork Width mm 220-750 220-950 220-950 220-950 220-900 220-900
Min. Turning Radius mm 1110 1250 1250 1250 1250 1250
Overall Length mm 1280 1380 1380 1380 1340 1340
Overall Width mm 800 1000 1000 1000 950 950
Overall Height mm 1980 2100 2100 2100 1810 2060
Net Weight kg 155 250 260 285 355 370


Specifications of CTY Manual Hydraulic Stacker (duplex mast)

Model CTY1000-25 CTY1000-30
Rated Capacity kg 1000 1000
Load Center mm 400 400
Lifting Height mm 95-2500 95-3000
Fork Length mm 900 900
Fork Width mm 220-900 220-900
Min. Turning Radius mm 1250 1250
Overall Length mm 1340 1340
Overall Width mm 950 950
Overall Height mm 1810 2060
Net Weight kg 355 370
