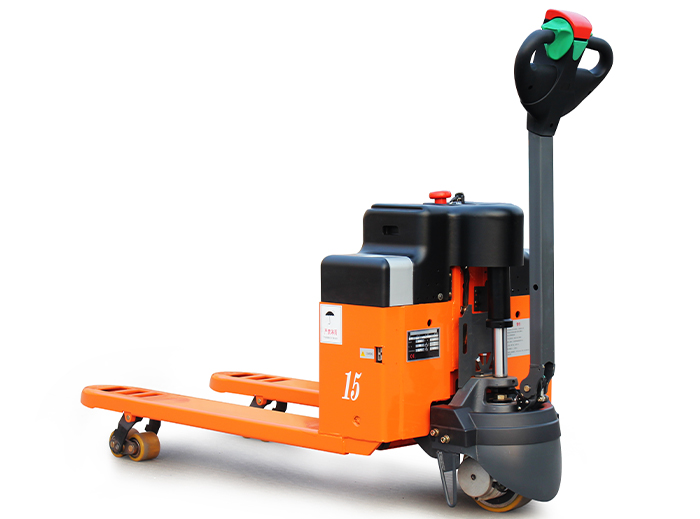

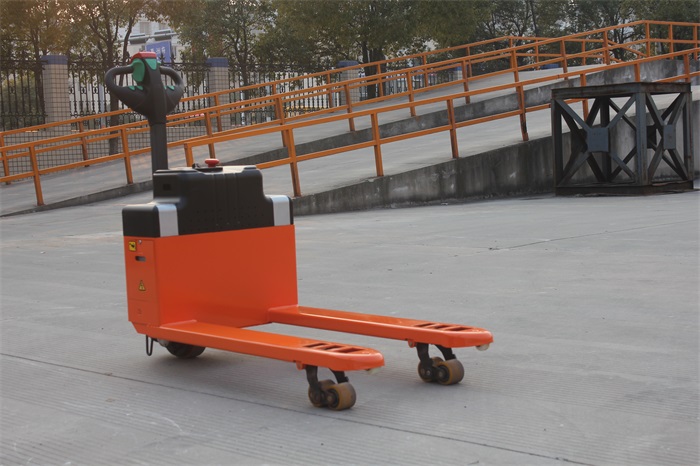

EP15S is the economic electric pallet truck, with very stable quality. With 3000Lbs capacity, is designed for light-duty conditions, widely used in supermarket and beverage industry, loading and unloading on the vehicles, replacing the manual pallet truck.

Equipped with Self-Made DC drive system, 200A 1243 Curtis controller. Integral loading wheel design makes the body compact and stable. 85Ah maintenance free battery and build in charger makes the use and maintenance very convenient. The forks are equipped with guiding wheels, can go into/out of the pallet freely, improve the carrying efficiency. Walk with handle in vertical position is optional, allows to work in a confined place. The standard equipped lifting Limit function can protect hydraulic motor, save energy and battery. Self made handle can be modified for cold store application.

Compared with similar light-duty electric pallet truck, our advantages are following:

1. With Curtis 1243 designed for industry vehicle.
2. Regenerated brake, allow regenerative braking down to zero vehicle speed can increase usable battery energy and reduces motor heating.
3. Maintain: An integral Fault LED flashes helpful error code information.
4. Efficiency: Load compensation function providing improved loaded versus unload speed regulation by compensating for losses in the armature and improve the utilization rate of battery, reduce the wire heating and improve the safety of the wire.
5.Convenient:allow four user selectable vehicle operating profiles ,each profile has separate driving current limits, brake current limits, acceleration rates and maximum speeds.
6. Chassis: Designing and manufacturing as traditional Electric Pallet Truck chassis; Process holes after welding; Lifetime up to 10 years.
7. Safety: Ramp restraint: provides automatic electronic braking that restricts vehicle movement while in neutral; Meets EEC fault detection requirement; Emergency reverse feature causes quick vehicle reversal upon activation by controller.
8. Use traditional DC motor not permanent magnet motor, strong reliability.

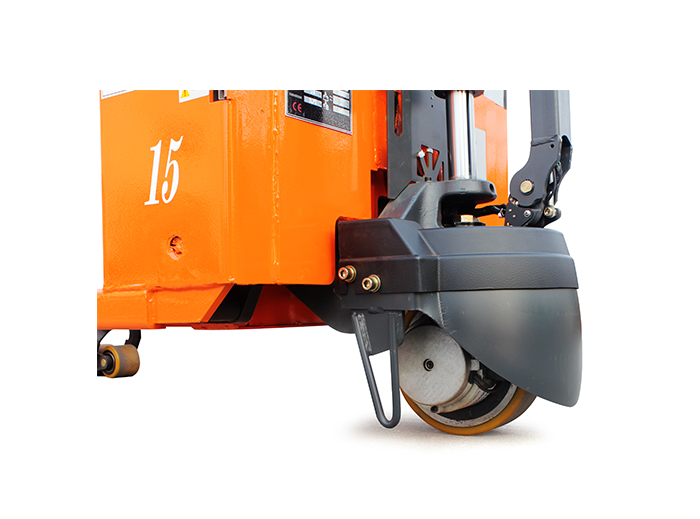

9. Added with Integral loading wheel design, makes the body compact and stable
10. Use big current controller, higher allocation than other similar products
11. Rational body design, convenient for maintenance and repair
12. Reliable quality with low price, low energy cost
