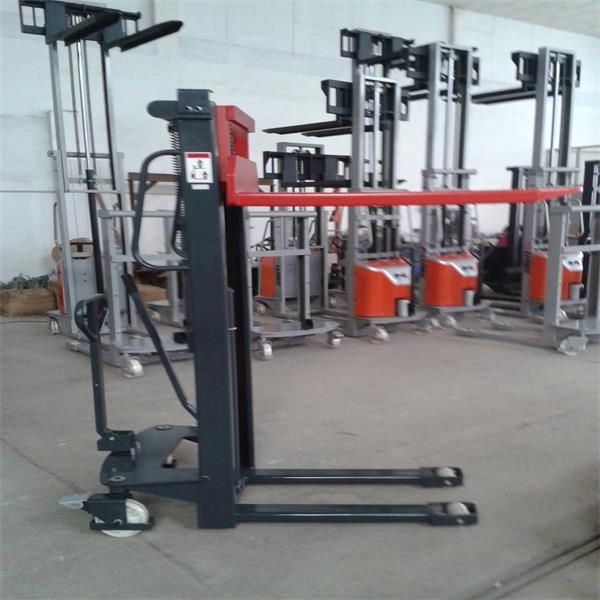

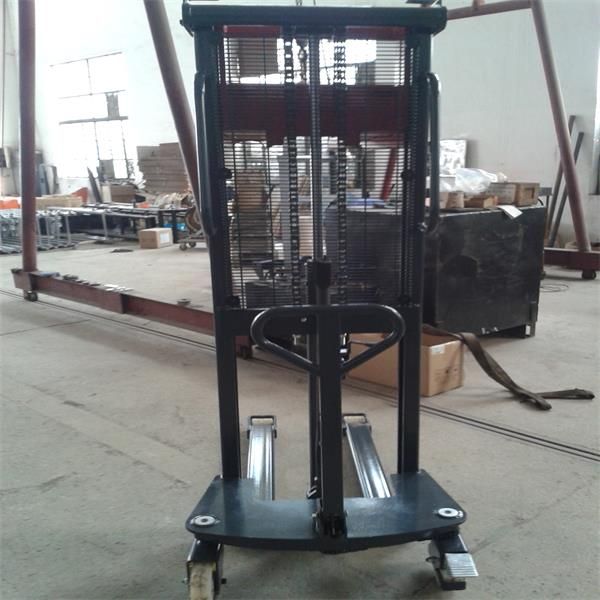

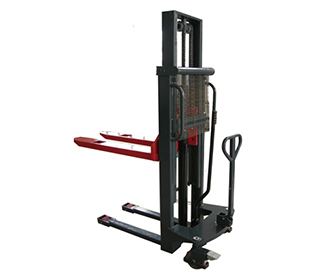

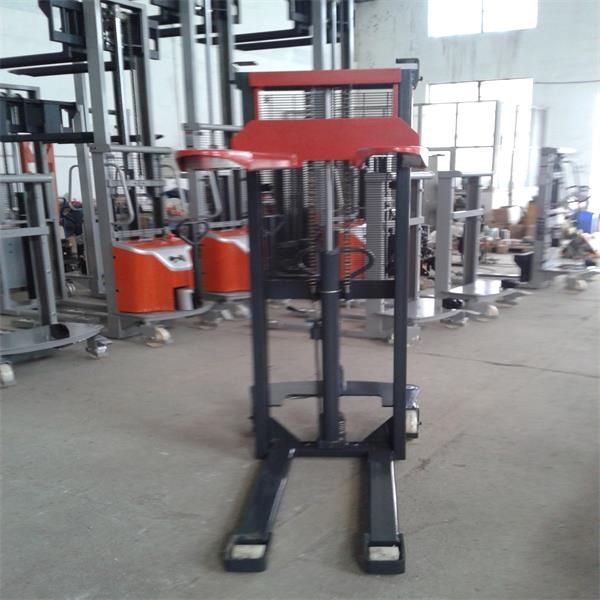

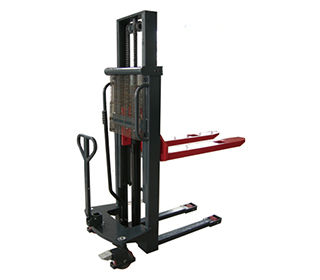

Name:HPB Bidirectional Manual Hydraulic Stacker
Model:HPB
Product Introduction:This stacker has hand-operated and labor-saving structure, equipped with adjustable cargo forks with adjustable width range: 132mm-690mm. Its door frame adopts stable heavy "C" steel.

Features:

1. The door frame adopts heavy "C" steel, with stable structure.

2. The unique hand-operated and labor-saving structure makes lifting faster and safer. High sensitivity, very easy to operate.

3. Be equipped with adjustable cargo forks with adjustable width range: 132mm-690mm. Two braking devices are used on the drive wheel.

4. Adopts light compact design, simple and flexible handle operation and transportation dexterity.

5. Be suitable for the hypermarket, production workshop, warehouse storage, narrow space, station, wharf, airport, etc, especially suitable for fire, explosion-proof requirements of the site use, such as printing workshop, all kinds of oil depot, chemical warehouse, etc.

Model HPB1016 HPB1025 HPB1516 HPB1525
Capacity (kg) 1000 1000 1500 1500
Load Center C (mm) 585 585 585 585
Max.Fork Height H (mm) 1600 2500 1600 2500
Min.Fork Height h (mm) 88 88 88 88
Fork Length L (mm) 1150 1150 1150 1150
Fork Width D (mm) 160 160 160 160
Overall Fork Width W(mm) 540 540 540 540
Lifting Height Per Stoke (mm) 28 28 28 28
Ground Clearance X (mm) 24 24 24 24
Min.Turning Radius(outside) (mm) 1086 1086 1100 1100
Front Load roller (mm) 80*70 80*70 80*70 80*70
Steering Wheel (mm) 150*50 150*50 180*50 180*50
Overall Length A (mm) 1604 1604 1665 1665
Overall Width B (mm) 760 760 720 720
Overall Height F (mm) 2010 1960 2010 2010
Net Weight (kg) 230 340 260 360
