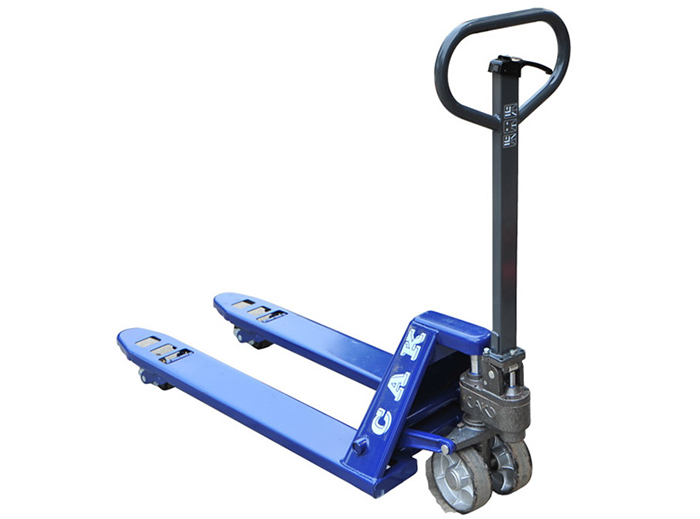

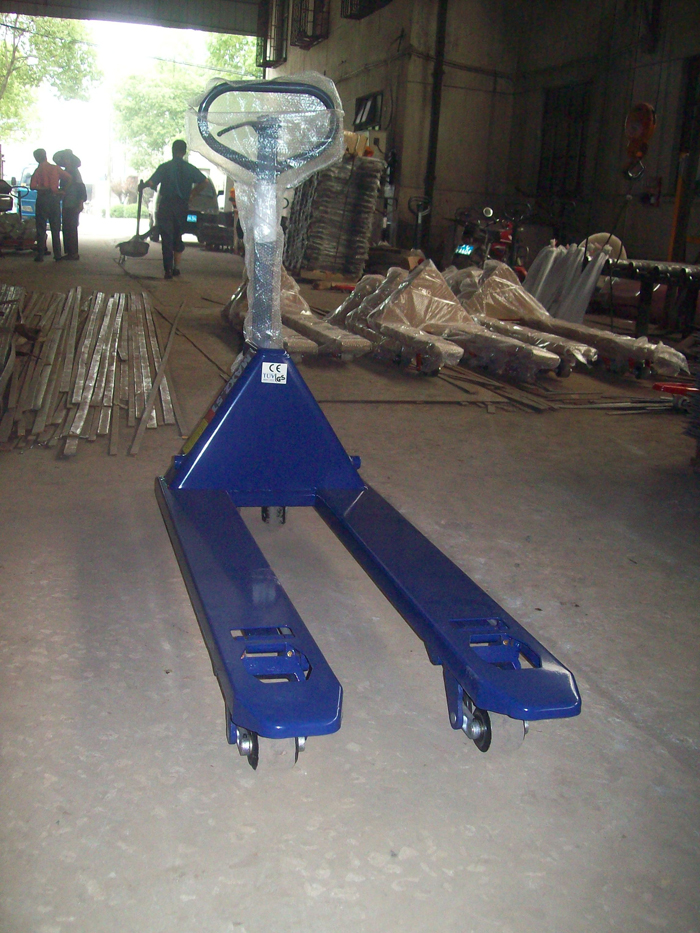

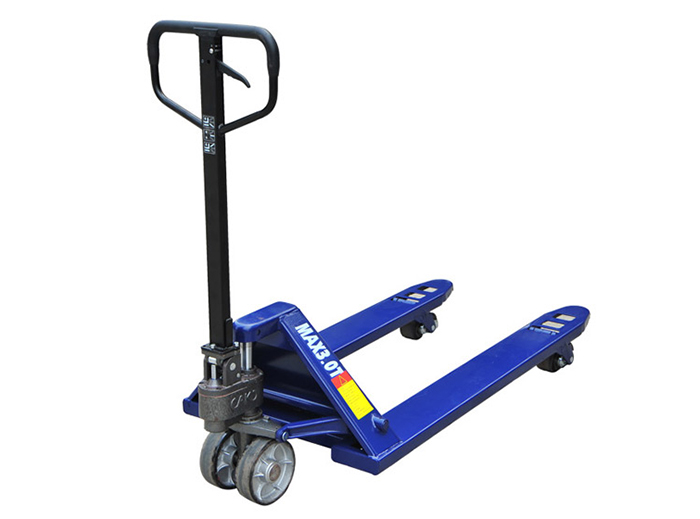

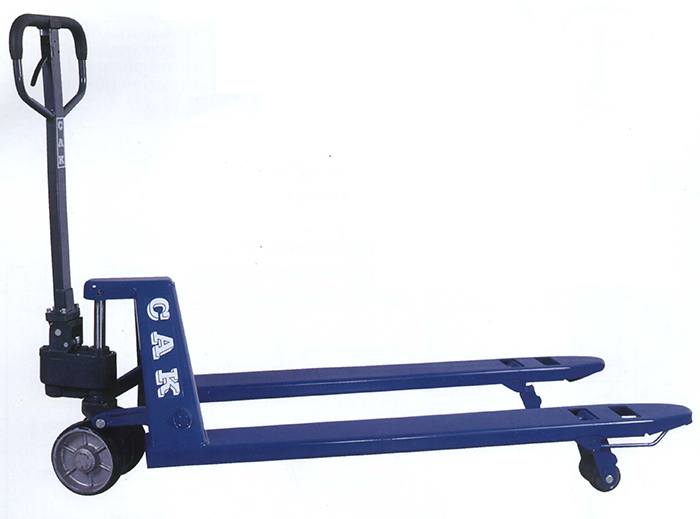

Name:CAK sereis Hand Pallet Truck
Model:CAK
Product Introduction:The unique design combines both the lifting and stacking function. Enable one person to handle difficult lifting and moving jobs. Collapsible foot pedal ensures lifting movement comfortably and smoothly.

An economic alternative to the CAK, the CAK Transpallet Pallet Truck features a quality

* German design pump for long life and easy field servicing

* Durable, versatile and easy to use

* the CAK features an ergonomic design that reduces operator fatigue and downtime

* A 200 degree handle pivot provides exceptional maneuverability in compact areas and comes with standard polyurethane wheels and rollers for rolling ease

*CAK features a powder coat finish, robotic welds throughout, and grease fittings at all pivot points for easy maintenance

* This CAK can have 3 years warranty, the pump can be black color

Model

CAK20

CAK25

CAK30

CAK20W

CAK20L

Capacity Q

kg

2000

2500

3000

2000

2000

Min.fork height h

mm

85

75

85

75

85

75

75/85

Max.fork height h1

mm

200

190

200

190

200

190

190/200

Steering wheel

mm

Φ200x50

Φ180x50

Φ200x50

Φ180x50

Φ200x50

Φ180x50

Φ180x50/Φ200x50

Load roller Single

mm

Φ82x93

Φ74x93

Φ82x93

Φ74x93

Φ82x93

Φ74x93

Φ74x93/Φ82x93

Load roller Tandem

mm

Φ82x70

Φ74x70

Φ82x70

Φ74x70

Φ82x70

Φ74x70

Φ74x70/Φ82x70

Size of fork e*s

mm

160x50

160x60

160x50

160x60

Width overall forks B *1

mm

450/520/540/685

838

540/685

Fork length I *2

mm

800/900/1000/1100/1150/1220

800/900/1100/1150/1220
