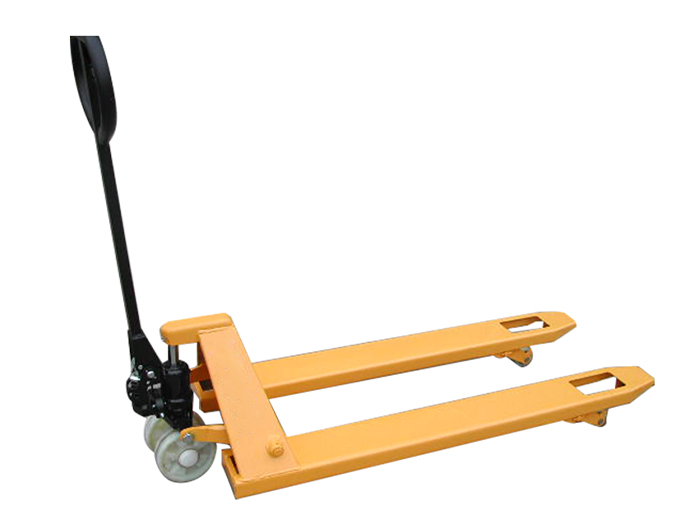

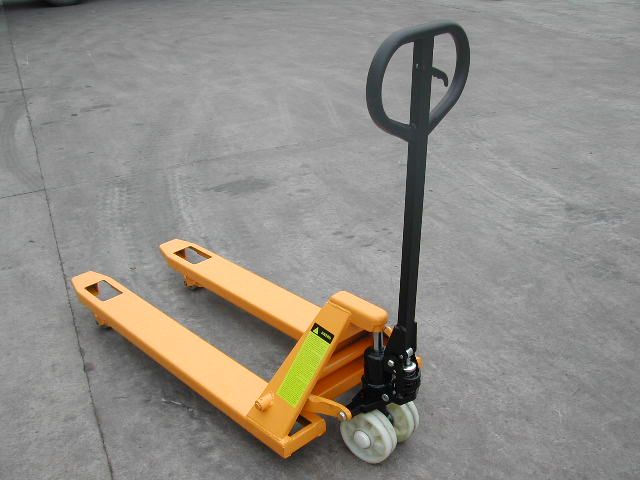

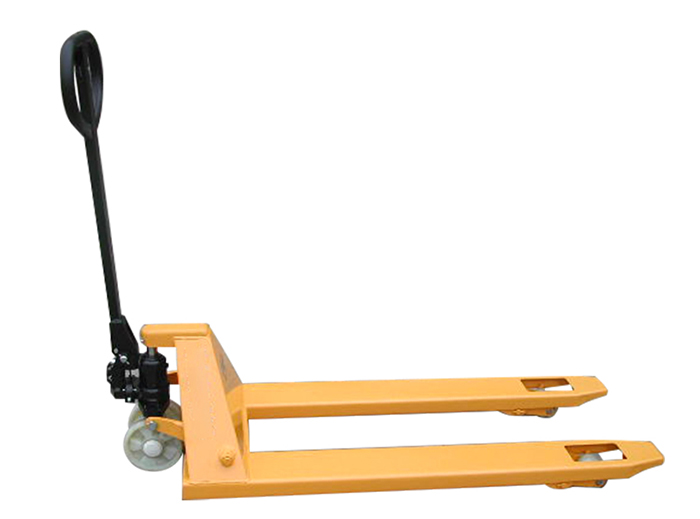

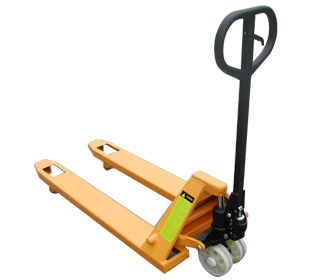

Name:DB(OKII) sereis Hand Pallet Truck
Model:DB(OKII)
Product Introduction:Quality engineered for strength, dependability and long life. Standard models come with a standard capacity of 2000 Kg.

Features

1. An economic truck for convenient wide use

2. Durable and Economical,

3. Self-contained hydraulic pallet truck.

4. Heavy-gauge steel channel frame with 3.3mm reinforced tapered steel forks designed for smooth pallet entry and exit.

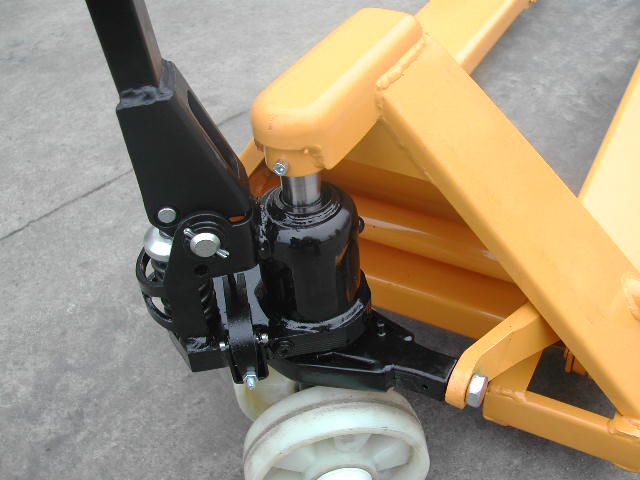

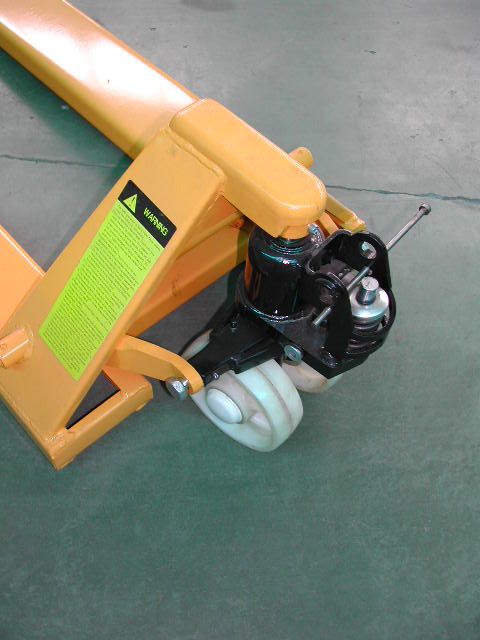

5. Premium hydraulic pump with spring-loaded, safety loop handle has a three-position fingertip control (raise/lower/neutral) for fast lifting and efficient moving.

Model

DB168

DB20

Lifting Capacity

kg

1680

2000

Lowered Fork Height H1

mm

75

85

75

Max Height of ford H2

mm

190

195

185

Lifting Height h

mm

115

110

110

Lenght of Forks L1

mm

1150

800/900/1070/1100/1150/1220

Width of Fords B1

mm

150x50

160x60

Load Wheel

Single

mm

Ø73x80

Ø80x93

Ø74*93

Double

mm

Ø73x55

Ø80x70

Ø74*70

Steer Wheel

mm

Ø160x50

Ø200x50

Ø180x50

Overall Dimensions

Length L2

mm

1460

1180/1280/1450/1480/1530/1600

Width W1

mm

520/550

450/520/550/685

Height H

mm

1160

1160

Self Weight

kg

51/55

72-85
