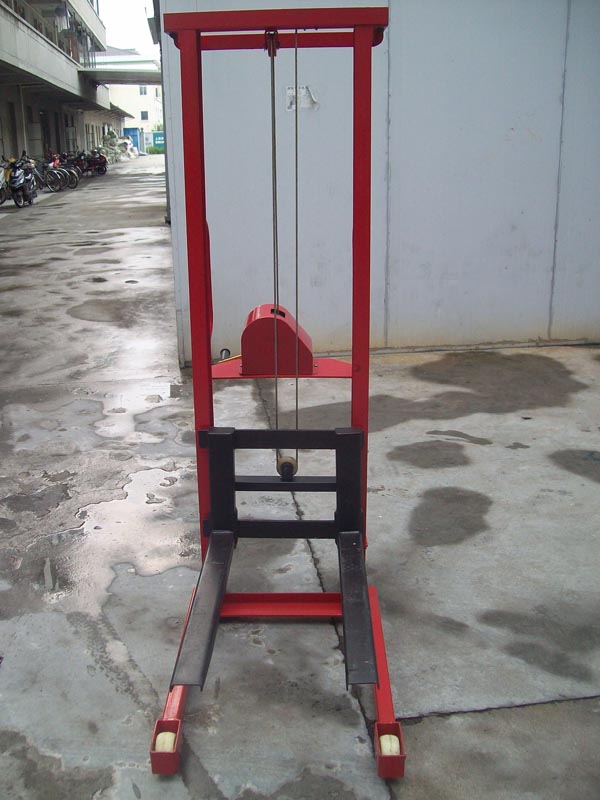

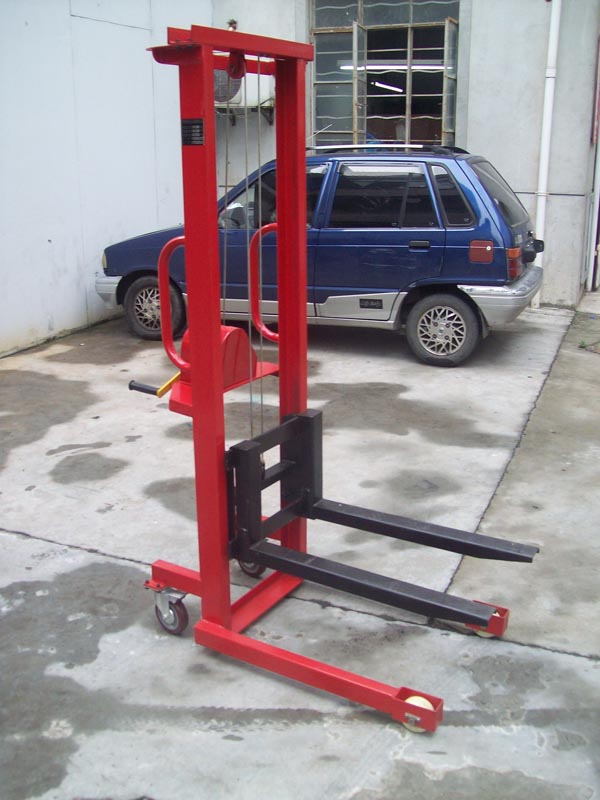

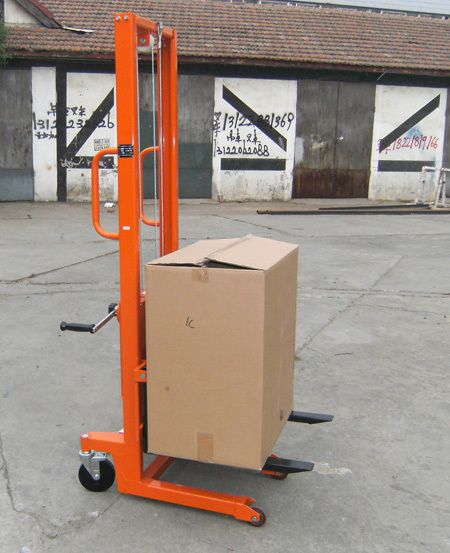

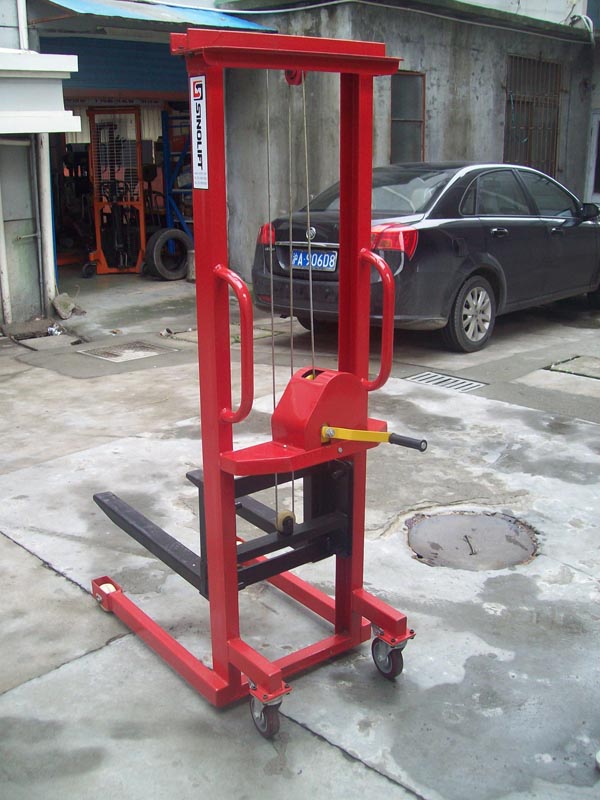

Name:CYL Wirerope Hand Winch Stacker
Model:CYL
Product Introduction:Simple, easy way to lift, lower and transport heavy loads with minimum effort.

Features:

1. Simple, easy way to lift, lower and transport heavy loads with minimum effort.

2. Handle standard 40’’ * 48’’ pallets.

3. Features adjustable width forks and outrigger legs.

4. Low effort hand winch equipped with automatic brake systems and adjustable length handle.

5. Swivel casters feature foot brake to prevent movement.

6. Optional steel platform – Solid steel construction , fits over forks.

7. Conforms  to EN1757-1.

Model CYL350 CYL350W
Load Capacity kg 350 350
Load Center mm 300 400
Lifting Height mm 90-1500 76-1500
Turning Radius mm 790 790
Height\stroke mm 45 45
Handle winch Power kg 7 7
Overall length mm 960 1275
Overall width mm 635 1390
Overall height mm 1855 1855
Fork Leg Length mm 600 915
Fork Leg width mm 60 75
Fork Leg thickness mm 30 45
Fork Outside width mm 140-620 165-760
Straddle height mm 90 76
Front Wheel mm φ82*55 φ82*55
Rear Wheel mm φ150*40 φ150*40
Service weight kg 75 113
