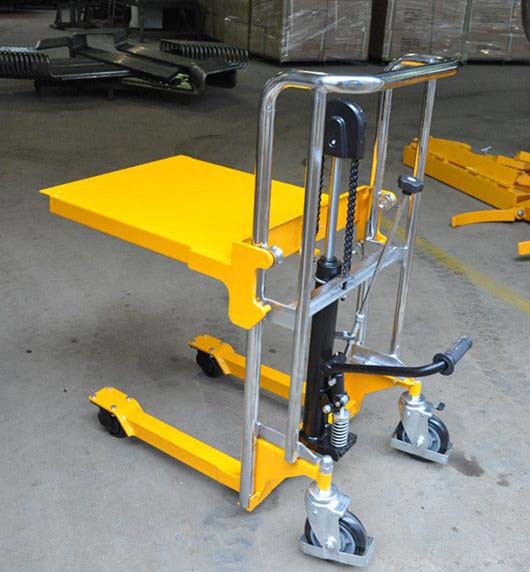

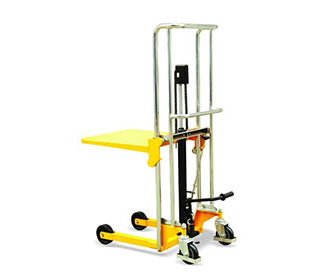

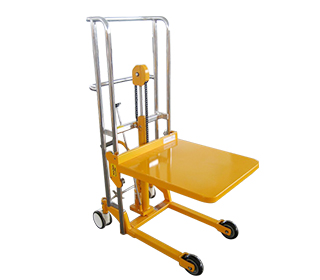

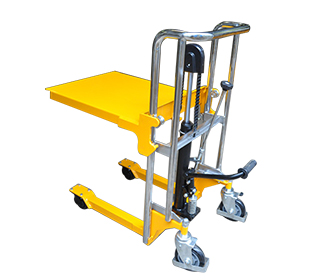

Name:PS Hand hydraulic stacker
Model:PS
Product Introduction:Special design combines lifting, transporting and stacking functions together. With Min. platform height only 85mm. Equipped with a overload protection valve. Hard chromium plated frame. Conforms to En1757-1

Special design combines lifting, transporting and stacking functions togetherRobust construction.

•  Hard chromium plated frame.

•  Effortless Movement.

•  Polyurethane rollers with bearing

•  No-marking castor as standard. Silent castor is optional.

•  Widely used with low platform and various accessories as option.

•  Design of double chain and big wheels can be stable and reliable.

•  Conforms to EN 1757-1.

Model PS0485 PS0412 PS0415
Capacity Q kg 400 400 400
Max. height h1 mm 955 1425 1725
Lifting height h3 mm 765 1115 1415
Min.platform height h13 mm 85 85 85
Max.platform height h3+h13 mm 850 1200 1500
Max.Width mm 600 600 600
Platform length mm 650 650 650
Platform width mm 576 576 576
Size of fork e*s mm 650x110 650x110 650x110
Steering roller mm Φ127x40 Φ127x40 Φ127x40
Load roller mm Φ75x40 Φ75x40 Φ75x40
Weight kg 75 81 91
