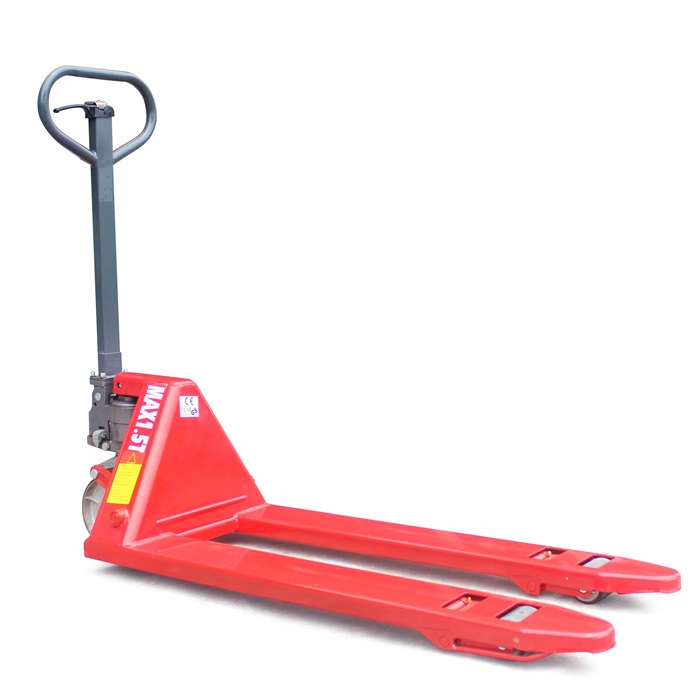

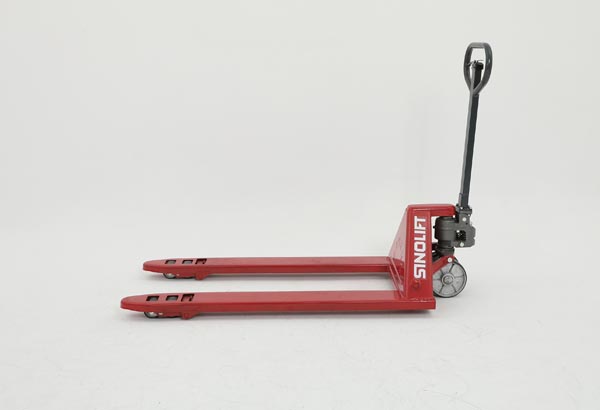

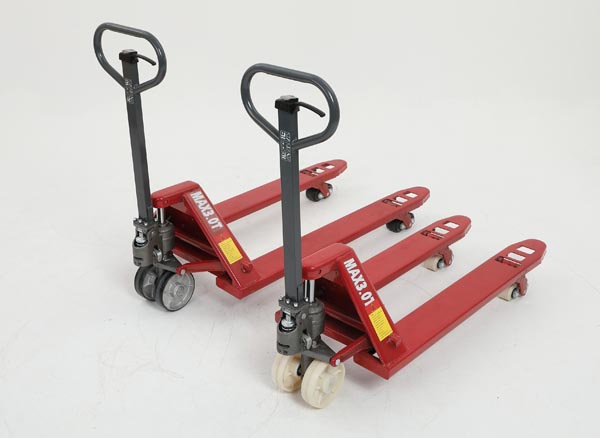

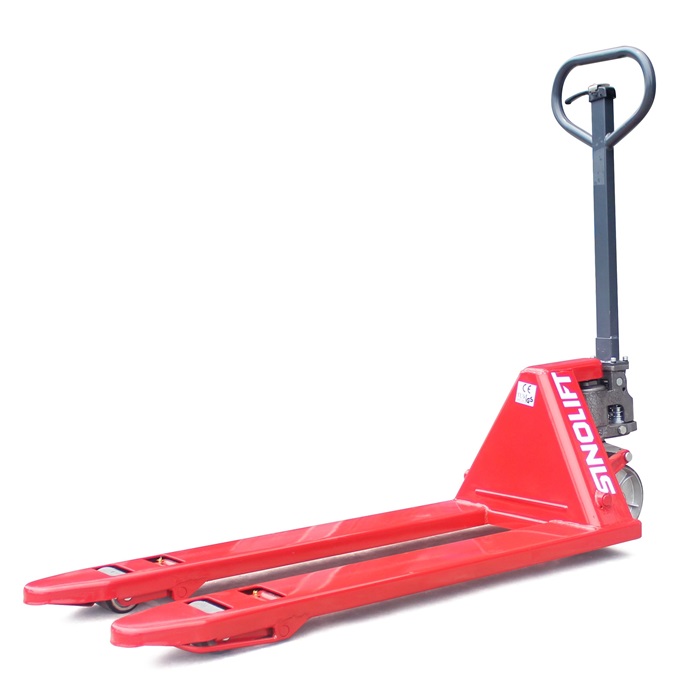

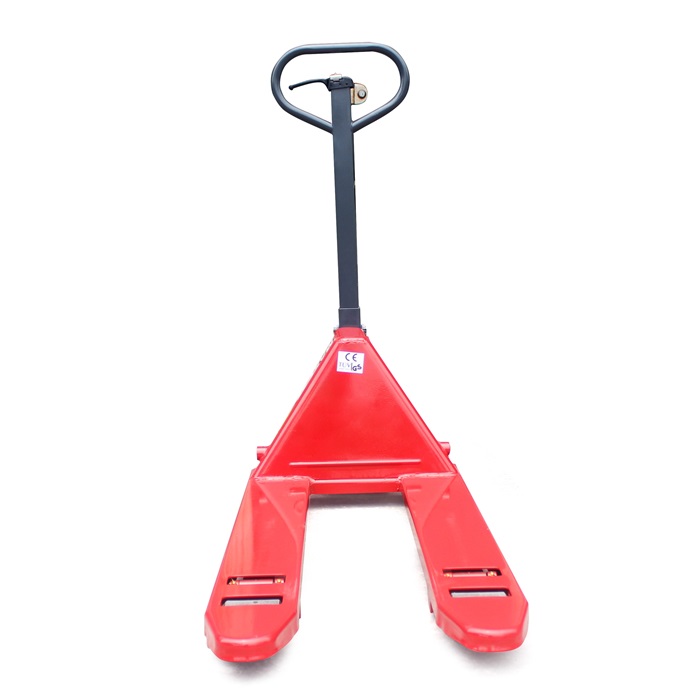

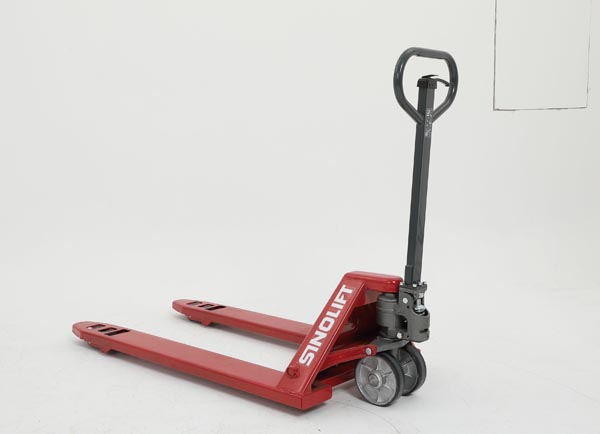

Name:NA Hand pallet Truck
Model:NA Hand pallet Truck
Product Introduction:The hydraulic system on this pallet jack is the result of years of research and development, including a load limiter that prevents premature wear resulting from overloading. A special design of lowering valve permits gentle lowering of heavy loads. No moisture can get into the unit and it is leak proof.

Quality engineered for strength, dependability and long life. SINOLIFT's choice as the pallet jack on the market today. Standard models come with a standard capacity of 2500 Kg.

The hydraulic system on this pallet jack is the result of years of research and development, including a load limiter that prevents premature wear resulting from overloading. A special design of lowering valve permits gentle lowering of heavy loads. No moisture can get into the unit and it is leak proof.

No foot pedal means extra safety. Neutral allows pumping at the most convenient angle to the operator and free handle movement when the truck is in motion. The handle returns automatically to the vertical position.

All Parts guaranteed for a full year, except where used in Acidic or Alkali Environments.

Features Include:

Safety designed loop handle, includes neutral position, and fingertip release

Spring-o-matic handle self returns

230° pivot action maneuvers in compact area

One piece formed steel "C" channel tapered, reinforced forks

Leak-proof pump assures maintenance-free service

Hard chrome-plated ram and piston

Urethane seals and wipers

Large Steer wheels with "Ball Thrust" steering

Sealed ball bearings throughout

Bearings at all pivot points can be lubricated easily

Tapered fork ends and nylon rollers permit easy entry and exit of pallets

Nylon or Polyurethane wheels and load rollers available

Only 1 snap ring and 4 pins to remove the hydraulic unit

Painted quality safety color after anti-rust treatment



Model NA15/NA20/NA25/NA30
Capacity kg 1500/2000/ 2500/3000
Max.Fork Height (H) mm 95/121/165/195/200
Min.Fork Height   (S) mm 35/51/65/75/80
Fork Length   (L) mm 1150/1220
Overall Fork Width(B) mm 460 520 685
Every Fork Width  (E) mm 153
Load Roller Diameter mm ∮78×70/∮78×100
Nylon/Polyurethane
Steering Wheel Diameter mm ∮200/∮180
Nylon/Polyurethane/Rubber
Net.Weight kg 84 89 92
Quantities/20ft Container pcs 180 174
