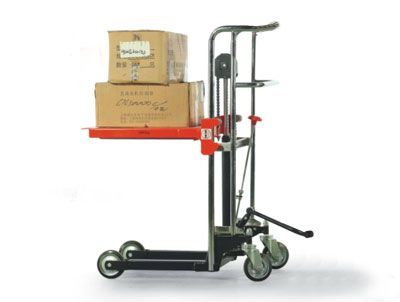

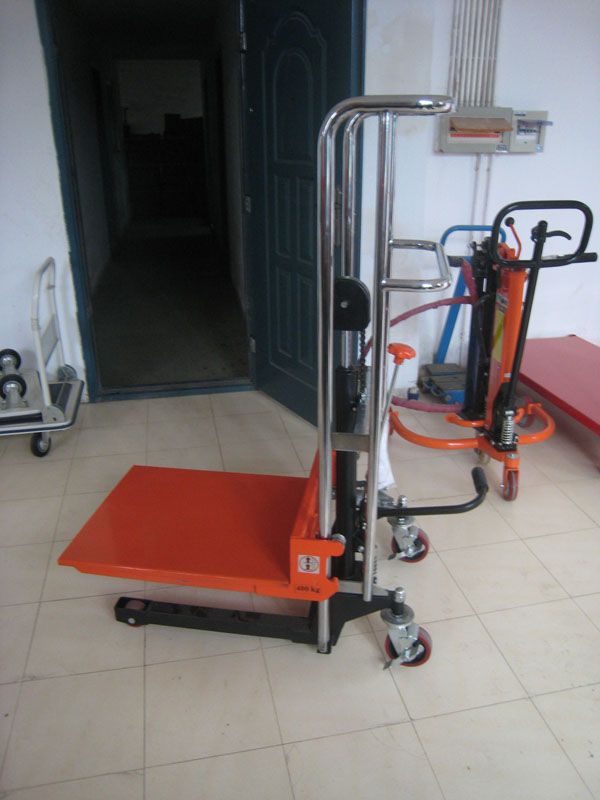

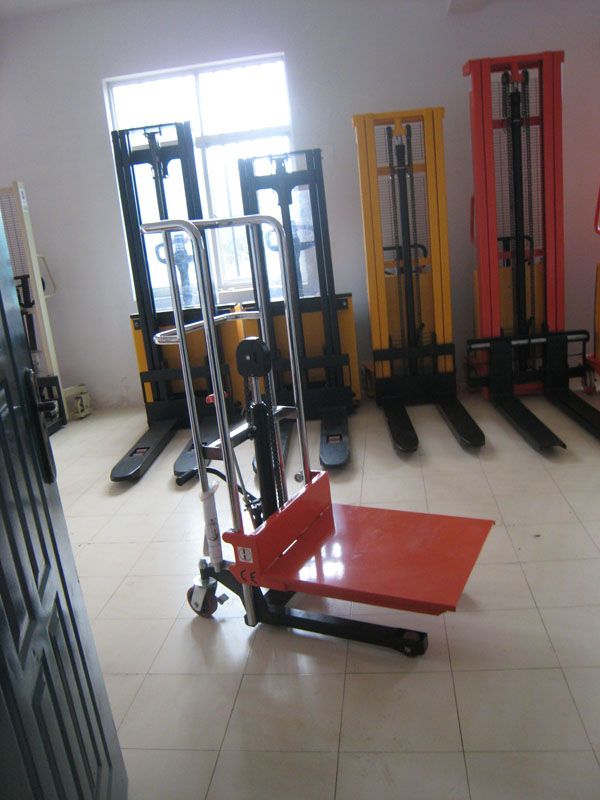

Name:FP Platform Stacker
Model:FP
Product Introduction:Platform Stacker FP0412/FP0485/FP0415 The unique design combine both the lifting and stacking function. Enables one person to handle difficult lifting and moving jobs. Collapsible foot pedal ensures lifting movement comfortably and smoothly. Equipped with a overload protection valve. Hand push drive Hard chromium plated frame. Two frame rollers and two steering rollers ensures a stable and safe operation Conforms to En1757-1

Features:

FP0412/FP0485/FP0415

The unique design combine both the lifting and stacking function.

Enables one person to handle difficult lifting and moving jobs.

Collapsible foot pedal ensures lifting movement comfortably and smoothly.

Equipped with a overload protection valve.

Hand push drive

Hard chromium plated frame.

Two frame rollers and two steering rollers ensures a stable and safe operation

Conforms to En1757-1

Model FP0485 FP0412 FP0415
Capacity Q kg 400 400 400
Max. height h1 mm 980 1330 1630
Lifting height(h3) mm 650 1000 1300
Min.platform height h13 mm 200 200 200
Max.platform height h3+h13 mm 850 1200 1500
Max.Width mm 590 590 590
Platform length mm 650 650 650
Platform width mm 550 550 550
Rear roller mm Φ150x40 Φ150x40 Φ150x40
Load roller mm Φ150x45 Φ150x45 Φ150x45
Weight kg 70 76 86
