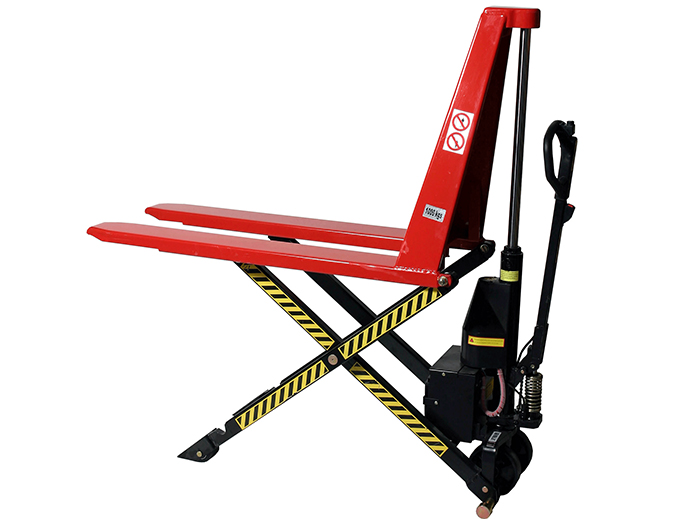

Name：NPHE1000 High Lift Electric Scissor Pallet Jack
Model：NPHE1000

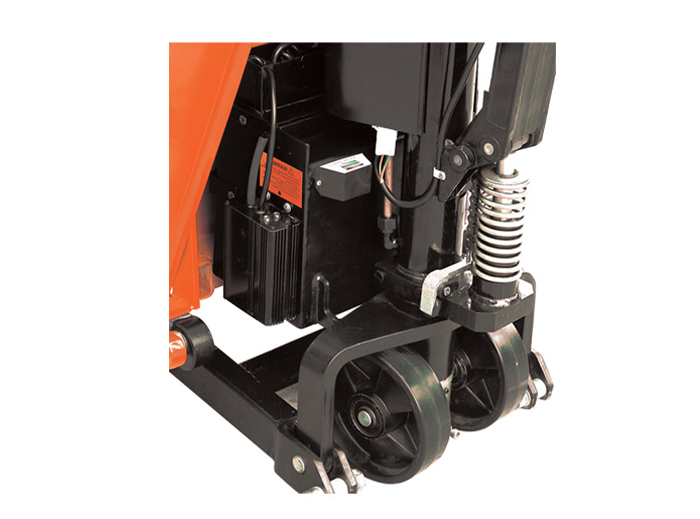

Product Introduction：Easy handling: The compact structure with the battery and power unit positioned between body and lifting cylinder resulting in a low centre of gravity and excellent maneuverability.

Model		NPHE1000
Capacity	(kg)	1000
Lowest Fork Height	(mm)	85
Max. Fork Height	(mm)	800
Fork Length X Fork Width	(mm)	1140X520 or 1140X680
Diameter of front wheel	(mm)	Ø75X50
Diameter of Rear Wheel	(mm)	Ø150X50
Lifting time in Full Range(s)		10/12
Size of Fork	(mm)	162X50
Descending Speed	(m/s)	<0.1
Motor Working Voltage	(v)	12
Battery Volgage	(v)	12
Electricity Volume	(A/h)	63
Working pressure of Pump Station	(Mpa)	15
Imput/output Voltage of Charger	(v)	200-240/12
Service Weight	(kg)	118 / 128
Max. Charging Current of Charger	(A)	10
Packing Details		4pcs/crate, crate size:193X60X72, 108pcs/20"

Model		NPHE1000	NPHE1500
Capacity	(kg)	1000	1500
Lowest Fork Height	(mm)	85	85
Max. Fork Height	(mm)	800	800
Fork Length X Fork Width	(mm)	1140X520 or 1140X680	1100X520 or 1100X680
Diameter of front wheel	(mm)	Ø75X50	Ø75X50
Diameter of Rear Wheel	(mm)	Ø150X50	Ø150X50
Lifting time in Full Range(s)		10/12	18
Size of Fork	(mm)	162X50	162X50
Descending Speed	(m/s)	<0.1	<0.1
Motor Working Voltage	(v)	12	12
Battery Volgage	(v)	12	12
Electricity Volume	(A/h)	63	63
Working pressure of Pump Station	(Mpa)	15	21
Imput/output Voltage of Charger	(v)	200-240/12	115-230/12
Service Weight	(kg)	118 / 128	145 / 155
Max. Charging Current of Charger	(A)	10	10
