Name:PFZ Light Duty Hand Stacker
Model:PFZ
Product Introduction:C-shape portal frame,small size and delicated design can be perfect for use in narrow space. High quality oil cylinder with long service life,high capacity,reliable operation. Widely used in printing packaging plastic pharmaceuticals and other particular industry with 4 universal wheels and various optional accessories for special purpose.

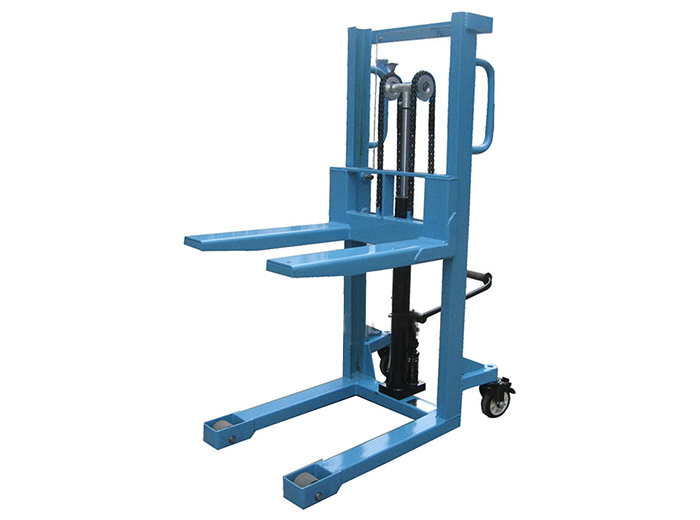

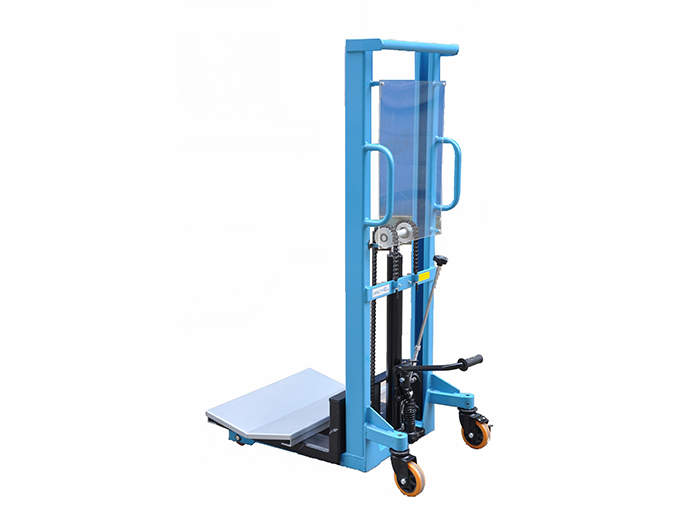

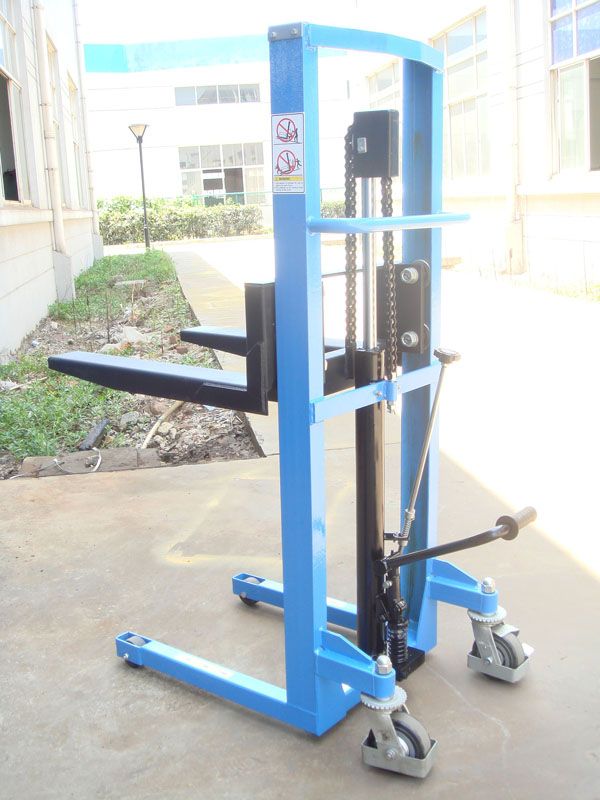

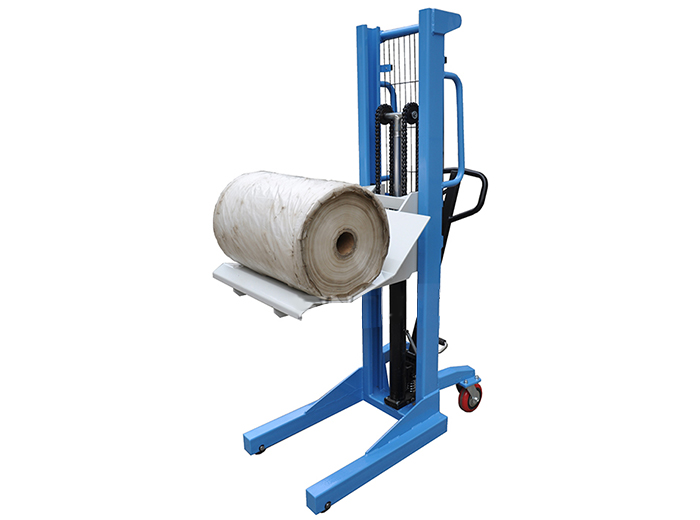

PFZ Series Light Duty Hand Stacker

C-shape portal frame,small size and delicated design can be perfect for use in narrow space.

High quality oil cylinder with long service life,high capacity,reliable operation.

Widely used in printing packaging plastic pharmaceuticals and other particular industry

with 4 universal wheels and various optional accessories for special purpose.

PFZ Series PFZ6150 PFZ8150
Rated capacity kg 600 800
Operation mode Manual Manual
Load center mm 300 300
Fork size(L*W) mm 700*120 700*120
Max.fork Height mm 1200(1500) 1200(1500)
Min.fork Height mm 90 90
Front wheel diameter mm 80 80
Rear wheel diameter mm 150 150
Overall size(L*W*H) mm 980*600*1500 980*620*1580
Net weight kg 115 128
